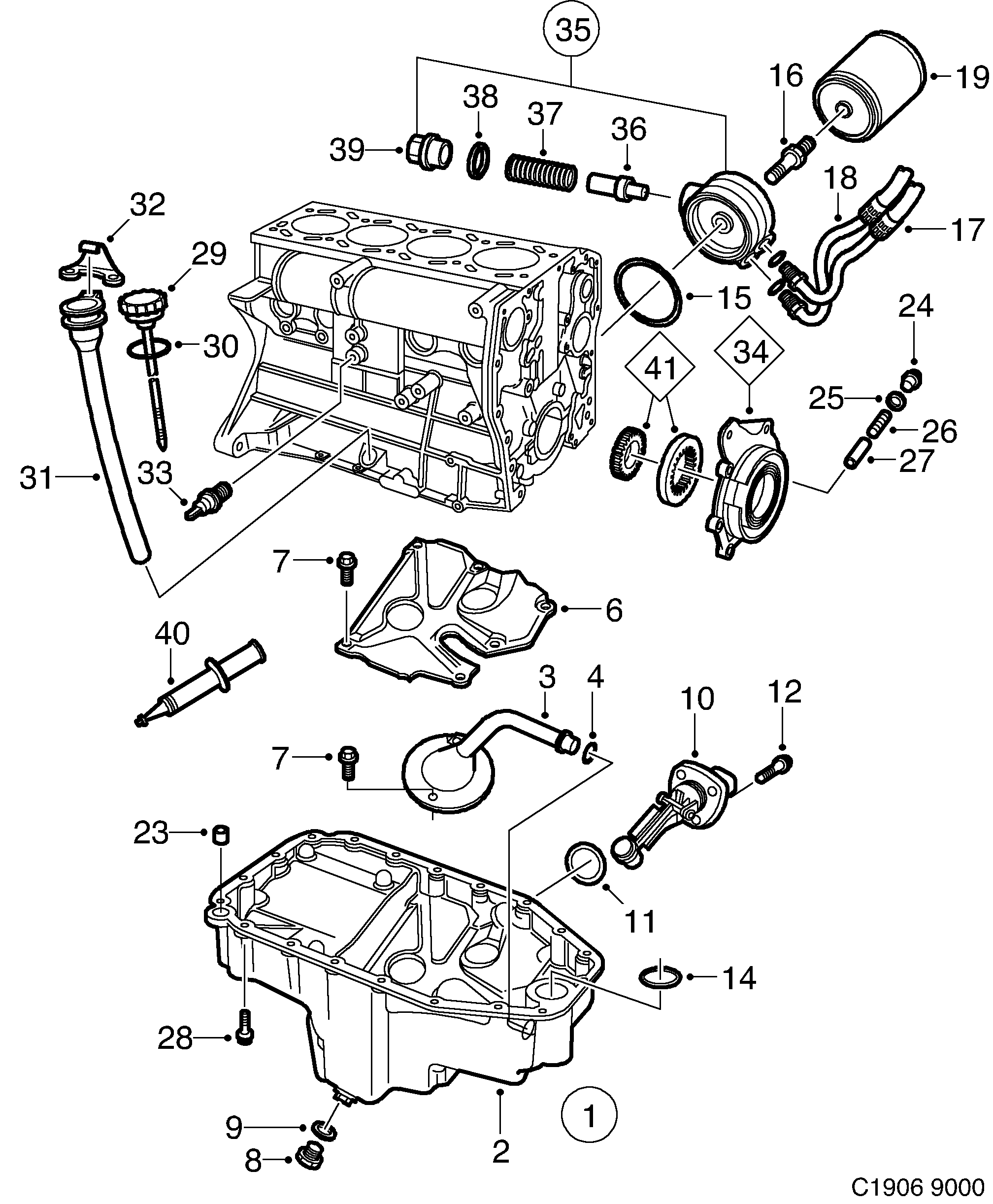

500: Engine - Lubricating system - Oil pump, oil filter,
(1990 - 1993 | B234I) | For 9000 (1990)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 9144056 30592121 Sump | 1 | |||
| 2 | 9115015 Sump | 1 | |||
| 3 | 9109901 Tube 1990-1990 | 1 | |||
| 4 | 2196772 9138009 O-ring 1990-1991 | 1 | |||
| 6 | 9118480 Protection | 1 | |||
| 7 | 8125015 7985930 Screw | 8 | |||
| 8 | 7563042 Plug 1990-1990 | 1 | |||
| 9 | 7522709 Gasket 1990-1990 | 1 | |||
| 10 | 9390154 93167188 Sensor | 1 | |||
| 11 | 7970361 O-ring (8046625) | 1 | |||
| 12 | 8125031 7974694 Screw | 3 | |||
| 14 | 8109688 30544348 O-ring 1990-1991 | 1 | |||
| 15 | 8047128 O-ring | 1 | |||
| 16 | 8348609 Junction pipe For cars without oil cooler. | 1 | |||
| 16 | 9113267 Junction pipe 1990-1991 | 1 | |||
| 17 | 1 | ||||
| 18 | 1 | ||||
| 19 | 9309576 93186554 Filter | 1 | |||
| 23 | 8346470 Guide | 1 | |||
| 24 | 7508955 Plug | 1 | |||
| 25 | 9355389 Gasket | 1 | |||
| 26 | 9309998 Spring | 1 | |||
| 27 | 9109067 Piston | 1 | |||
| 28 | 8125189 Screw | 19 | |||
| 29 | 9117466 Dipstick I | 1 | |||
| 29 | 8787731 Dipstick TURBO | 1 | |||
| 30 | 9361544 55557303 Ring gland | 1 | |||
| 31 | 7481617 Tube I | 1 | |||
| 31 | 8787707 Tube TURBO | 1 | |||
| 32 | 9113275 8789638 Bracket 1990-1990 | I | 1 | |||
| 32 | 8789638 Bracket 1990-1990, LHD | I | 1 | |||
| 32 | 8787723 9125899 Bracket TURBO | 1 | |||
| 33 | 9112459 30520357 Engine oil pressure sensor | 1 | |||
| 34 | 1 | ||||
| 35 | 9115296 Intermediate section | 1 | |||
| 36 | 9301540 55557392 Thermostat | 1 | |||
| 37 | 9300591 Spring | 1 | |||
| 38 | 9109182 30520353 Gasket | 1 | |||
| 39 | 7520372 Plug | 1 | |||
| 40 | 90297970 Flange sealant 50 ML | X | |||
| 41 | 8817561 Pump kit 1990-1991 | 1 | |||
8819138 Service kit TURBO | X | ||||
7496011 Service kit I | X | ||||
