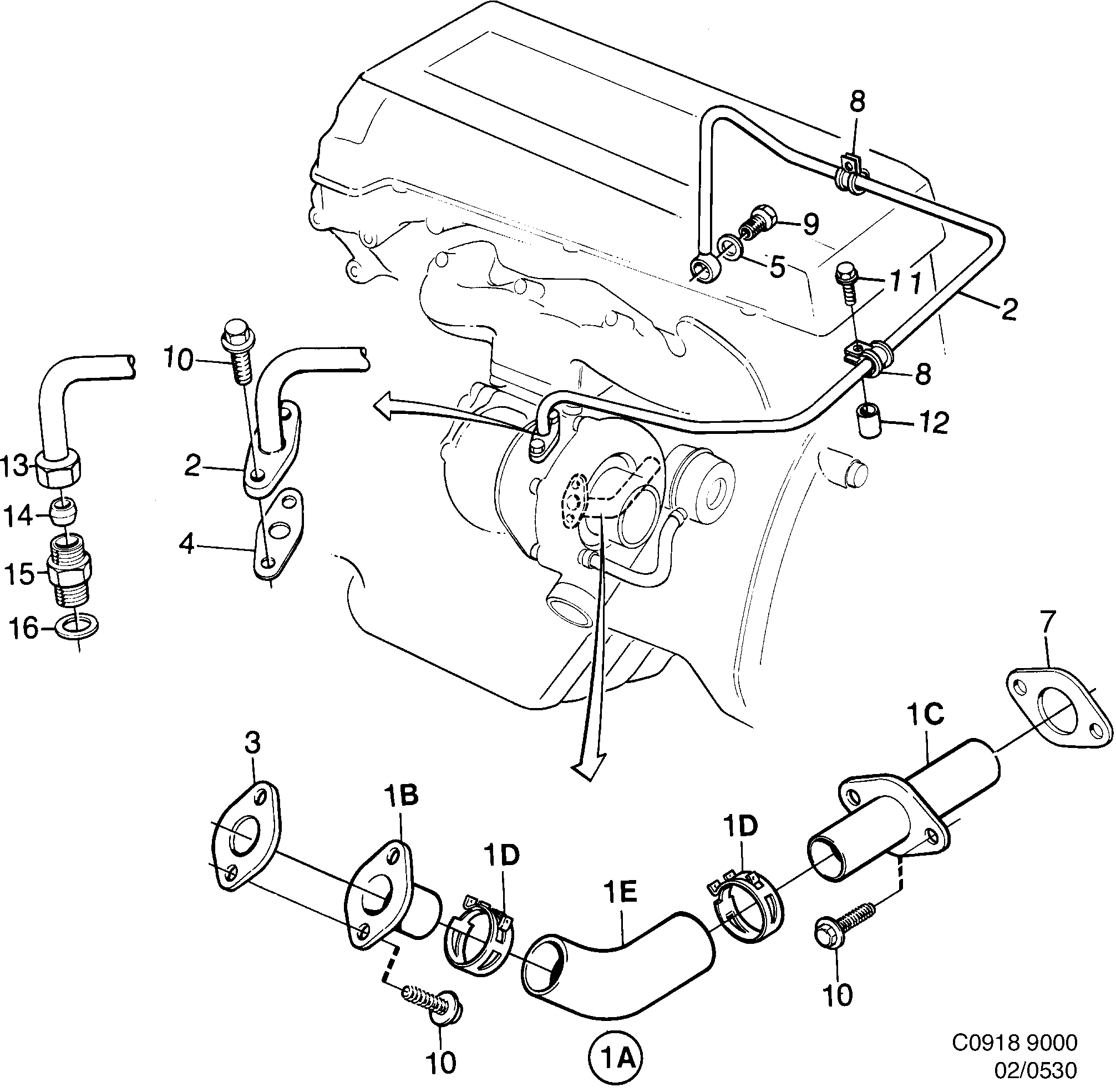

530: Engine - Lubricating system - Oil pipe
(1990 - 1993) | For 9000 (1990)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1A | 7480932 Oil pipe TE05 | 1 | |
| 1B | 7481062 Tube TE05 | 1 | |
| 1C | 7481088 Tube TE05 | 1 | |
| 1D | 7586050 Clamp TE05 | 1 | |
| 1E | 9118506 Hose TE05 | 1 | |
| 1B | 9114406 Tube T25 | 1 | |
| 1C | 9114414 Tube T25 | 1 | |
| 1D | 8787061 Spring clamp T25 | 2 | |
| 1E | 9114521 Hose T25 | 1 | |
| 2 | 7585011 Tube TE05 | 1 | |
| 2 | 9114505 30520399 Tube T25 | 1 | |
| 3 | 7518970 Gasket TE05 | 1 | |
| 3 | 9117599 Gasket T25 | 2 | |
| 4 | 7507700 Gasket | 1 | |
| 5 | 8124141 92150435 Gasket | 2 | |
| 7 | 7566474 Gasket | 1 | |
| 8 | 1754506 Clamp TE05 | 2 | |
| 8 | 7985112 Clamp T25,(3212586) | 2 | |
| 9 | 8123903 92150977 Banjo screw | 1 | |
| 10 | 8125163 Screw | 6 | |
| 11 | 7970288 Screw | 1 | |
| 11 | 7971757 7528953 Screw | 1 | |
| 12 | 9390121 Spacer | 1 | |
| 13 | 8145534 Fitting nut T25 | 1 | |
| 14 | 8132219 Ferrule T25 | 1 | |
| 15 | 8131963 Nipple T25 | 1 | |
| 16 | 8124133 11066422 Gasket T25 | 1 |
