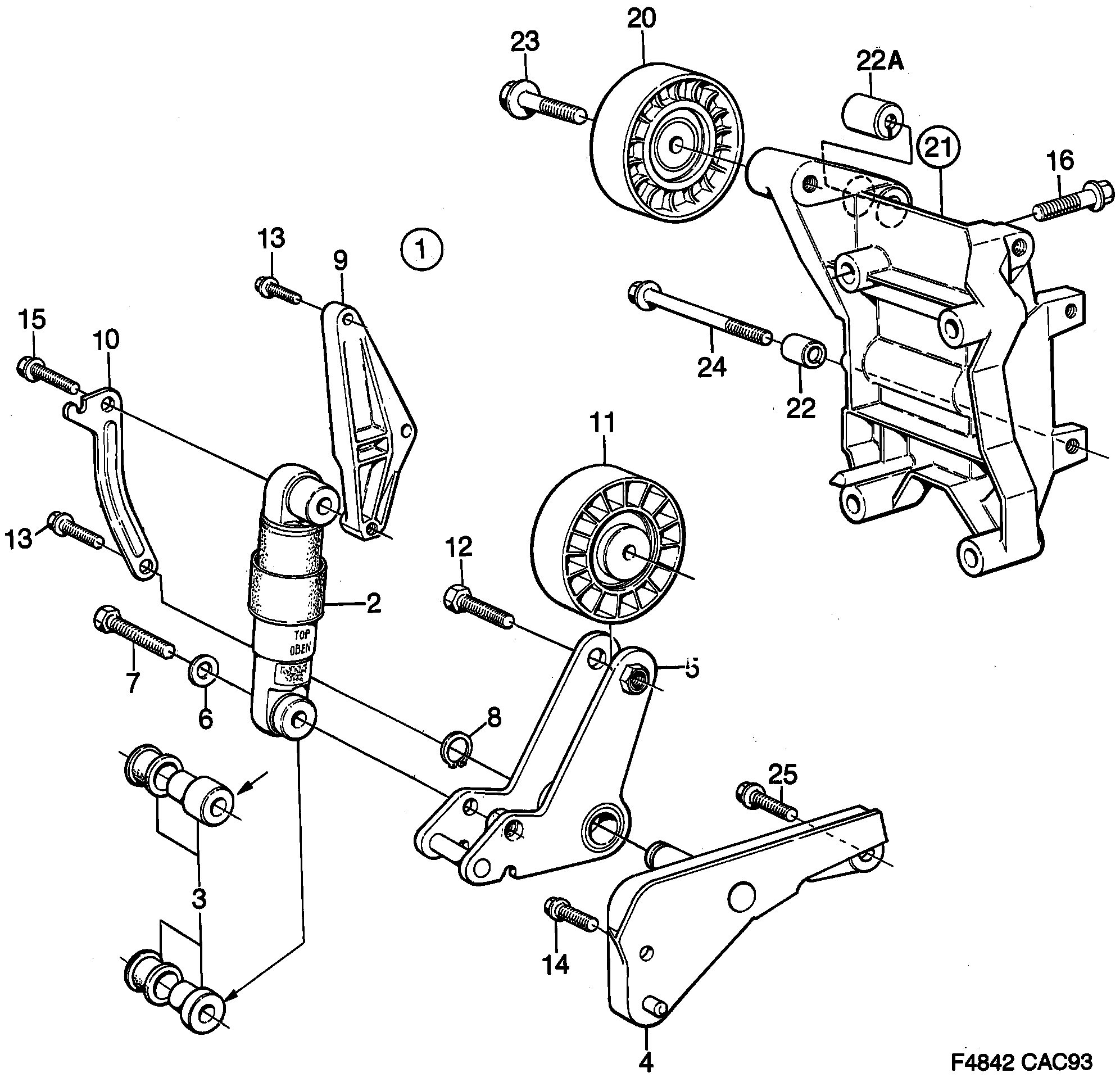

350: Steering - Steering assembly - Belt tensioner
(1990 - 1993 | B234I) | For 9000 (1990)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4029609 4901443 Belt tensioner | 1 | |||
| 2 | 4028064 4901419 Damper | 1 | |||
| 3 | 4029989 4901476 Bushing kit | 1 | |||
| 4 | 4028049 4358149 Foundation platform -1992 | 1 | |||
| 5 | 4029799 Tensioning arm | 1 | |||
| 6 | 8029985 92153033 Washer 1990-1992 | 1 | |||
| 7 | 8083941 Screw | 1 | |||
| 8 | 8047748 Retaining ring | 1 | |||
| 9 | 4027686 Bracket | 1 | |||
| 10 | 4027694 Brace | 1 | |||
| 11 | 4029930 Tension pulley | 1 | |||
| 12 | 4029864 Screw | 1 | |||
| 13 | 7978208 92150014 Screw | 3 | |||
| 14 | 7978232 Screw | 2 | |||
| 15 | 7978257 92150019 Screw | 1 | |||
| 16 | 7978257 92150019 Screw | 4 | |||
| 20 | 7592017 4901625 Tension pulley | 1 | |||
| 21 | 7593049 Bracket | 1 | |||
| 22 | 7593072 Bushing | 2 | |||
| 22A | 7593080 Bushing | 1 | |||
| 23 | 7978299 Screw | 1 | |||
| 24 | 2 | ||||
| 25 | 8056194 90511105 Screw | 1 | |||
