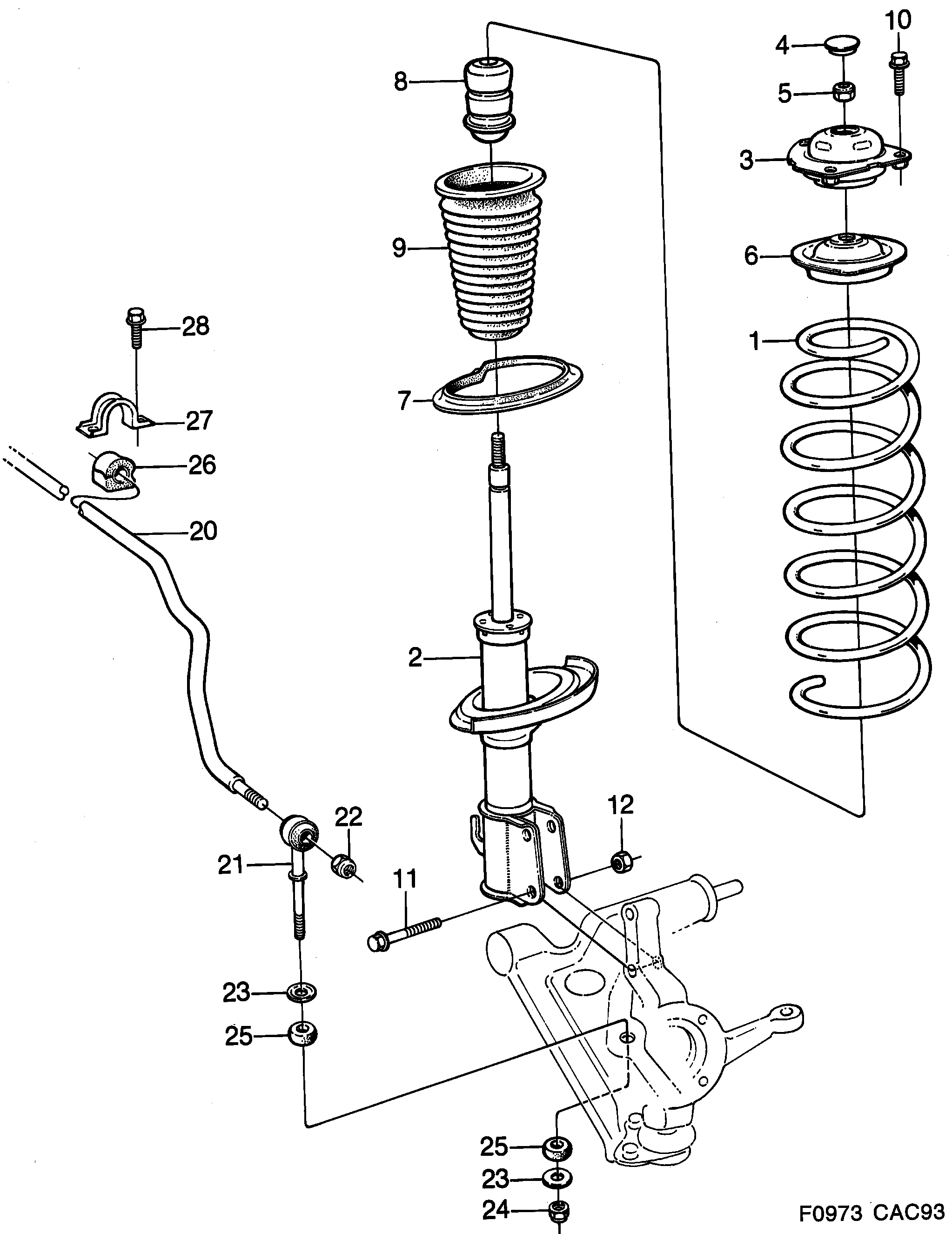

110: Suspension system - Front suspension

(1990 - 1991) | For 9000 (1990)

Pos.	Part No.	Description	Usage	Qty
1	8971814 Spring 1990-1990 \| I \| Cars without AC and sun roof. light blue or beige ALT 1 red/red ALT 2	Spring	1990-1990 I Cars without AC and sun roof. light blue or beige ALT 1 red/red ALT 2	2
1	8971822 4193389 Spring B202I \| If the car has SR, ABS, air-bag and EAS, choose spring 8971806 brown or purple ALT 1 red/yellow ALT 2 \| + AC	Spring	B202I If the car has SR, ABS, air-bag and EAS, choose spring 8971806 brown or purple ALT 1 red/yellow ALT 2 + AC	2
1	8971822 4193389 Spring B202I \| If the car has SR, ABS, air-bag and EAS, choose spring 8971806	Spring	B202I If the car has SR, ABS, air-bag and EAS, choose spring 8971806	2
1	8971822 4193389 Spring B202TURBO \| If the car has SR, ABS, air-bag and EAS, choose spring 8971806	Spring	B202TURBO If the car has SR, ABS, air-bag and EAS, choose spring 8971806	2
1	8971822 4193389 Spring B234I \| If the car has SR, ABS, air-bag and EAS, choose spring 8971806	Spring	B234I If the car has SR, ABS, air-bag and EAS, choose spring 8971806	2
1	8971806 Spring B202I \| If the car has SR, ABS, air-bag and EAS, choose spring 8971830 orange or pink ALT 1 red/blue ALT 2 \| + AC	Spring	B202I If the car has SR, ABS, air-bag and EAS, choose spring 8971830 orange or pink ALT 1 red/blue ALT 2 + AC	2
1	8971806 Spring B202TURBO \| If the car has SR, ABS, air-bag and EAS, choose spring 8971830 \| + AC	Spring	B202TURBO If the car has SR, ABS, air-bag and EAS, choose spring 8971830 + AC	2
1	8971806 Spring B202TURBO \| If the car has SR, ABS, air-bag and EAS, choose spring 8971830	Spring	B202TURBO If the car has SR, ABS, air-bag and EAS, choose spring 8971830	2
1	8971806 Spring B234I \| If the car has SR, ABS, air-bag and EAS, choose spring 8971830 \| + AC	Spring	B234I If the car has SR, ABS, air-bag and EAS, choose spring 8971830 + AC	2
1	8971806 Spring B234I \| If the car has SR, ABS, air-bag and EAS, choose spring 8971830	Spring	B234I If the car has SR, ABS, air-bag and EAS, choose spring 8971830	2
1	8971806 Spring B234TURBO \| If the car has SR, ABS, air-bag and EAS, choose spring 8971830	Spring	B234TURBO If the car has SR, ABS, air-bag and EAS, choose spring 8971830	2
1	8971830 Spring B202TURBO \| If the car has SR, ABS, air-bag and EAS, choose spring 8971848 dark blue or white ALT 1 red/white ALT 2 \| + AC	Spring	B202TURBO If the car has SR, ABS, air-bag and EAS, choose spring 8971848 dark blue or white ALT 1 red/white ALT 2 + AC	2
1	8971830 Spring B234I \| If the car has SR, ABS, air-bag and EAS, choose spring 8971848 \| + AC	Spring	B234I If the car has SR, ABS, air-bag and EAS, choose spring 8971848 + AC	2
1	8971830 Spring B234TURBO \| If the car has SR, ABS, air-bag and EAS, choose spring 8971848 \| + AC	Spring	B234TURBO If the car has SR, ABS, air-bag and EAS, choose spring 8971848 + AC	2
1	8971830 Spring B234TURBO \| If the car has SR, ABS, air-bag and EAS, choose spring 8971848	Spring	B234TURBO If the car has SR, ABS, air-bag and EAS, choose spring 8971848	2
1	8971848 4193413 Spring B202TURBO \| green or grey ALT 1 red/green ALT 2 \| + AC,SR ABS,AIR-BAG,EAS	Spring	B202TURBO green or grey ALT 1 red/green ALT 2 + AC,SR ABS,AIR-BAG,EAS	2
1	8971848 4193413 Spring B234TURBO \| + AC	Spring	B234TURBO + AC	2
1	8971863 4646717 Spring T16S	Spring	T16S	2
1	4107652 4646717 Spring T16S	Spring	T16S	2
1	4193421 Spring B234TURBO	Spring	B234TURBO	2
1	4193439 Spring B234TURBO	Spring	B234TURBO	2
2	8967861 4199899 Spring strut -1990 \| TURBO	Spring strut	-1990 TURBO	2
2	4004537 4199899 Spring strut 1990- \| TURBO	Spring strut	1990- TURBO	2
2	8971780 4199899 Spring strut -1990 \| I	Spring strut	-1990 I	2
2	8971780 4199899 Spring strut -1990	Spring strut	-1990	2
2	4004545 4199899 Spring strut 1990- \| I	Spring strut	1990- I	2
2	4004545 4199899 Spring strut 1990-	Spring strut	1990-	2
2	8971780 4199899 Spring strut -1990, LHD \| TURBO	Spring strut	-1990, LHD TURBO	2
2	4004545 4199899 Spring strut 1990-1990, LHD \| TURBO	Spring strut	1990-1990, LHD TURBO	2
2	8967846 4199899 Spring strut -1990 \| T16S	Spring strut	-1990 T16S	2
2	4004552 4199899 Spring strut 1990- \| T16S	Spring strut	1990- T16S	2
2	4107603 Spring strut T16S	Spring strut	T16S	2
3	8963282 4106969 Support bearing 1990-1990	Support bearing	1990-1990	2
4	8964207 Protecting casing	Protecting casing		2
5	7979537 Lock nut	Lock nut		2
6	8968067 Spring seat	Spring seat		2
7	8957102 Spring seat	Spring seat		2
8	8968521 32000304 Buffer 1990-1990	Buffer	1990-1990	2
9	8958084 Bellows	Bellows		2
10	7978711 7984511 Screw 1990-1990	Screw	1990-1990	6
11	8966129 Screw	Screw		4
12	7971765 92153201 Nut	Nut		4
20	8962144 Anti-roll bar	Anti-roll bar		1
20	8968984 Anti-roll bar T16S	Anti-roll bar	T16S	1
21	8958944 Link	Link		2
22	7979578 Nut	Nut		2
23	8960171 Washer	Washer		4
24	8151474 92153199 Lock nut	Lock nut		2
25	8953986 Block	Block		4
26	8965378 Bushing	Bushing		2
26	8968992 Bushing T16S	Bushing	T16S	2
27	8954000 Cap	Cap		2
28	7399330 Screw	Screw		4
