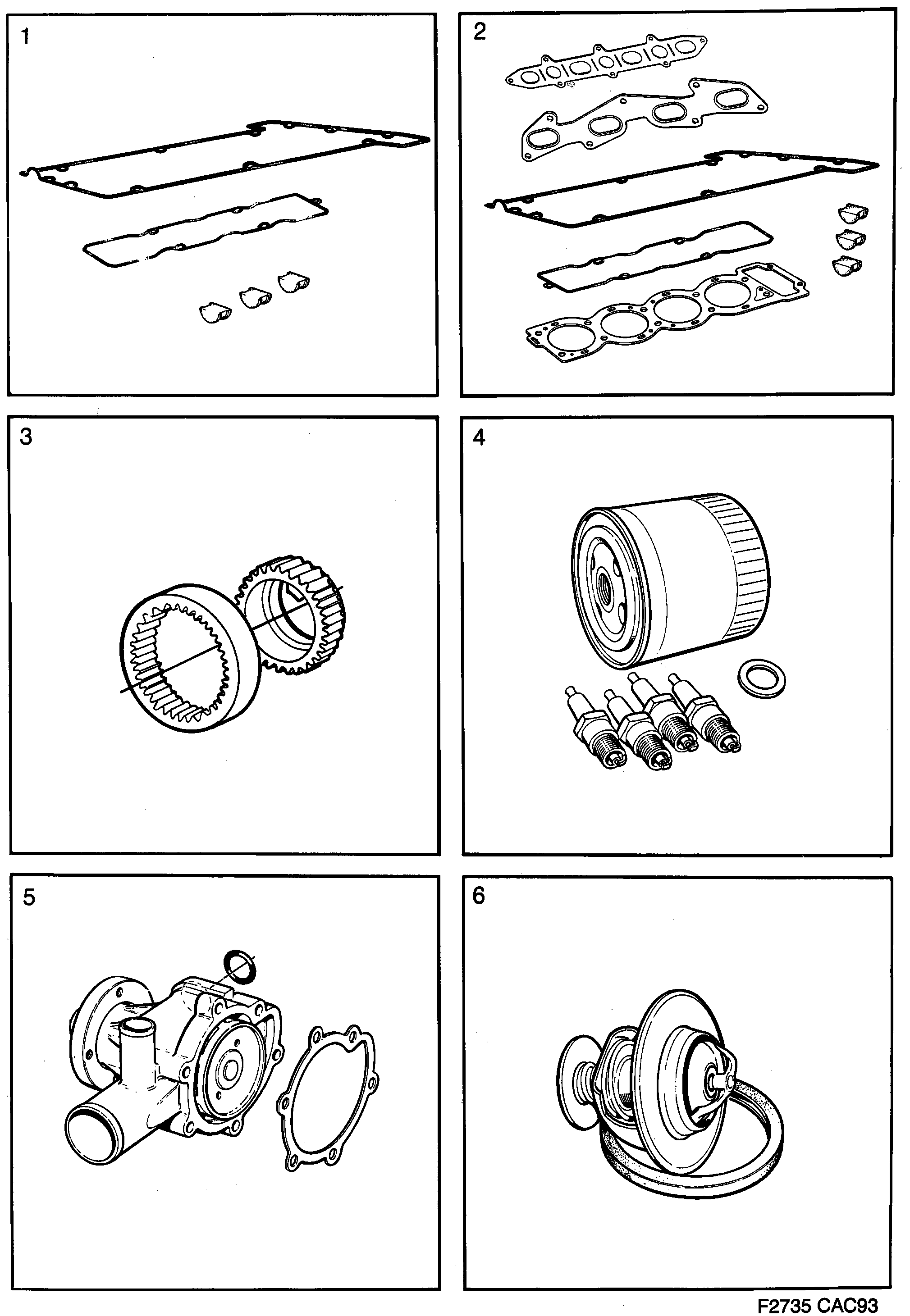

| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8818254 8822041 Gasket kit | X | |
7588056 55555635 Gasket | 1 | ||
7523962 55555634 Gasket | 1 | ||
7500069 Plug | 3 | ||
| 1 | 9321464 8822041 Gasket kit | X | |
7523962 55555634 Gasket | 1 | ||
7569304 55555635 Gasket | 1 | ||
| 2 | 8819831 Gasket kit B202 | X | |
7584436 Gasket | 1 | ||
7518996 Gasket | 1 | ||
7561301 9181348 Cylinder head gasket | 1 | ||
8818254 8822041 Gasket kit | 1 | ||
| 2 | 9321605 Gasket kit B234 | X | |
7585045 9181348 Gasket | 1 | ||
7518996 Gasket | 1 | ||
9126277 Gasket | 1 | ||
9321464 8822041 Gasket kit | 1 | ||
| 3 | 8817561 Pump kit 1990-1991 | X | |
7515588 32000440 Pump impeller Not as separate spare part. | 1 | ||
7515596 Pump impeller Not as separate spare part. | 1 | ||
7515588 32000440 Pump impeller Not as separate spare part. | 1 | ||
9127366 Pump impeller Not as separate spare part. | 1 | ||
| 4 | 8819138 Service kit B202TURBO | DI | X | |
9320383 93186554 Oil filter Not as separate spare part. | 1 | ||
8718439 Gasket | 1 | ||
9112541 32000330 Spark plug | 4 | ||
| 4 | 8819138 Service kit B234TURBO | X | |
9132937 Gasket | 1 | ||
9112541 32000330 Spark plug | 4 | ||
9320383 93186554 Oil filter Not as separate spare part. | 1 | ||
| 4 | 8819864 Service kit 1990-1991 | B202I | X | |
9320383 93186554 Oil filter Not as separate spare part. | 1 | ||
9132937 Gasket | 1 | ||
8718439 Gasket | 1 | ||
9116385 Spark plug | 4 | ||
9320383 93186554 Oil filter Not as separate spare part. | 1 | ||
8728057 Gasket | 1 | ||
9132937 Gasket | 1 | ||
9136276 5958780 Spark plug | 4 | ||
| 4 | 7496011 Service kit B234I | X | |
9132937 Gasket | 1 | ||
9117565 30520467 Spark plug | 4 | ||
9320383 93186554 Oil filter Not as separate spare part. | 1 | ||
9127234 9321670 Coolant pump Not as separate spare part. | 1 | ||
7566581 Gasket | 1 | ||
7972698 9146598 O-ring | 1 | ||
| 5 | 9321670 Coolant pump 1991-1993 | B202 | Also available as exchange unit. | X | |
9128448 9321670 Coolant pump 1990-1992 | Not as separate spare part. | 1 | ||
7566581 Gasket | 1 | ||
7972698 9146598 O-ring | 1 | ||
9114240 Coolant pump Not as separate spare part. | 1 | ||
9113325 Gasket | 1 | ||
| 5 | 9321688 Coolant pump 1991-1993 | B234 | Also available as exchange unit. | X | |
9128471 9321688 Coolant pump 1990-1992 | Not as separate spare part. | 1 | ||
9113325 Gasket | 1 | ||
7972698 9146598 O-ring | 1 | ||
8046674 55562943 O-ring | 1 | ||
8046682 30551915 O-ring | 1 | ||
| 6 | 8817298 30577561 Thermostat kit 89°C | X | |
7505241 5958749 Thermostat Not as separate spare part. | 1 | ||
8352692 9176165 Gasket | 1 | ||
| 6 | 8817538 Thermostat kit 82°C | X | |
7517345 5958756 Thermostat Not as separate spare part. | 1 | ||
8352692 9176165 Gasket | 1 |
