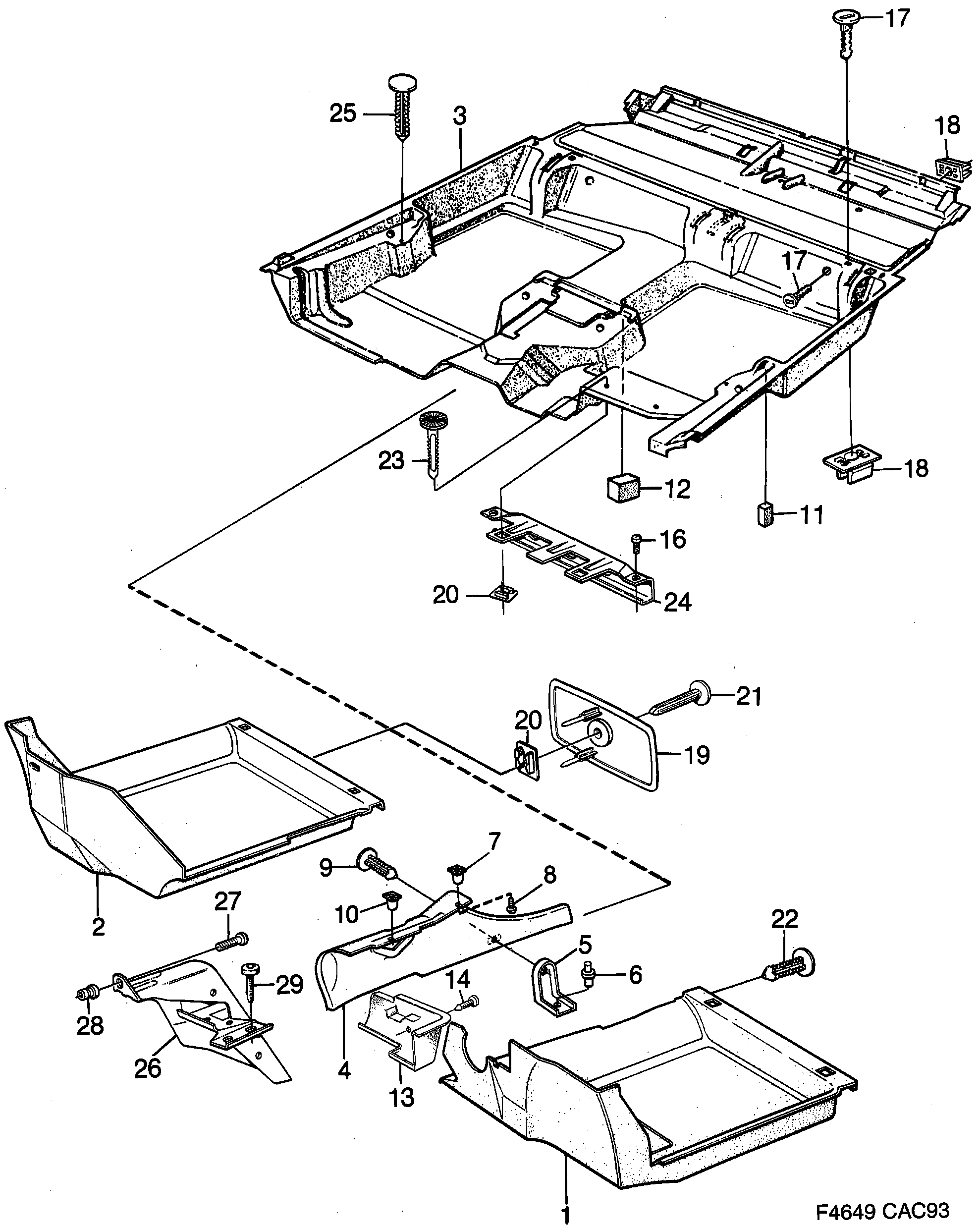

| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4129466 Carpet LHD | Red | LH | 1 | |
| 2 | 4129540 Carpet LHD | Red | RH | 1 | |
| 1 | 4129565 Carpet RHD | Red | LH | 1 | |
| 2 | 4129474 Carpet RHD | Red | RH | 1 | |
| 3 | 4129706 Carpet Red | 1 | |
| 3 | 4129789 Carpet Red | 1 | |
| 4 | 9690603 Carpet LHD | Red | LH | 1 | |
| 4 | 9690652 Carpet LHD | Red | RH | 1 | |
| 4 | 9690702 Carpet RHD | Red | LH | 1 | |
| 4 | 9690751 Carpet RHD | Red | RH | 1 | |
| 1 | 4129482 Carpet LHD | Grey. | LH | 1 | |
| 2 | 4129581 Carpet LHD | Grey. | RH | 1 | |
| 1 | 4129607 Carpet RHD | Grey. | LH | 1 | |
| 2 | 4129490 4822607 Carpet RHD | Grey. | RH | 1 | |
| 3 | 4129714 Carpet Grey. | 1 | |
| 3 | 4129797 Carpet Grey. | 1 | |
| 4 | 9690629 Carpet LHD | Grey. | LH | 1 | |
| 4 | 9690678 4708467 Carpet LHD | Grey. | RH | 1 | |
| 4 | 9690728 4708525 Carpet RHD | Grey. | LH | 1 | |
| 4 | 9690777 Carpet RHD | Grey. | RH | 1 | |
| 1 | 4129508 Carpet LHD | Blue | LH | 1 | |
| 2 | 4129623 Carpet LHD | Blue | RH | 1 | |
| 1 | 4129649 Carpet RHD | Blue | LH | 1 | |
| 2 | 4129516 Carpet RHD | Blue | RH | 1 | |
| 3 | 4129722 Carpet Blue | 1 | |
| 3 | 4129805 Carpet Blue | 1 | |
| 4 | 9690637 Carpet LHD | Blue | LH | 1 | |
| 4 | 9690686 Carpet LHD | Blue | RH | 1 | |
| 4 | 9690736 Carpet RHD | Blue | LH | 1 | |
| 4 | 9690785 Carpet RHD | Blue | RH | 1 | |
| 1 | 4129524 Carpet LHD | Yellow. | LH | 1 | |
| 2 | 4129664 Carpet LHD | Yellow. | RH | 1 | |
| 1 | 4129680 Carpet RHD | Yellow. | LH | 1 | |
| 2 | 4129532 Carpet RHD | Yellow. | RH | 1 | |
| 3 | 4129730 Carpet Yellow. | 1 | |
| 3 | 4129813 Carpet Yellow. | 1 | |
| 4 | 9580911 Carpet LHD | Yellow. | LH | 1 | |
| 4 | 9580929 Carpet LHD | Yellow. | RH | 1 | |
| 4 | 9580820 Carpet RHD | Yellow. | LH | 1 | |
| 4 | 9580838 Carpet RHD | Yellow. | RH | 1 | |
| 5 | 9663345 Bracket LH | 1 | |
| 5 | 9663352 Bracket RH | 1 | |
| 6 | 9849514 Rivet | 2 | |
| 7 | 7977358 Press nut | 2 | |
| 8 | 9771320 Screw | 2 | |
| 9 | 9668120 Clip Red | 4 | |
| 9 | 9668153 92152407 Clip Grey. | 4 | |
| 9 | 9675646 Clip Blue | 4 | |
| 9 | 9580846 Clip Yellow. | 4 | |
| 10 | 7977341 Press nut | 2 | |
| 11 | 9897919 Spacer | 2 | |
| 12 | 9897901 Spacer | 2 | |
| 13 | 4136412 Cover RHD | Red | 1 | |
| 13 | 4136438 Cover RHD | Grey. | 1 | |
| 13 | 4136420 Cover RHD | Blue | 1 | |
| 13 | 4136446 Cover RHD | Yellow. | 1 | |
| 14 | 9659434 Special screw Red | 1 | |
| 14 | 9491689 Special screw Grey. | 1 | |
| 14 | 9675653 Special screw Blue | 1 | |
| 14 | 9580861 Special screw Yellow. | 1 | |
| 16 | 7977283 Screw | 1 | |
| 17 | 9659434 Special screw Red | 4 | |
| 17 | 9491689 Special screw Grey. | 4 | |
| 17 | 9675653 Special screw Blue | 4 | |
| 17 | 9580861 Special screw Yellow. | 4 | |
| 18 | 8452898 Quick nut | 4 | |
| 19 | 9547993 Cover data link connector | 1 | |
| 20 | 8452898 Quick nut | 3 | |
| 21 | 9867821 Special screw | 1 | |
| 22 | 9668153 92152407 Clip | 6 | |
| 23 | 9491689 Special screw | 2 | |
| 24 | 4138590 Cover | 1 | |
| 25 | 9668120 Clip Red | 2 | |
| 25 | 9668153 92152407 Clip Grey. | 2 | |
| 25 | 9675646 Clip Blue | 2 | |
| 25 | 9580846 Clip Yellow. | 2 | |
| 26 | 9658600 4272217 Foot rest RHD | 1 | |
| 27 | 7977283 Screw RHD | 1 | |
| 28 | 7398936 Nut RHD | 1 | |
| 29 | 7977366 Screw RHD | 2 |
