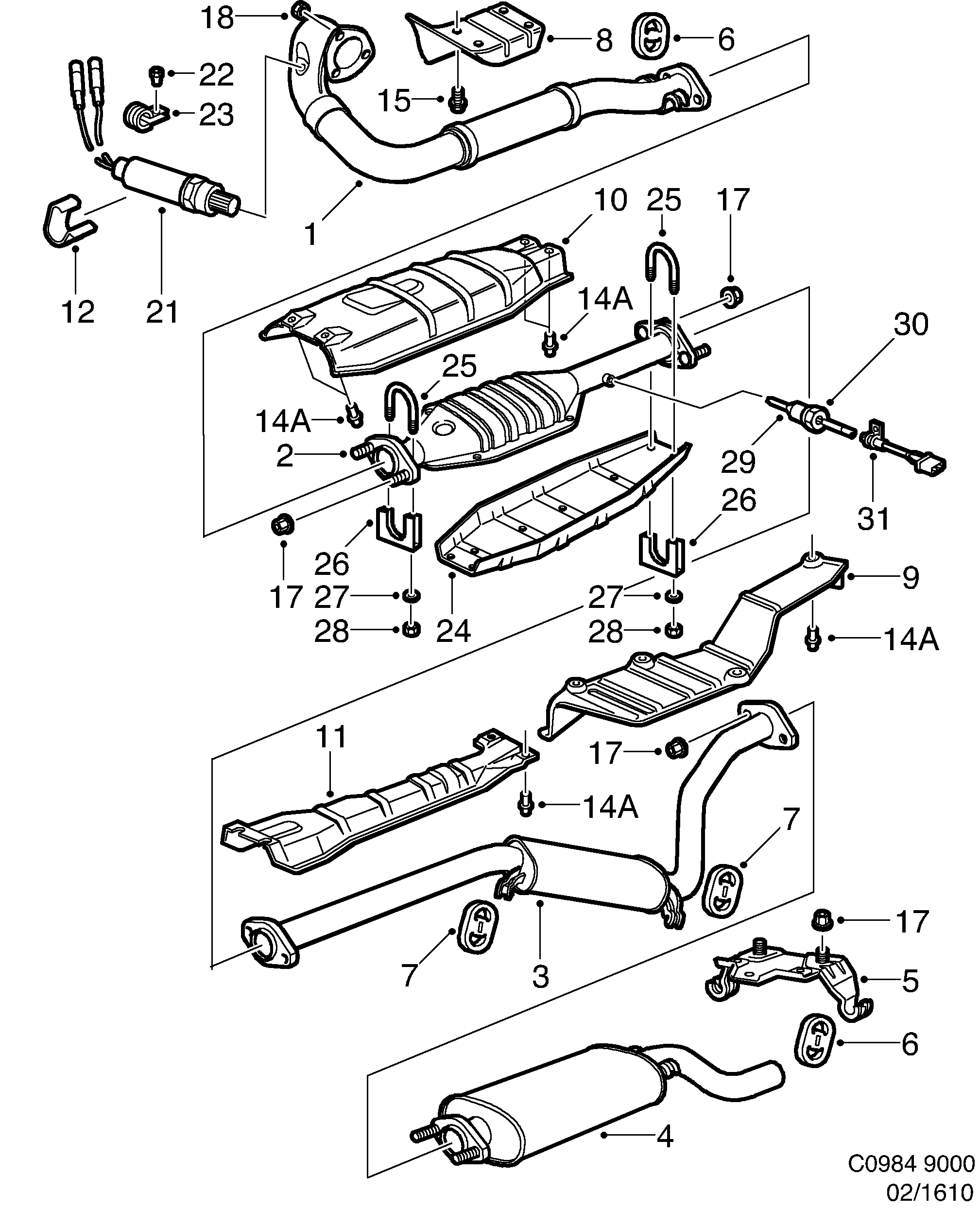

1610: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1990 - 1993 | TURBO) | For 9000 (1992)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4020798 5466800 Exhaust pipe 1991-1992 | B202 | 1 | |
| 1 | 5466081 Exhaust pipe 1991-1992 | B234 | 1 | |
| 2 | 9392457 4750030 Three way catalytic converter | 1 | |
| 2 | 4024253 4750048 Three way catalytic converter | 1 | |
| 3 | 5324942 Silencer 1992-1992 | 1 | |
| 3 | 4393898 5466867 Silencer 1992-1993 | 1 | |
| 4 | 5466115 Silencer (8977928) | 1 | |
| 4 | 8822264 Silencer T16S | (8980542) | 1 | |
| 4 | 8979163 Silencer | 1 | |
| 4 | 5325006 Silencer | 1 | |
| 4 | 4015814 5467154 Silencer 5CSAERO | 1 | |
| 5 | 8977936 Hook | 1 | |
| 6 | 9392465 Rubber mounting | 4 | |
| 7 | 9392465 Rubber mounting 1992-1993 | 2 | |
| 9 | 4022505 Heat shield 1992-1993 | 1 | |
| 10 | 4022588 Heat shield | 1 | |
| 11 | 4022596 Heat shield | 1 | |
| 12 | 4158762 Clip B234 | 1 | |
| 14A | 9393968 Rivet | 12 | |
| 14A | 7591480 Rivet Alternative to 93 93 968 for larger holes. | 12 | |
| 15 | 8125130 Screw | 4 | |
| 17 | 7967953 11900429 Nut | 8 | |
| 18 | 7519432 92152032 Nut | 3 | |
| 21 | 9132564 Lambda sonde 1992-1993 | 1 | |
| 21 | 4164323 4239588 Lambda sonde 1992-1993 | 1 | |
| 22 | 7971757 7528953 Screw | 2 | |
| 23 | 4087078 7398803 Clamp 1990- | 1 | |
| 24 | 4024279 Heat shield | 1 | |
| 25 | 4024295 Brace | 2 | |
| 26 | 4024303 Yoke bracket | 2 | |
| 27 | 8029985 92153033 Washer 1990-1992 | 4 | |
| 28 | 7965767 55557005 Lock nut | 4 | |
| 29 | 4160065 Sensor | 1 | |
| 30 | 4062329 Nut | 1 | |
| 31 | 7969348 Clamp | 1 |
