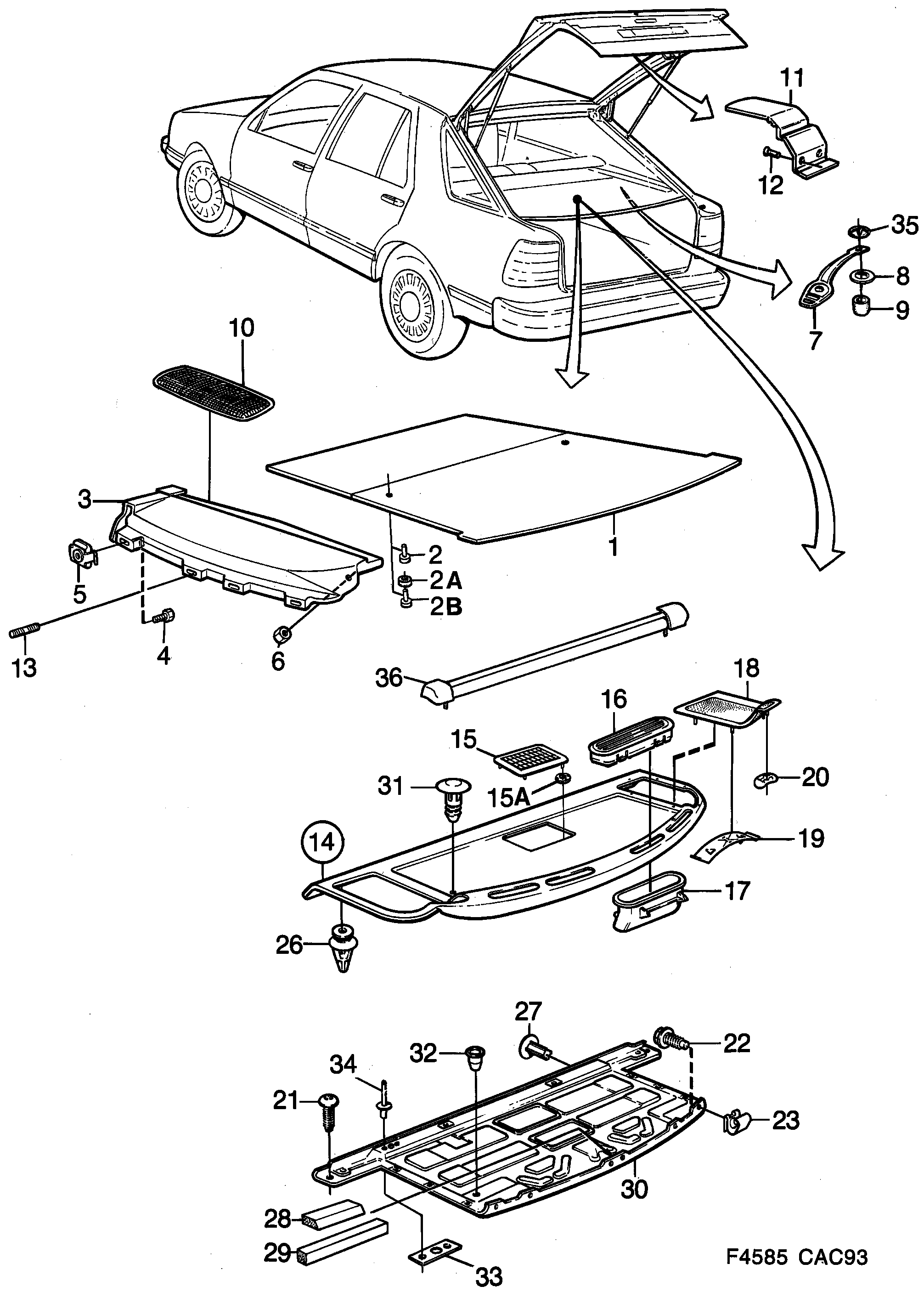

1400: Car body, internal - Other interior equipment - Parcel shelf
(1990 - 1993) | For 9000 (1992)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4264214 Rear shelf Light beige | 1 | |||
| 1 | 4267647 Rear shelf -1992 | Light beige | 1 | |||
| 1 | 4268496 Rear shelf 1992- | Light beige | 1 | |||
| 1 | 4265112 Rear shelf 1992-1993 | Yellow. | 1 | |||
| 1 | 4267621 Rear shelf -1992 | Yellow. | 1 | |||
| 1 | 4268470 Rear shelf 1992- | Yellow. | 1 | |||
| 1 | 4265096 Rear shelf 1992-1993 | Blue | 1 | |||
| 1 | 4267605 Rear shelf -1992 | Blue | 1 | |||
| 1 | 4268454 Rear shelf 1992- | Blue | 1 | |||
| 1 | 4265120 Rear shelf 1992-1993 | Light grey | 1 | |||
| 1 | 4267639 Rear shelf -1992 | Light grey | 1 | |||
| 1 | 4268488 Rear shelf 1992- | Light grey | 1 | |||
| 1 | 4265104 Rear shelf 1992-1993 | Grey. | 1 | |||
| 1 | 4267613 Rear shelf -1992 | Grey. | 1 | |||
| 1 | 4268462 Rear shelf 1992- | Grey. | 1 | |||
| 2A | 4266532 Stop 1992-1993 | 2 | |||
| 2B | 4267787 Screw 1992-1993 | 2 | |||
| 3 | 4264230 Support Light beige | LH | 1 | |||
| 3 | 4264222 Support Light beige | RH | 1 | |||
| 3 | 4265195 Support 1992-1993 | Yellow. | LH | 1 | |||
| 3 | 4265187 Support 1992-1993 | Yellow. | RH | 1 | |||
| 3 | 4265146 Support 1992-1993 | Blue | LH | 1 | |||
| 3 | 4265153 Support 1992-1993 | Blue | RH | 1 | |||
| 3 | 4265211 Support 1992-1993 | Light grey | LH | 1 | |||
| 3 | 4265203 Support 1992-1993 | Light grey | RH | 1 | |||
| 3 | 4265179 Support 1992-1993 | Grey. | LH | 1 | |||
| 3 | 4265161 Support 1992-1993 | Grey. | RH | 1 | |||
| 3 | 4260410 4486817 Support -1992 | Grey. | LH | 1 | |||
| 3 | 4260402 4486825 Support -1992 | Grey. | RH | 1 | |||
| 3 | 4268512 4486817 Support 1992- | Grey. | LH | 1 | |||
| 3 | 4268520 4486825 Support 1992- | Grey. | RH | 1 | |||
| 4 | 7975170 7982366 Screw | X | |||
| 5 | 7974728 Cage nut | 10 | |||
| 6 | 7971658 11900428 Nut | 6 | |||
| 7 | 8467409 Strap | 1 | |||
| 8 | 9794520 Spring nut | 1 | |||
| 9 | 9796327 Cap only cars without loudspeaker grille | 3 | |||
| 10 | 4264479 Grille, loudspeaker 1992-1993 | Grey. | LH | 1 | |||
| 10 | 4264461 Grille, loudspeaker 1992-1993 | Grey. | RH | 1 | |||
| 10 | Grille, loudspeaker Not as separate spare part. | ||||
| 11 | 9797085 Profile | 2 | |||
| 12 | 9849514 Rivet | 4 | |||
| 13 | 9446881 Stud | 4 | |||
| 14 | 4264289 Rear shelf Light beige | 1 | |||
| 14 | 4264305 Rear shelf Light beige | RAC | 1 | |||
| 14 | 4044079 Rear shelf 1990- | Yellow. | 1 | |||
| 14 | 4256046 Rear shelf Yellow. | RAC | 1 | |||
| 14 | 4133278 Rear shelf 1991-1993 | Light grey | 1 | |||
| 14 | 4256053 Rear shelf Light grey | RAC | 1 | |||
| 14 | 4043899 Rear shelf 1990- | Grey. | 1 | |||
| 14 | 4256020 Rear shelf Grey. | RAC | 1 | |||
| 14 | 4043626 Rear shelf 1990- | Blue | 1 | |||
| 14 | 4256038 Rear shelf Blue | RAC | 1 | |||
| 15 | 9629676 Air outlet RAC | 1 | |||
| 15A | 9695081 Washer RAC | 4 | |||
| 16 | 4264446 Air outlet 1992-1993 | Grey. | 4 | |||
| 17 | 9674896 Air outlet | 4 | |||
| 18 | 9694001 Grille, loudspeaker 1992-1993 | Grey. | LH | 1 | |||
| 18 | 9694019 Grille, loudspeaker 1992-1993 | Grey. | RH | 1 | |||
| 19 | 9578246 Clamp | 10 | |||
| 20 | 9692724 Clamp | 2 | |||
| 21 | 7972607 92153146 Screw 1990- | 2 | |||
| 22 | 8286296 Screw | 6 | |||
| 23 | 7977895 Cage nut | 6 | |||
| 26 | 9578238 Clamp | 4 | |||
| 27 | 4264388 Cover Light beige | 3 | |||
| 27 | 9591892 Cover Yellow. | 3 | |||
| 27 | 9591637 Cover Grey. | 3 | |||
| 27 | 9591645 Cover Blue | 3 | |||
| 28 | 4030342 Seal For cars with high mounted brake light | 1 | |||
| 29 | 4034369 Seal For cars with high mounted brake light | 1 | |||
| 30 | 9584871 4704219 Support 1990- | 1 | |||
| 30 | 9548124 Support RAC | 1 | |||
| 31 | 4264370 Plug Light beige | 2 | |||
| 31 | 9583576 Plug Yellow. | 2 | |||
| 31 | 9583196 Plug Grey. | 2 | |||
| 31 | 9583204 Plug Blue | 2 | |||
| 32 | 9580275 Sleeve | 2 | |||
| 33 | 9583790 Nut plate | 3 | |||
| 33 | 9653502 Nut plate | 3 | |||
| 34 | 7972490 92153058 Rivet | 6 | |||
| 35 | 7971518 Lock washer | 1 | |||
| 36 | |||||
