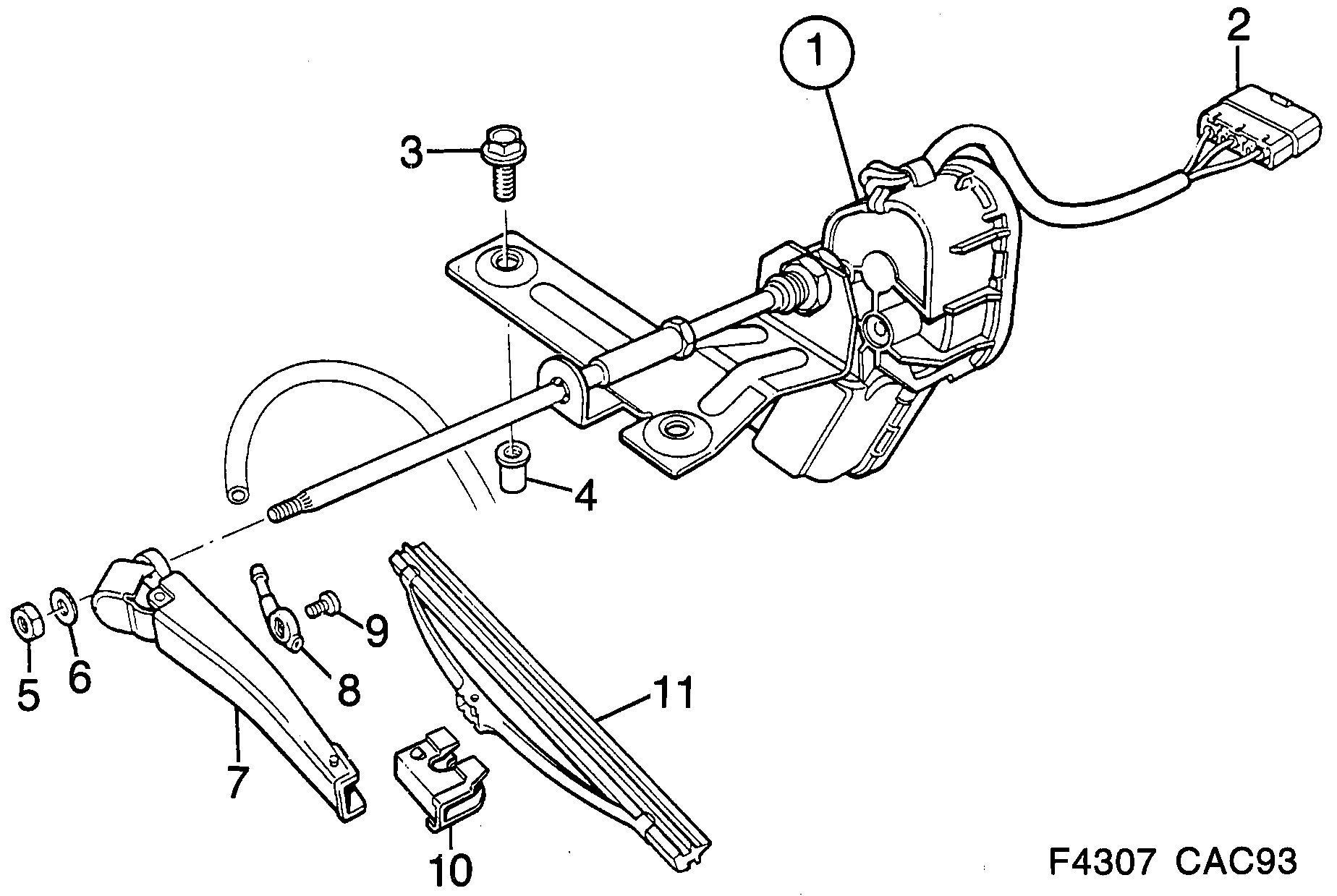

1070: Electrical, general - Electric equipment, other - Headlamp wiper
(1992 - 1993 | 5CS) | For 9000 (1993)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9082470 Electric motor LH | 1 | |
| 1 | 9082488 Electric motor RH | 1 | |
| 2 | 9503327 Contact housing 3-pin, male | 1 | |
| 3 | 7978117 11900355 Screw | 4 | |
| 4 | 7399454 9130829 Rivet nut | 4 | |
| 5 | 8029548 Nut | 2 | |
| 6 | 7972284 Washer | 2 | |
| 7 | 9082553 Wiper arm LH | 1 | |
| 7 | 9082561 Wiper arm RH | 1 | |
| 8 | 9089129 Nozzle LH | 1 | |
| 8 | 9089111 Nozzle RH | 1 | |
| 9 | 4251021 Screw | 1 | |
| 10 | 9558149 Adapter | 1 | |
| 11 | 9082587 Wiper blade | 2 | |
| 11 | 9088238 Wiper blade LHD | 2 | |
8548299 8549172 Wiper blade kit | X | ||
8548281 8549180 Wiper blade kit LHD | X |
