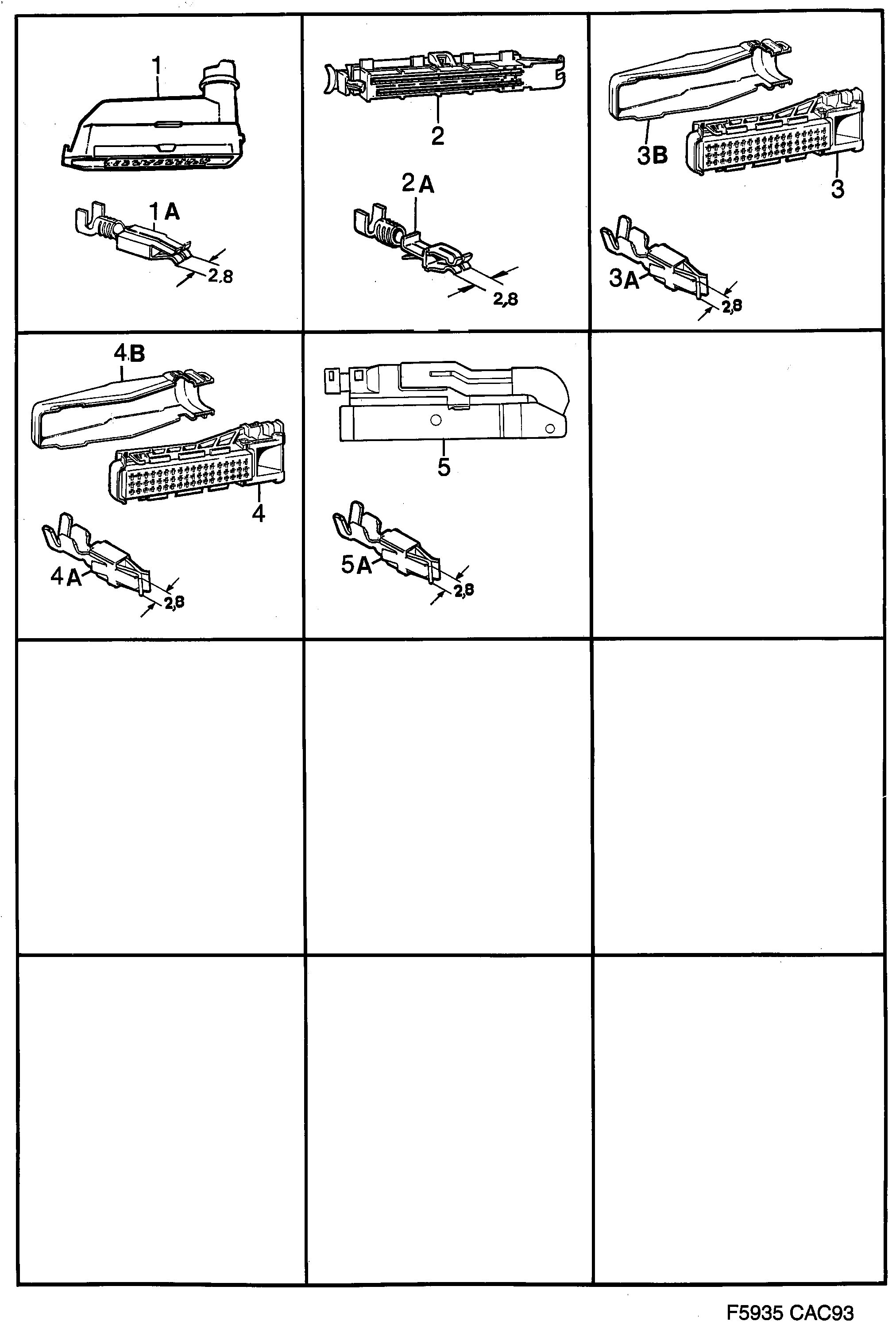

1010: Electrical, connector - Wiring and fuses - Contact housing etc
(1993) | For 9000 (1993)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4176269 Connector housing 38-pin, female | ELECTRONIC UNIT | X | |
| 1A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | ||
| 2 | 9565045 Contact housing 39-pin, female | ELECTRONIC UNIT ACC,EDU | X | |
| 2A | 4063970 12790467 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 2A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3 | 4176210 Contact housing 55-pin, female | ELECTRONIC UNIT ABS | X | |
| 3A | 4061586 Cable terminal AREA,1,5-2,5 MM2 | X | |
| 3B | 4418380 Cover | X | |
| 4 | 4353637 Contact housing 55-pin, female | ELECTRONIC UNIT ASR | X | |
| 4A | 4061586 Cable terminal AREA,1,5-2,5 MM2 | X | |
| 4B | 4418380 Cover | X | |
| 5 | 4176616 Connector housing 70-pin, female | ELECTRONIC UNIT TRIONIC | X | |
| 5A | 4354353 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 5A | 4061586 Cable terminal AREA,1,5-2,5 MM2 | X |
