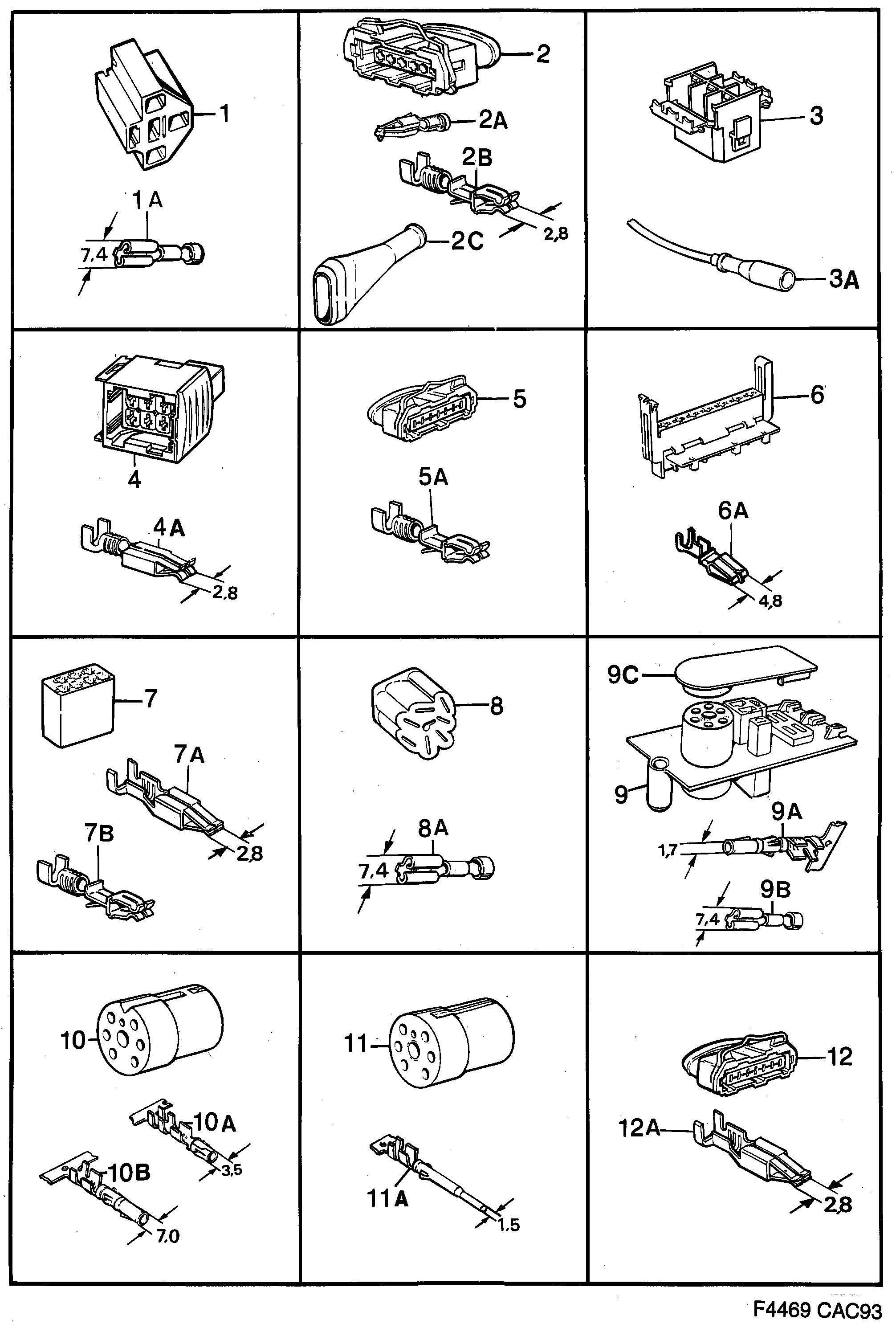

920: Electrical, connector - Wiring and fuses - Contact housing etc
(1993) | For 9000 (1993)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 8533697 Contact housing 5-pin, female | RELAY EXHAUST TEMP WASHER PUMP REAR WIPER, RELAY LAMBDA,SWITCH PARKING PAWL | X | |
| 1A | 8582454 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 2 | 8593931 Contact housing 6-pin, female | AIR MASS METER LH | X | |
| 2A | 8521593 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 2B | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 2C | 8582082 Protection | X | |
| 3 | 9503475 Contact housing 6-pin, female | JOINT PIECE | X | |
| 3A | 8547796 Connector | X | |
| 3A | 7874498 Connection | X | |
| 4 | 4113809 12788966 Connector housing 6-pin, female | WASHER MOTOR,CENTRAL LOCK,JOINT PIECE BOOT LID,REAR LOUD SPEAKER JOINT PIECE ENGINE TRIONIC | X | |
| 4A | 4061586 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 5 | 8593949 Contact housing 7-pin, female | VALVE,OUTPOT STAGE | X | |
| 5A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 6 | 9122797 Contact housing 7-pin, female | THEFT ALARM,SWITCH DIRECTION INDICATOR, SWITCH SPEED CONTROL TAIL LIGHT,SWITCH FLASHER,REAR WIPER | X | |
| 6A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 7 | 9123381 Contact housing 7-pin, female | SWITCH ELECTRIC MIRROR | X | |
| 7A | 8521593 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 7A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 7B | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 8 | 9503251 Contact housing 7-pin, female | HEATING FAN | X | |
| 8A | 7972029 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 8A | 7968068 Cable terminal AREA,4,0-6,0 MM2 | X | |
| 9 | 9512591 Contact 7-pin, female | TEST CONNECTOR | X | |
| 9A | 8587552 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 9A | 8587560 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 9B | 8582454 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 9C | 9520974 Cover | X | |
| 10 | 8521700 Contact 7-pin, female | JOINT PIECE,JOINT PIECE REAR DOOR | X | |
| 10A | 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 10B | 8587552 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 11 | 8521718 Contact housing 7-pin, male | JOINT PIECE CABLE HAR- NESS DOORS | X | |
| 11A | 8582603 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 11B | 8593964 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 12 | 4354833 Connector housing 7-pin, female | SETTING MOTOR,SETTING MOTOR ASR,POWER AMPLI- FIER | X | |
| 12A | 4061586 Cable terminal AREA,1,0-2,5 MM2 | X |
