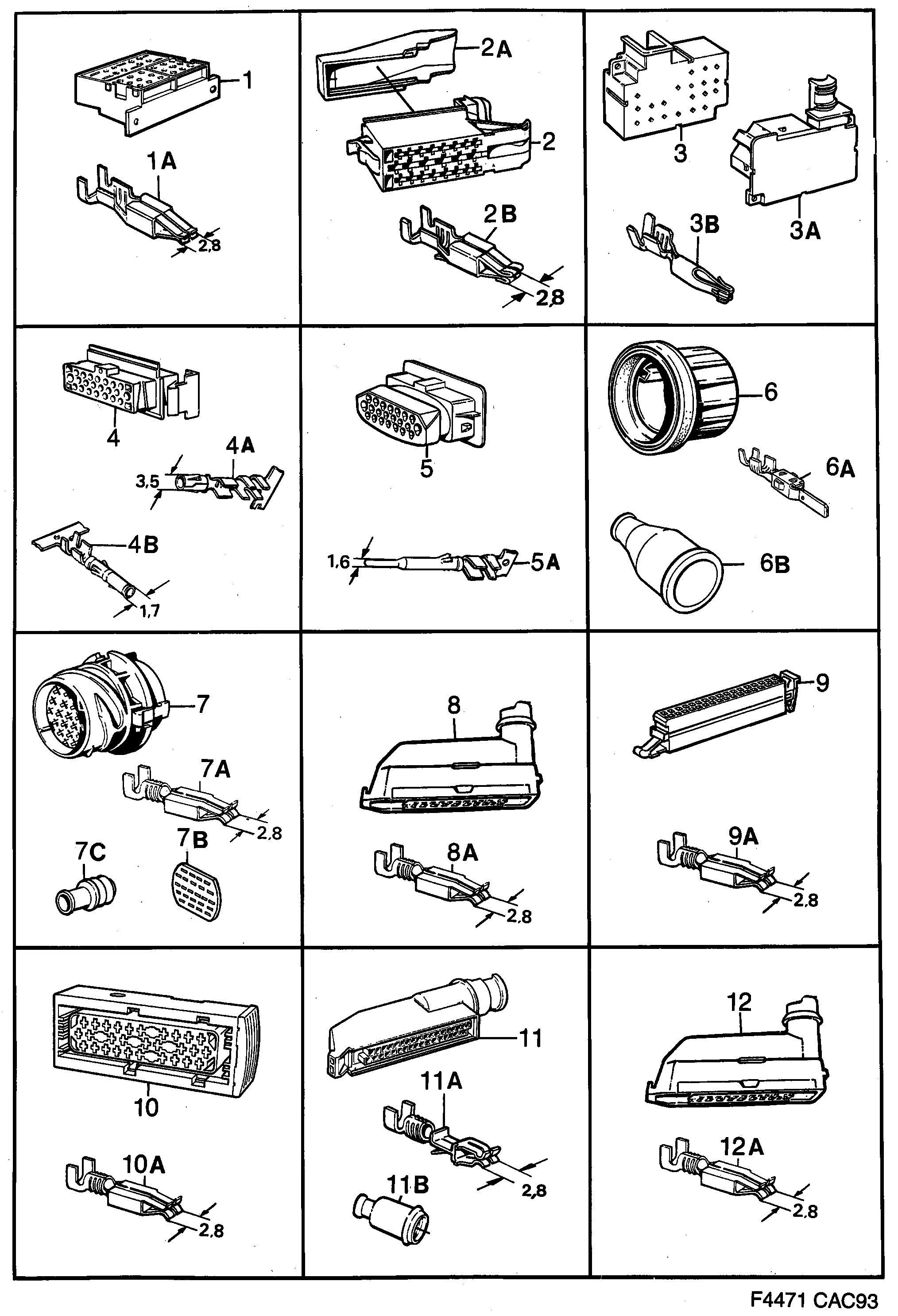

980: Electrical, connector - Wiring and fuses - Contact housing etc
(1993) | For 9000 (1993)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9125543 Contact housing 18-pin, female | EL-DISTRIBUT. UNIT | X | |
| 1A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 2 | 4060893 Contact housing 19-pin, female | SWITCH CENTRE CONSOLE | X | |
| 2A | 4067617 Cover | X | |
| 2B | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3 | 9527755 Contact housing 20-pin, female | ELECTRONIC UNIT AIR-BAG | X | |
| 3A | 9527763 Contact housing | X | |
| 3B | 9527771 Cable terminal AREA,0,5 MM2 | X | |
| 4 | 9525106 Contact housing 22-pin, female | JOINT PIECE FRONT DOORS | X | |
| 4A | 8582595 Cable terminal AREA,0,5-2,0 MM2 | X | |
| 4B | 8587552 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 5 | 9525114 Contact housing 22-pin, male | JOINT PIECE DOORS | X | |
| 5A | 8593964 Cable terminal AREA,0,8-1,5 MM2 | X | |
| 6 | 4174868 Connector housing 24-pin, male | JOINT PIECE MAIN CABLE HARNESS,JOINT PIECE CABLE HARNESS FRONT | X | |
| 6A | 4115192 12789934 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 6B | 4111308 Rubber protection | X | |
| 6C | 4588349 Lock ring | X | |
| 7 | 4176244 Connector housing 24-pin, female | JOINT PIECE CABLE HARNESS ENGINE | X | |
| 7A | 4061586 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 7B | 4352936 Seal | X | |
| 7C | 4061958 12798370 Seal BLIND PLUG | X | |
| 7C | 4061966 Seal 1,2-2,0 MM | X | |
| 7C | 4061974 12798372 Seal 2,1-2,0 MM | X | |
| 8 | 4176582 Connector housing 25-pin, female | ELECTRONIC UNIT EZK | X | |
| 8A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | 1 | |
| 9 | 4176186 Connector housing 25-pin, female | ELECTRONIC UNIT ASR | X | |
| 9A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | 1 | |
| 10 | 4114609 Connector housing 29-pin, female | DIAGNOSTIC UNIT AIR-BAG | X | |
| 10A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 11 | 9125519 Contact housing 35-pin, female | ELECTRONIC UNIT LH | X | |
| 11A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 11B | 8587511 Rubber protection | X | |
| 12 | 4175428 Connector housing 38-pin, female | ELECTRONIC UNIT ETS | X | |
| 12A | 9120957 12789796 Cable terminal AREA,1,0-2,5 MM2 | X |
