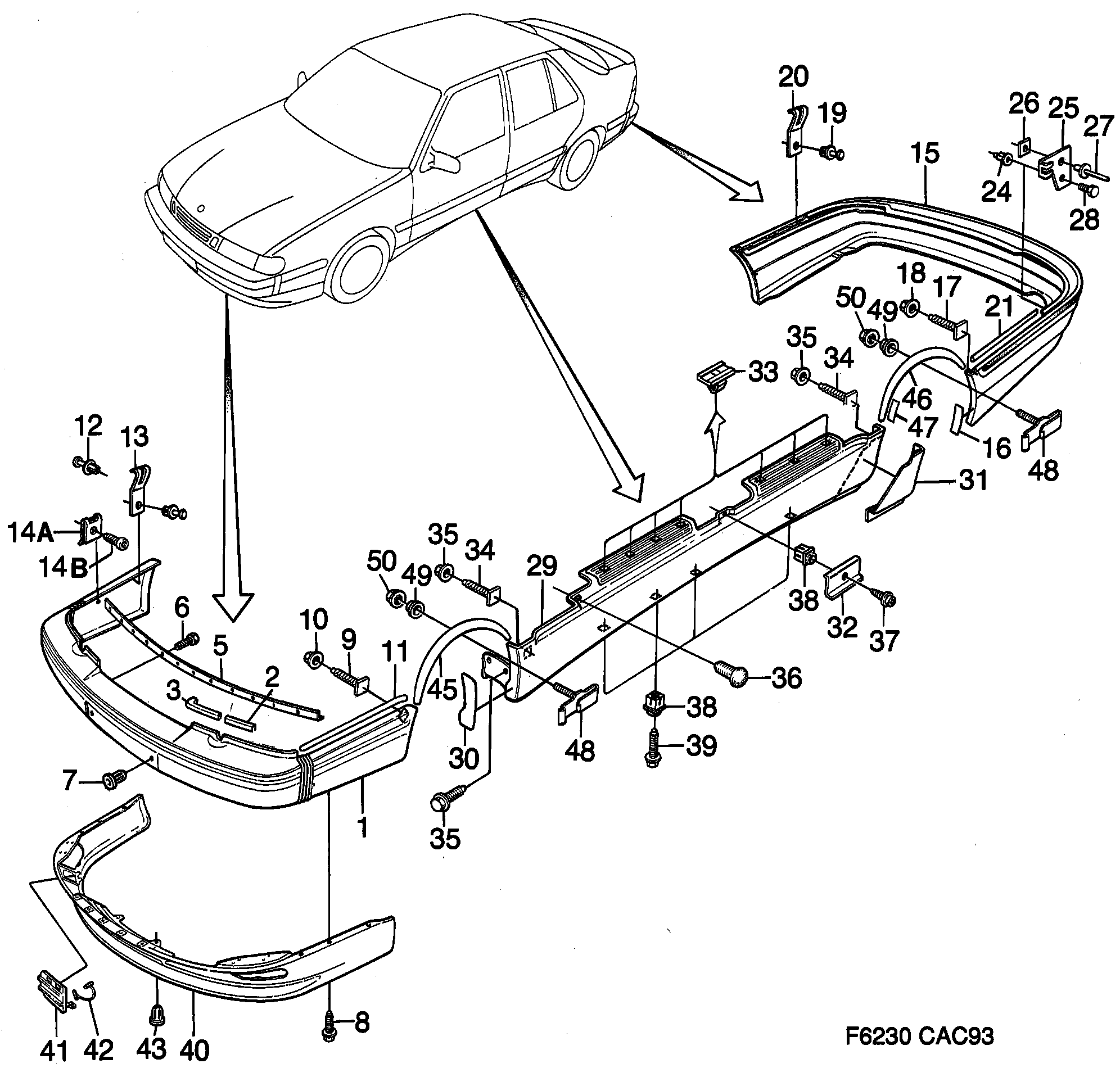

1100: Car body, external - External details
(1993 | 5CSAERO) | For 9000 (1993)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4435178 Cover | 1 | |||
| 2 | 4380036 Seal | 2 | |||
| 3 | 4096756 Seal LH | 1 | |||
| 3 | 4096749 Seal RH | 1 | |||
| 5 | 9081282 Attaching rail | 2 | |||
| 6 | 4446290 Screw | 24 | |||
| 7 | 9087040 Nut | 4 | |||
| 8 | 9288846 Nut | 7 | |||
| 9 | 6959464 Screw | 2 | |||
| 10 | 7399488 Nut | 2 | |||
| 11 | 4447611 Sealing strip LH (4380572) | 1 | |||
| 11 | 4447603 Sealing strip RH (4380564) | 1 | |||
| 12 | 8667479 Rivet | 6 | |||
| 13 | 4342275 Attaching spring | 6 | |||
| 14A | 7977523 Clip | 2 | |||
| 14B | 7977465 92153149 Screw | 2 | |||
| 1 | |||||
| 15 | 8285413 Cover | 1 | |||
| 16 | 8667214 Protective foil LH | 1 | |||
| 16 | 8667206 Protective foil RH | 1 | |||
| 17 | 4087151 Screw | 4 | |||
| 18 | 7399488 Nut | 4 | |||
| 19 | 8667479 Rivet | 6 | |||
| 20 | 4342275 Attaching spring | 6 | |||
| 21 | 4447637 Sealing strip LH (4380598) | 1 | |||
| 21 | 4447629 Sealing strip RH (4380580) | 1 | |||
| 24 | 6911804 Bushing | 6 | |||
| 25 | 4448874 Attaching bracket LH | 1 | |||
| 25 | 4448866 Attaching bracket RH | 1 | |||
| 26 | 9230293 Washer | 2 | |||
| 27 | 9849514 Rivet | 2 | |||
| 28 | 7977465 92153149 Screw | 2 | |||
| 29 | 8285439 Sill cover LH | 1 | |||
| 29 | 8285421 Sill cover RH | 1 | |||
| 30 | 4447124 Protective foil LH | 1 | |||
| 30 | 4447116 Protective foil RH | 1 | |||
| 31 | 8662843 Protective foil LH | 1 | |||
| 31 | 8662835 Protective foil RH | 1 | |||
| 32 | 4294062 30543650 Cover washer | 2 | |||
| 33 | 4102000 Clamp | 14 | |||
| 34 | 6959464 Screw | 4 | |||
| 35 | 7399488 Nut | 4 | |||
| 36 | 9668153 92152407 Clip | 2 | |||
| 37 | 9778952 8059578 Screw | 2 | |||
| 38 | 4008504 Nut | 12 | |||
| 39 | 7982325 92153216 Screw | 14 | |||
| 40 | 4435186 4484739 Spoiler | 1 | |||
| 41 | 4342283 Cover | 1 | |||
| 42 | 6960926 Bracket | 1 | |||
| 43 | 9087040 Nut | 2 | |||
| 45 | 4435137 Mudguard widener LH | 1 | |||
| 45 | 4435129 Mudguard widener RH | 1 | |||
| 46 | 8285447 Mudguard widener LH | 1 | |||
| 46 | 8285454 Mudguard widener RH | 1 | |||
| 47 | 8663270 Protective foil LH | 1 | |||
| 47 | 8663262 Protective foil RH | 1 | |||
| 48 | 4090197 Clip | 14 | |||
| 49 | 9278151 30521853 Bushing | 14 | |||
| 50 | 7399488 Nut | 14 | |||
