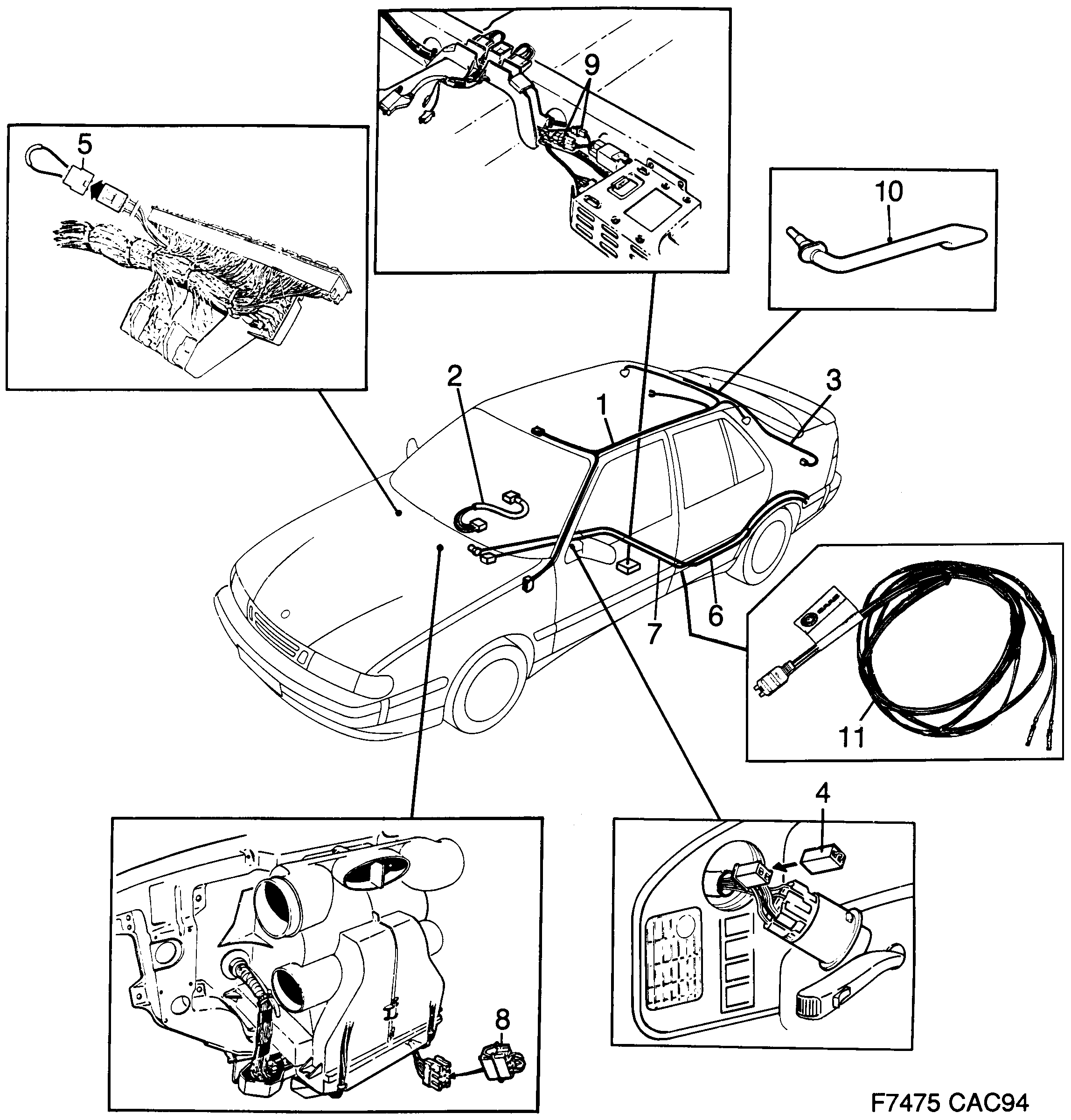

1500: Electrical, general - Wiring and fuses - Compartment
(1994) | For 9000 (1994)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4067013 Cable harness interior lighting | 1 | |||
| 2 | 4173688 Cable harness Passenger side. front seat | 1 | |||
| 3 | 4178505 Cable harness High mounted stop light. brake light | 1 | |||
| 4 | 9569740 Cable harness control lamp | 1 | |||
| 5 | 4066916 Cable harness Without anti theft alarm. | 1 | |||
| 5 | 4066924 Cable harness Without anti theft alarm. | 1 | |||
| 5 | 9569740 Cable harness LHD | B234I | 1 | |||
| 6 | 9567272 Cable Audio system. bass | 1 | |||
| 7 | 4083291 Cable CD-changer | 1 | |||
| 8 | 9569740 Cable harness B204 | 1 | |||
| 8 | 9569740 Cable harness LHD | B234 | 1 | |||
| 9 | 4174959 Cable harness catalytic converter temperature | 1 | |||
| 10 | X | ||||
| 11 | 4433181 Cable harness seat-belt tensioners | LH | 1 | |||
| 11 | 4433173 Cable harness seat-belt tensioners | RH | 1 | |||
