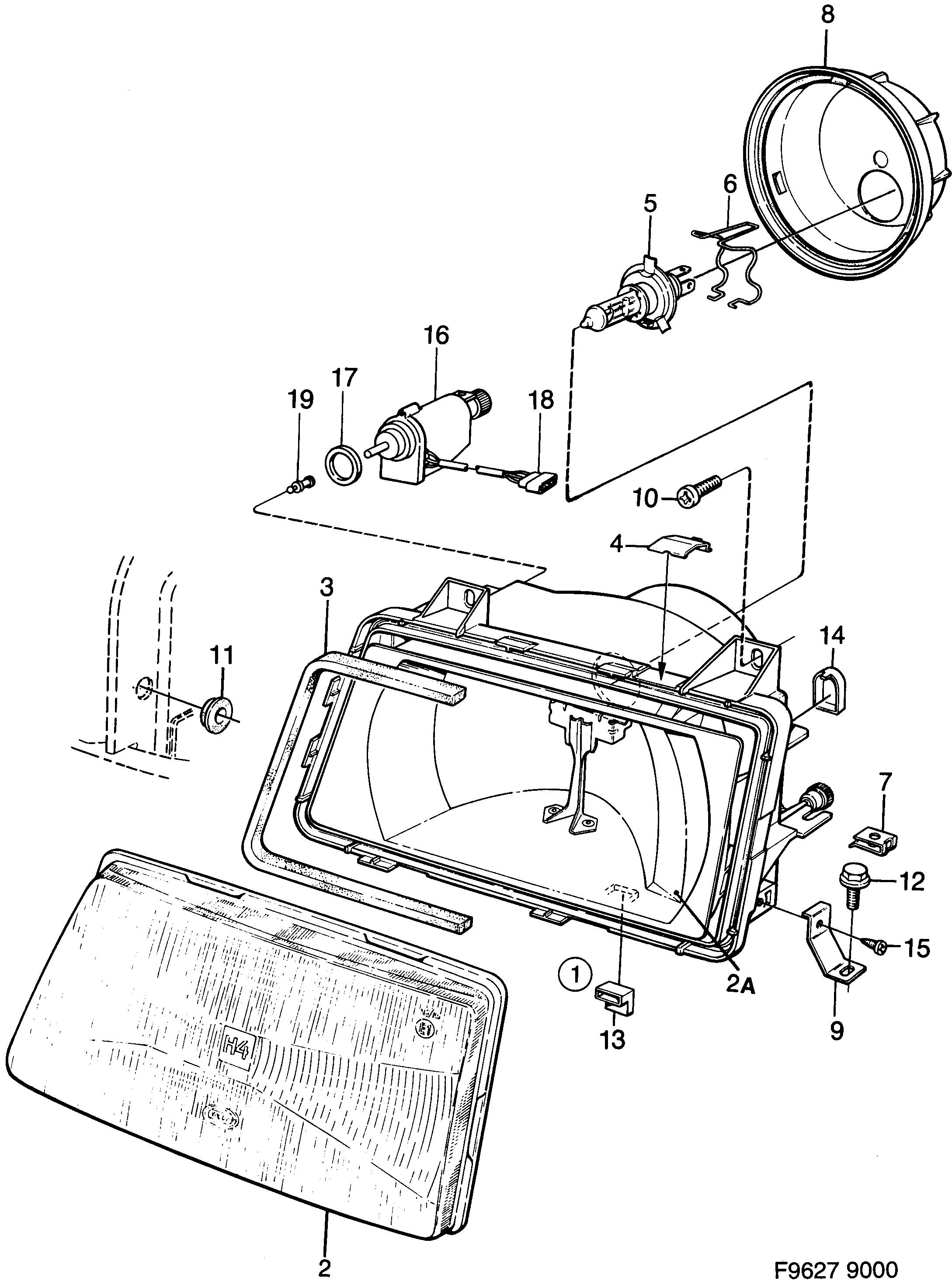

480: Electrical, general - Lighting - Headlamp
(1994 | 4D) | For 9000 (1994)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9125279 Headlamp For right-hand traffic | LH | 1 | |
| 1 | 9125287 32000388 Headlamp For right-hand traffic | RH | 1 | |
| 1 | 9125295 Headlamp For left hand traffic. | LH | 1 | |
| 1 | 9125303 Headlamp For left hand traffic. | RH | 1 | |
| 2 | 9521956 Headlamp lens For right-hand traffic | LH | 1 | |
| 2 | 9521964 Headlamp lens For right-hand traffic | RH | 1 | |
| 2 | 9525312 Headlamp lens For left hand traffic. | LH | 1 | |
| 2 | 9525320 Headlamp lens For left hand traffic. | RH | 1 | |
| 2A | 9125311 Reflector For right-hand traffic | LH | 1 | |
| 2A | 9125329 32000390 Reflector For right-hand traffic | RH | 1 | |
| 2A | 9125337 Reflector For left hand traffic. | LH | 1 | |
| 2A | 9125345 Reflector For left hand traffic. | RH | 1 | |
| 3 | 9521881 Seal | 1 | |
| 4 | 9556705 Clip | 9 | |
| 5 | 8510851 93169008 Bulb 40/238 210 009 | 1 | |
| 6 | 9564352 Spring | 1 | |
| 7 | 8550824 Clip | 1 | |
| 8 | 9525015 Cover | 2 | |
| 9 | 9525254 Attaching bracket LH | 1 | |
| 9 | 9525262 Attaching bracket RH | 1 | |
| 10 | 7973159 7973001 Screw | 4 | |
| 11 | 9504648 Bushing | 2 | |
| 12 | 7969223 Screw | 2 | |
| 13 | 9526351 Vent pipe | 2 | |
| 14 | 9526344 Bleeder cover | 2 | |
| 15 | 7973159 7973001 Screw | 2 | |
| 16 | 9566662 Electric motor headlamp adjustment | 2 | |
| 17 | 9529793 Sealing ring | 1 | |
| 18 | 9503327 Contact housing 3-pin, female | 1 | |
| 19 | 9569963 Adapter | 1 | |
8547846 Lamp adjustment kit headlamp adjustment | X |
