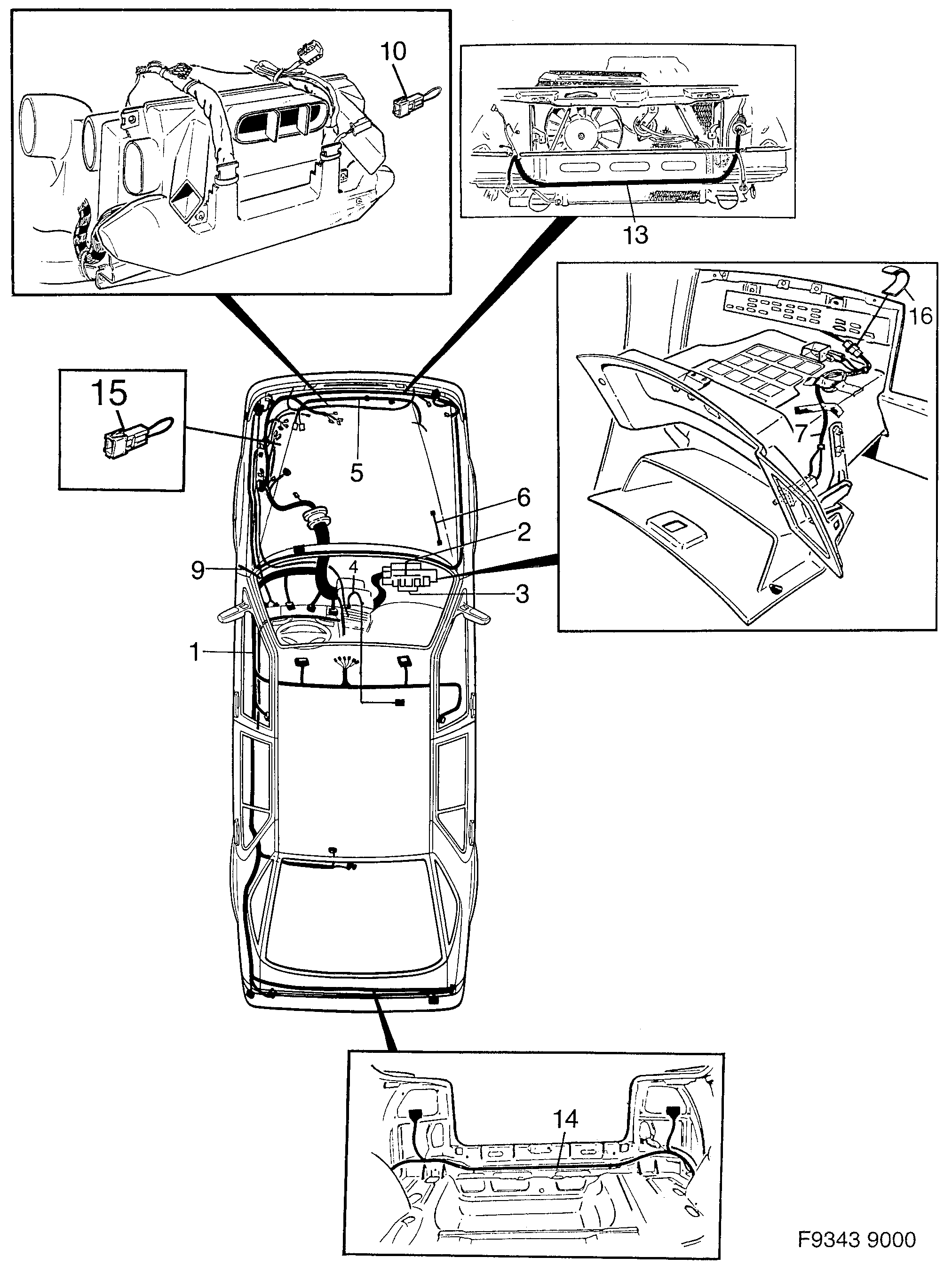

1530: Electrical, general - Wiring and fuses - Main and engine compartments
(1995) | For 9000 (1995)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4517025 Cable harness LHD | B204, B234 | 1 | |||
| 1 | 4517074 Cable harness LHD | B204, B234 | For cars with ACC. | 1 | |||
| 1 | 4517108 Cable harness LHD | B234TURBO | For cars with ACC. | TCS | 1 | |||
| 1 | 4517124 Cable harness LHD | B308 | 1 | |||
| 1 | 4517157 Cable harness LHD | B308 | For cars with ACC. | 1 | |||
| 1 | 4517355 Cable harness RHD | B204, B234 | 1 | |||
| 1 | 4517405 Cable harness RHD | B204, B234 | For cars with ACC. | 1 | |||
| 1 | 4517439 Cable harness RHD | TURBO | TCS | 1 | |||
| 1 | 4517454 Cable harness RHD | B308 | 1 | |||
| 1 | 4517488 Cable harness RHD | B308 | For cars with ACC. | 1 | |||
| 1 | 4517504 Cable harness LHD | B234 | 1 | |||
| 1 | 4517538 Cable harness LHD | B234TURBO | TCS | 1 | |||
| 1 | 4517553 Cable harness LHD | B308 | 1 | |||
| 2 | |||||
| 3 | |||||
| 4 | Cable harness radio | ||||
| 5 | 9523119 Cable harness thermostatic switch | AC | 1 | |||
| 6 | 9565144 Ground cable radio interference suppression | 1 | |||
| 7 | 4432662 Cable harness LHD | glove compartment | 1 | |||
| 9 | 4066981 Cable harness direction indicator | 2 | |||
| 10 | 9569740 Cable harness LHD | 1 | |||
| 13 | 4516829 Cable harness Front. | 1 | |||
| 13 | 4516837 Cable harness I | Front. | SAI | 1 | |||
| 13 | 4516894 Cable harness LHD | B234I | Front. | 1 | |||
| 13 | 4516936 Cable harness LHD | Front. | 1 | |||
| 14 | 4537387 Cable harness Rear. | 1 | |||
| 14 | 4537338 Cable harness Rear. | 1 | |||
| 14 | 4537353 Cable harness LHD | Rear. | 1 | |||
| 14 | 4537320 Cable harness LHD | Rear. | 1 | |||
| 15 | 4692596 Cable harness 1995-1995 | daylight driving lights | 1 | |||
| 16 | 4665840 4948808 Tape | 1 | |||
