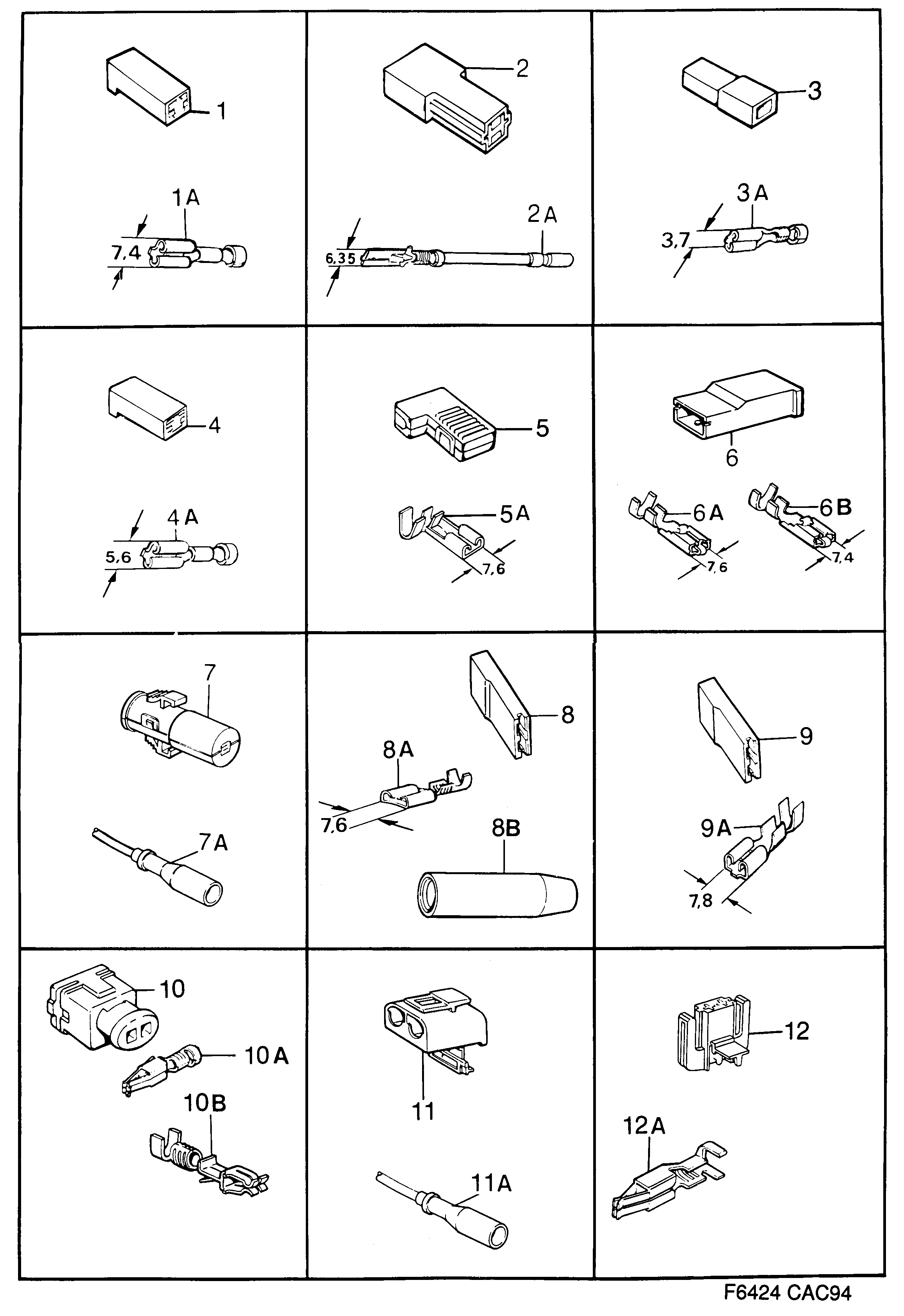

360: Electrical, connector - Wiring and fuses - Contact housing etc
(1995) | For 9000 (1995)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 7155112 Contact housing 1-pin, female | IGNITION PULS,LIGHT GEAR INDICATOR,MAKE UP MIRROR | X | |
| 1A | 7971708 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 2 | 7155120 Contact housing 1-pin, male | EL-MIRROR,EL-CENTRAL | X | |
| 2A | 8522542 Cable terminal AREA,1,0-2,6 MM2 | X | |
| 3 | 8530115 Contact housing 1-pin, male | LOUDSPEAKER | X | |
| 3A | 8530107 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 4 | 8533184 Contact housing 1-pin, male | LOUDSPEAKER | X | |
| 4A | 8582439 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 5 | 8521692 Contact housing 1-pin, female | REAR DEMIST,GROUND LIGHT INSTEP | X | |
| 5A | 8522526 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 6 | 8541229 Insulating sleeve 1-pin, male | LIGHT INSTEP,LIGHT NUM- BER PLATE,READING LAMP, SEAT BELT WARNING SWITCH SPOT LIGHT | X | |
| 6A | 8541203 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 6B | 8560476 Cable terminal AREA,0,9-2,0 MM2 | X | |
| 7 | 9503418 Connector housing 1-pin, female | COMPRESSOR | X | |
| 7A | 8547796 Connector | X | |
| 8 | 8516916 Insulation 1-pin, female | THERMO CONTACT,LIGHT ASH TRAY,HORN,LIGHT LUGGAGE COMPARTMENT SWITCH HAND BRAKE JOINT,JOINT PIECE REAR DOOR,ANTI THEFT ALARM | X | |
| 8A | 8514036 Cable terminal AREA,1,5-2,5 MM2 | X | |
| 8B | 9569997 Protection | X | |
| 9 | 8378630 Contact housing 2-pin, female | PEDAL CONTACT SPEED CONTROL | X | |
| 9A | 8522575 Cable harness AREA,0,5-1,4 MM2 | X | |
| 10 | 8593899 Contact housing 2-pin, female | AUXILIARY AIR VALVE FUEL SYSTEM,VENTILATION | X | |
| 10A | 8521593 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 10B | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 11 | 9503319 Contact housing 2-pin, female | EL. WINDOW REGULATOR STD FAN,LEVEL GUARD RADIATOR,LEVEL SWITCH WASHER MOTOR,FAN AC FOG LIGHT,JOINT PIECE OUTER TEMP,JOINT PIECE THERMO CONTACT,MICRO SWITCH,FAN,FOG LIGHT EXTRA,ABS,BY-PASS | X | |
| 11A | 8547796 Connector | X | |
| 12 | 9124157 30520661 Contact housing 2-pin, female | LIGHT MIRROR,ACC,LIGHT CONTROLS,FAN AC,JOINT TRUNK LID,CENTRAL LOCK TANK HATCH,DOME LAMP SUN ROOF | X | |
| 12A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 12A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X |
