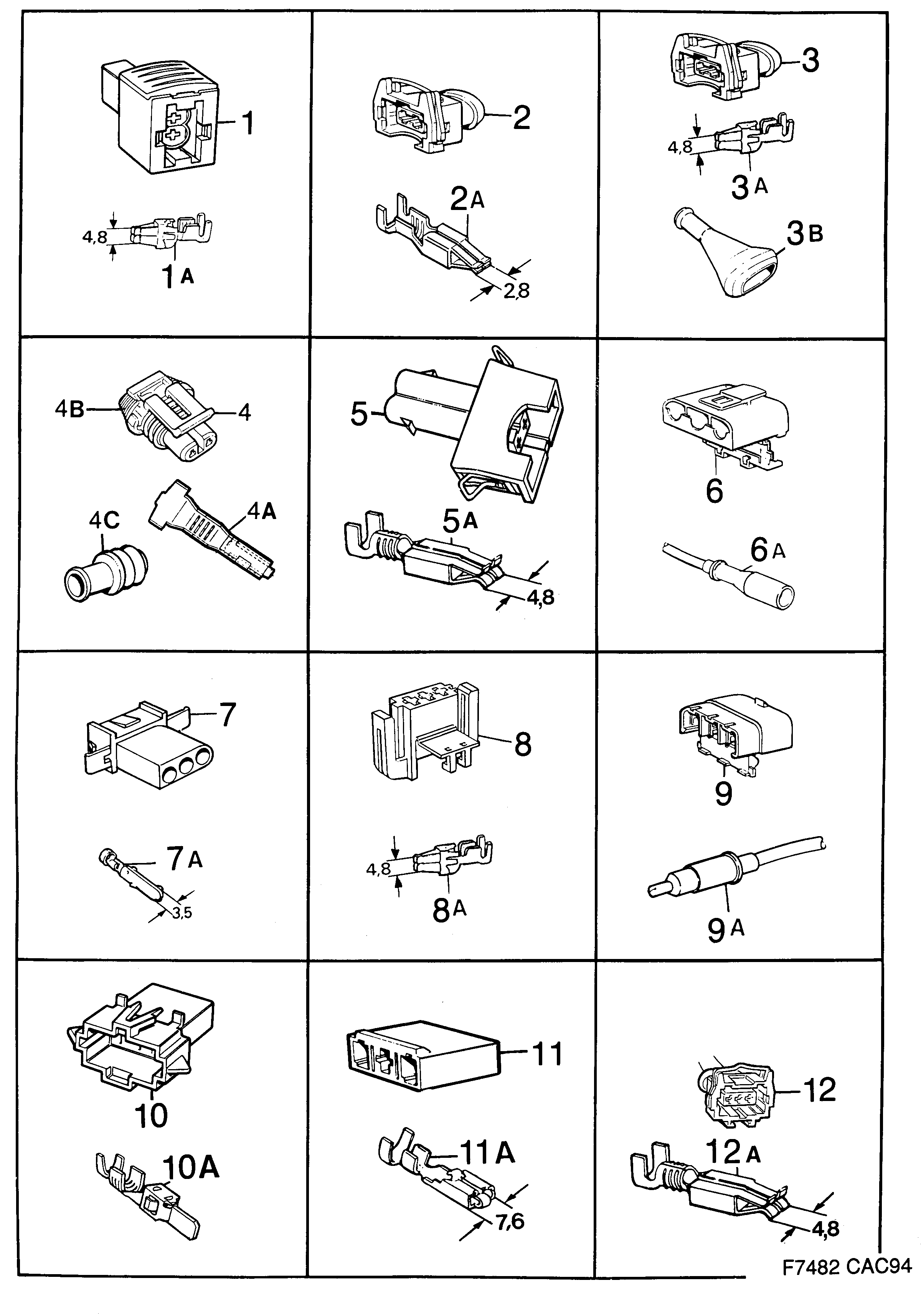

420: Electrical, connector - Wiring and fuses - Contact housing etc
(1995) | For 9000 (1995)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4113411 12788982 Connector housing 2-pin, female | JOINT PIECE ABS UNIT | X | |
| 1A | 4354171 12970428 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 2 | 4178414 12790247 Connector housing 2-pin, female | DUMP VALVE,BY-PASS INJECTION VALVE,TEMP SENSOR,MAIN VALVE JOINT PIECE PEDAL SENSOR AUXILIARY AIR VALVE THERMO SWITCH,KNOCK SENSOR | X | |
| 2A | 4061586 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 3 | 9519422 Contact housing 2-pin, female | HYDRAULIC PUMP | X | |
| 3A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 3B | 8579955 Protection | X | |
| 4 | 4201224 12790252 Connector housing 2-pin, female | REVERS LIGHT CONTACT | X | |
| 4A | 4418505 Cable terminal AREA,0,5-1,0 MM2 | X | |
| 4B | 4201232 12789184 Locking | X | |
| 4C | 4419305 Seal red | X | |
| 4C | 4419313 Seal blue | X | |
| 5 | 4433439 Connector housing B308 | 2-pin, female | INJECTION VALVES | X | |
| 5A | 4061586 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 6 | 9503277 Contact housing 3-pin, female | HEADLIGHT WIPERS,WIPER MOTOR,ABS,FAN,BY-PASS, HEADLIGHT LEVELLING THEFT ALARM DOOR PRESSURE MONITOR AC | X | |
| 6A | 8547796 Connector | X | |
| 7 | 8564924 Contact housing 3-pin, male | NUMBER PLATE LIGHT JOINT PIECE CABLE HAR- NESS DOORS,JOINT PIECE TRUNK LID | X | |
| 7A | 8544322 Cable terminal AREA 2,0-4,0 MM2 | X | |
| 8 | 9124165 Contact housing 3-pin, female | JOINT PIECE,LIGHT ASH TRAY REAR,ELECTRONIC UNIT REOSTAT,CLOCK SPEEDOMETER,REOSTAT JOINT PIECE PASSENGER SEAT,ELECTRONIC UNIT SPEED WARNING DEVICE | X | |
| 8A | 9120791 30520557 Cable terminal AREA 2,5-4,0 MM2 | X | |
| 9 | 9503327 Contact housing 3-pin, male | PRESSURE MONITOR AC R134A | X | |
| 9A | 8547770 Connector | X | |
| 10 | 4117669 Connector housing 3-pin, male | EL-ADJUSTED SEAT | X | |
| 10A | 4115580 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 11 | 9507658 Contact housing 3-pin, female | SWITCH INTERIOR LIGHT | X | |
| 11A | 8560476 Cable terminal AREA,0,9-2,0 MM2 | X | |
| 12 | 4432316 12790262 Connector housing 3-pin, female | SOLENOID VALVE,CRANK SHAFT SENSOR,THROTTLE POT,PRESSURE SENSOR | X | |
| 12A | 4061586 Cable terminal AREA,1,0-2,5 MM2 | X |
