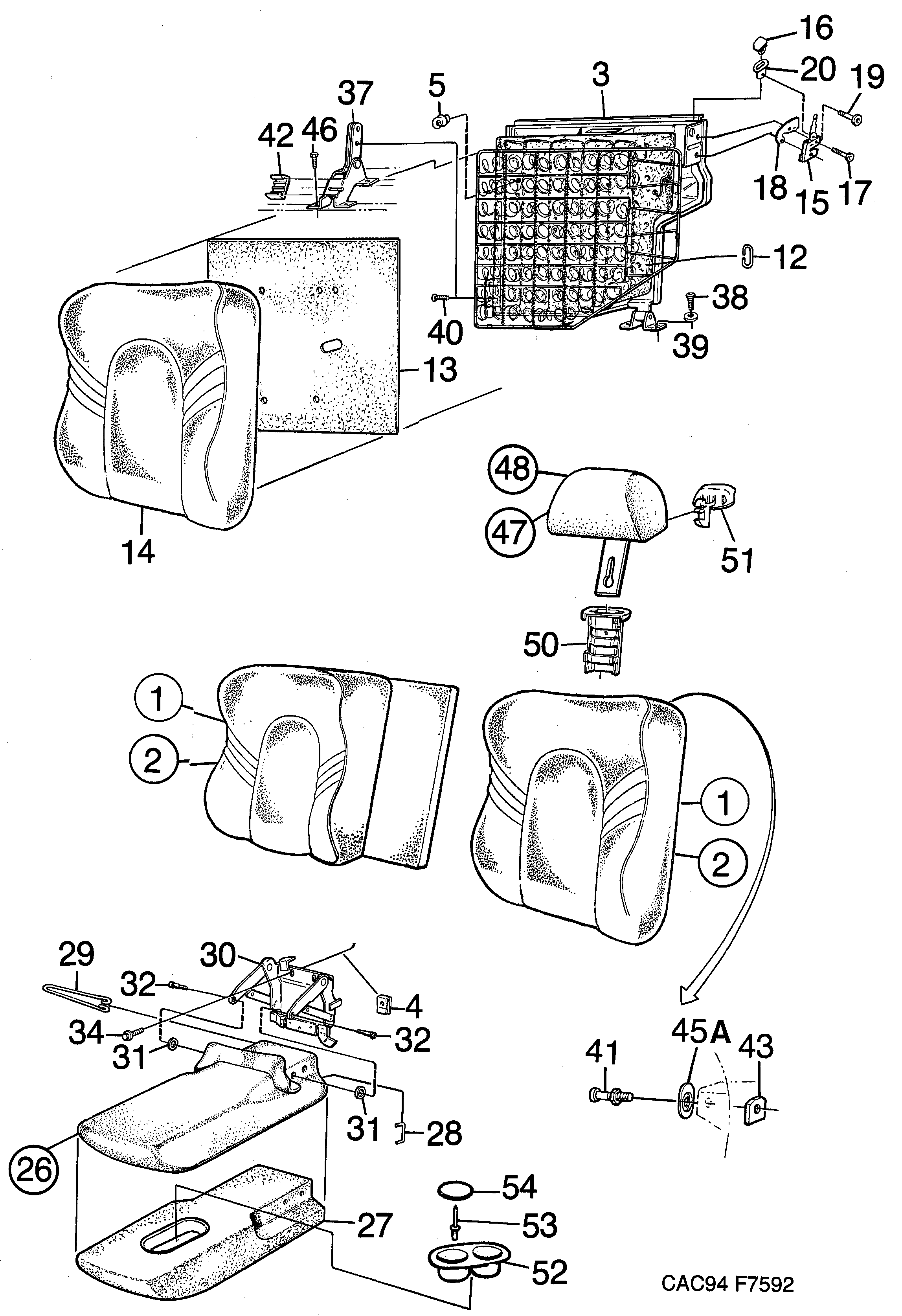

1530: Car body, internal - Other interior equipment - Rear seat - Backrest cushion
(1994 - 1996 | 5CS) | For 9000 (1995)
For cars with upholstery ''SPORTS DESIGN''
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9699067 Backrest cushion 1994-1996 | State upholstery colour and VIN | LH | 1 | |
| 1 | 9699034 Backrest cushion 1994-1996 | State upholstery colour and VIN | RH | 1 | |
| 2 | 4629507 Backrest cushion 1994-1996 | Without upholstery | LH | 1 | |
| 2 | 4629515 Backrest cushion 1994-1995 | Without upholstery | RH | 1 | |
| 3 | 4313839 30546523 Spring housing 1994-1996 | LH | 1 | |
| 3 | 4313821 30546522 Spring housing 1994-1996 | RH | 1 | |
| 4 | 7972573 92150164 Clip nut 1994-1996 | 4 | |
| 5 | 9781469 Hook 1994-1996 | X | |
| 6 | 7972516 92153060 Rivet 1994-1996 | X | |
| 12 | 9450685 Clamp 1994-1996 | 3 | |
| 13 | 9696691 Padding 1994-1996 | 1 | |
| 14 | 4629366 Foam plastic cushion 1994-1996 | LH | 1 | |
| 14 | 4629358 Foam plastic cushion 1994-1996 | RH | 1 | |
| 15 | 4629374 Lock 1994-1996 | LH | 1 | |
| 15 | 4629382 Lock 1994-1996 | RH | 1 | |
| 16 | 9755935 Handle 1994-1996 | 1 | |
| 17 | 7977028 Screw 1994-1996 | 2 | |
| 18 | 9789801 Spacer 1994-1996 | LH | 1 | |
| 18 | 9783309 Spacer 1994-1996 | RH | 1 | |
| 19 | 4532867 Lock pin 1994-1996 | 1 | |
| 20 | 4532818 Ferrule 1994-1996 | 1 | |
| 26 | 9672650 Arm rest 1994-1995 | 1 | |
| 27 | 9781337 Cushion 1994-1995 | 1 | |
| 28 | 8438467 Staple 1994-1996 | 2 | |
| 29 | 9445909 Clamp 1994-1996 | 1 | |
| 30 | 9593948 Bracket 1994-1996 | 1 | |
| 31 | 8457541 Washer 1994-1996 | 4 | |
| 32 | 4532529 Shoulder screw 1994-1996 | 4 | |
| 34 | 7971294 Screw 1994-1996 | 4 | |
| 37 | 9761974 Joint 1994-1996 | 1 | |
| 38 | 7976897 11900016 Screw 1994-1996 | 2 | |
| 39 | 7916497 92153033 Washer 1994-1996 | 2 | |
| 40 | 7981921 Screw 1994-1996 | 4 | |
| 41 | 4312948 30542669 Lock pin -1996 | 2 | |
| 42 | 9789769 Plastic buffer 1994-1996 | 1 | |
| 43 | 9765272 Nut plate -1996 | 2 | |
| 45A | 4288189 Washer 1994-1996 | 2 | |
| 46 | 8059552 92151821 Screw 1994-1996 | 4 | |
| 47 | 9699182 Head restraint 1994-1996 | State upholstery colour and VIN | 2 | |
| 48 | 4315412 30546820 Head restraint 1994-1996 | Without upholstery | 1 | |
| 50 | 4031563 Sleeve 1994-1996 | 1 | |
| 51 | 4136610 Catch 1994-1996 | 1 | |
4475547 Mounting kit 1994-1996 | 1 |
