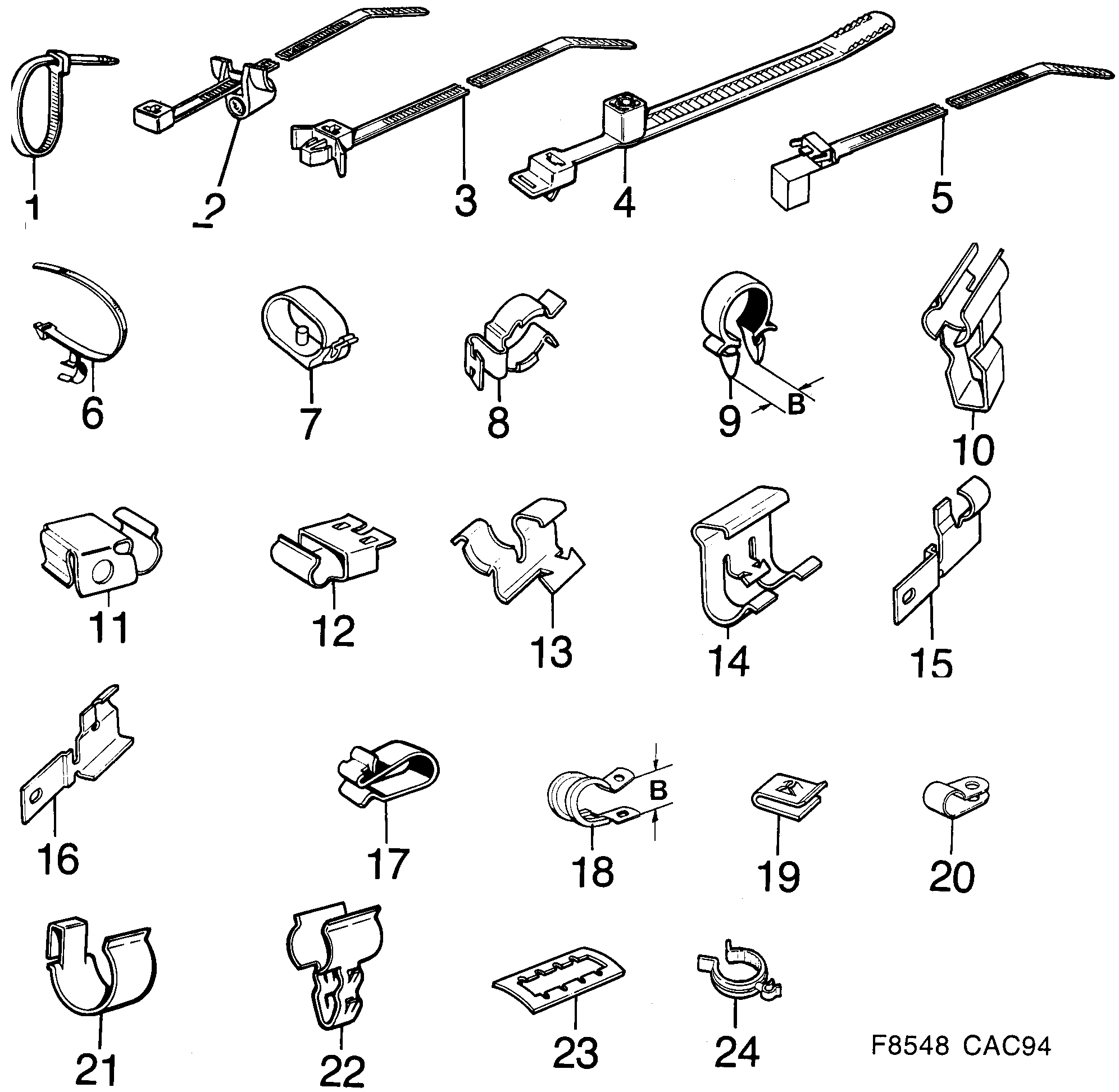

2010: Electrical, general - Wiring and fuses - Bushings, clamps
(1994 - 1998) | For 9000 (1996)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 7971864 Tensioning band L=118 MM | X | |
| 1 | 7971872 Tensioning band L=160 MM | X | |
| 1 | 7971880 11900513 Tensioning band L=259 MM | X | |
| 1 | 7971898 Tensioning band L=304 MM | X | |
| 2 | 4807939 Tensioning band L=259 MM | X | |
| 3 | 8552663 Tensioning band L=200 MM,Ø 6,5 MM | X | |
| 3 | 9528019 Tensioning band L=212 MM,Ø 8 MM | X | |
| 4 | 9525221 Tensioning band L=150 MM | X | |
| 4 | 4353660 7984750 Tensioning band L=190 MM | X | |
| 5 | 7984750 Tensioning band L=190 MM | X | |
| 5 | 9124603 30520681 Tensioning band L=215 MM | X | |
| 5 | 4063681 Tensioning band L=220 MM | X | |
| 6 | 7398944 Tensioning band L=100 MM | X | |
| 6 | 7593221 30507607 Tensioning band L=214 MM | X | |
| 6 | 7398977 Tensioning band L=273 MM | X | |
| 7 | 7975642 Clamp 28 MM X 16 MM | X | |
| 7 | 7975659 Clamp 35 MM X 20 MM | X | |
| 7 | 7975667 Clamp 40 MM X 24 MM | X | |
| 8 | 9507914 Clip | X | |
| 9 | 9365164 Clip B=12,5 MM | X | |
| 9 | 8530917 Clip B=16 MM | X | |
| 9 | 8536419 11900515 Clip B=18,5 MM | X | |
| 10 | 4113999 Clip B234 | compressor | AC | X | |
| 11 | 8856916 Clip B234 | oil level sensor | X | |
| 13 | 9508037 Clamp | X | |
| 14 | 9508045 30525965 Clamp | X | |
| 15 | 9508532 Clamp | X | |
| 16 | 9508524 Clamp | X | |
| 17 | 7156409 Clamp | X | |
| 18 | 7969348 Clamp B=6 MM | X | |
| 18 | 7969363 Clamp B=9 MM | X | |
| 18 | 8566135 Clamp B=11 MM | X | |
| 18 | 8566143 Clamp B=11 MM | X | |
| 18 | 7969421 Clamp B=19 MM | X | |
| 18 | 7969462 4940995 Clamp B=25 MM | X | |
| 18 | 7969488 Clamp B=28 MM | X | |
| 19 | 7967995 Clip nut | X | |
| 19 | 7972573 92150164 Clip nut wiring harness | X | |
| 20 | 9517871 Clamp tailgate | X | |
| 20 | 4504924 9128519 Clip B308 | Timing gear casing | X | |
| 21 | 7933443 Clip | X | |
| 21 | 7121239 Clamp | X | |
| 22 | 9555913 Clip | X | |
| 24 | 4402095 30550883 Double clamp | X |
