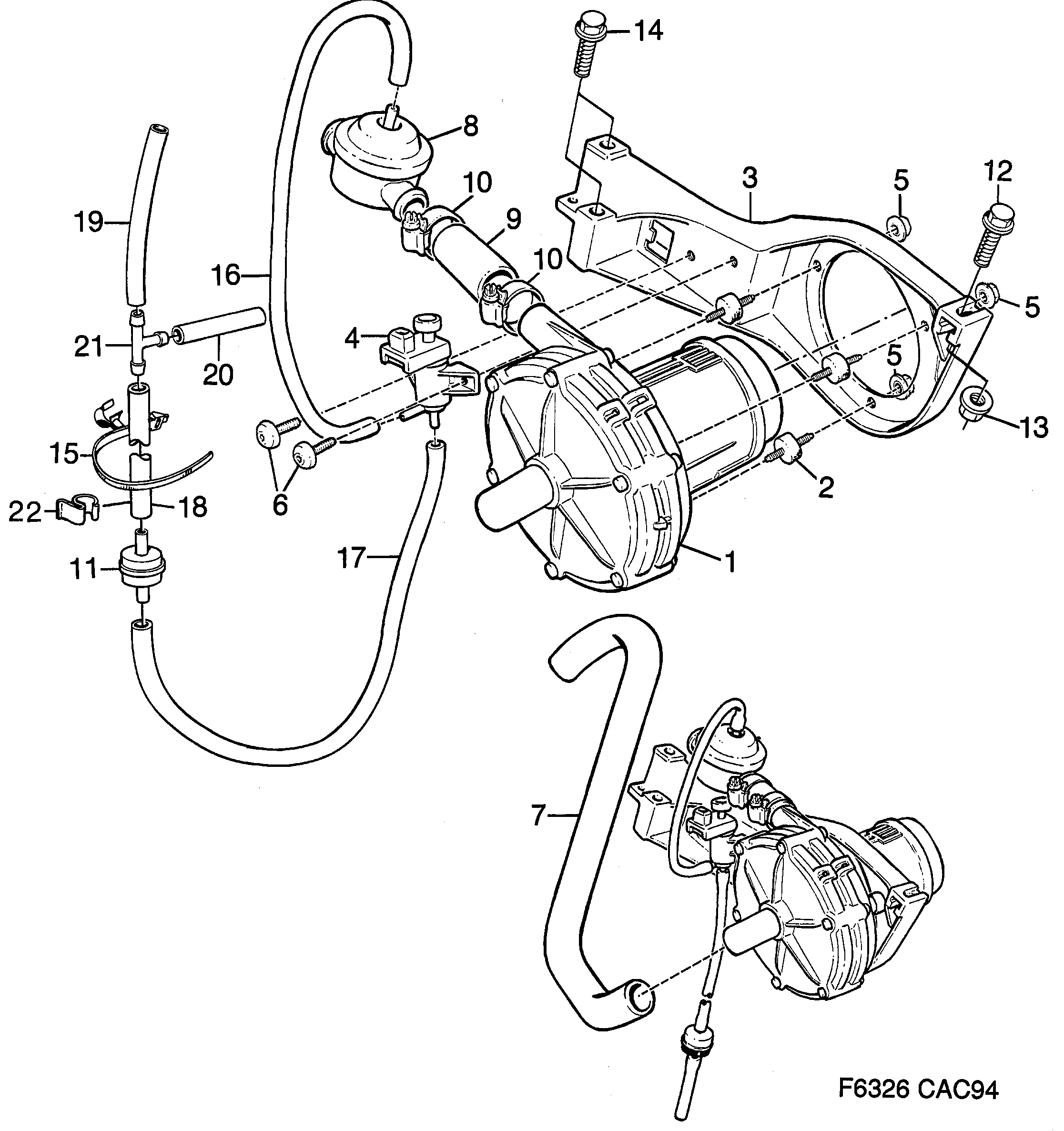

1500: Engine - Intake and exhaust system - SAI - Air pump
(1994 - 1997) | For 9000 (1997)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4239083 Secondary air injection pump | 1 | |
| 2 | 4235768 9281374 Rubber spacer | 1 | |
| 3 | 4301420 Bracket | 1 | |
| 4 | 4394078 90466214 Secondary air injection control valve | 1 | |
| 5 | 7977929 11900451 Nut | 3 | |
| 6 | 7971294 Screw | 2 | |
| 7 | 4360707 Hose 4-CYL | 1 | |
| 7 | 4390837 Hose 6-CYL | 1 | |
| 8 | 4228011 Secondary air injection switching valve | 1 | |
| 9 | 4390852 Hose | 1 | |
| 10 | 7970072 Hose clamp | 2 | |
| 11 | 4023297 12793343 Non-return valve | 1 | |
| 12 | 7399900 Hexagon screw | 1 | |
| 13 | 8029555 8151227 Nut | 1 | |
| 14 | 7976913 92151521 Screw 1995-1997 | 2 | |
| 15 | 7398944 Tensioning band | 1 | |
| 16 | 9136243 Vacuum hose Sold in 5M lengths | L=290MM | X | |
| 17 | 9136243 Vacuum hose 1995-1997 | 4-CYL | Sold in 5M lengths | L=1000MM | X | |
| 17 | 9136243 Vacuum hose 1995-1997 | 6-CYL | Sold in 5M lengths | L=1250MM | X | |
| 18 | 9136243 Vacuum hose Sold in 5M lengths | L=360MM | X | |
| 19 | 9136243 Vacuum hose Sold in 5M lengths | L=60MM | X | |
| 20 | 9136243 Vacuum hose Sold in 5M lengths | L=240MM | X | |
| 21 | 8366791 12791937 Pipe | 1 | |
| 22 | 9383043 12755295 Clamp | 2 | |
9136243 Vacuum hose Sold in 5M lengths | L=5000MM | X |
