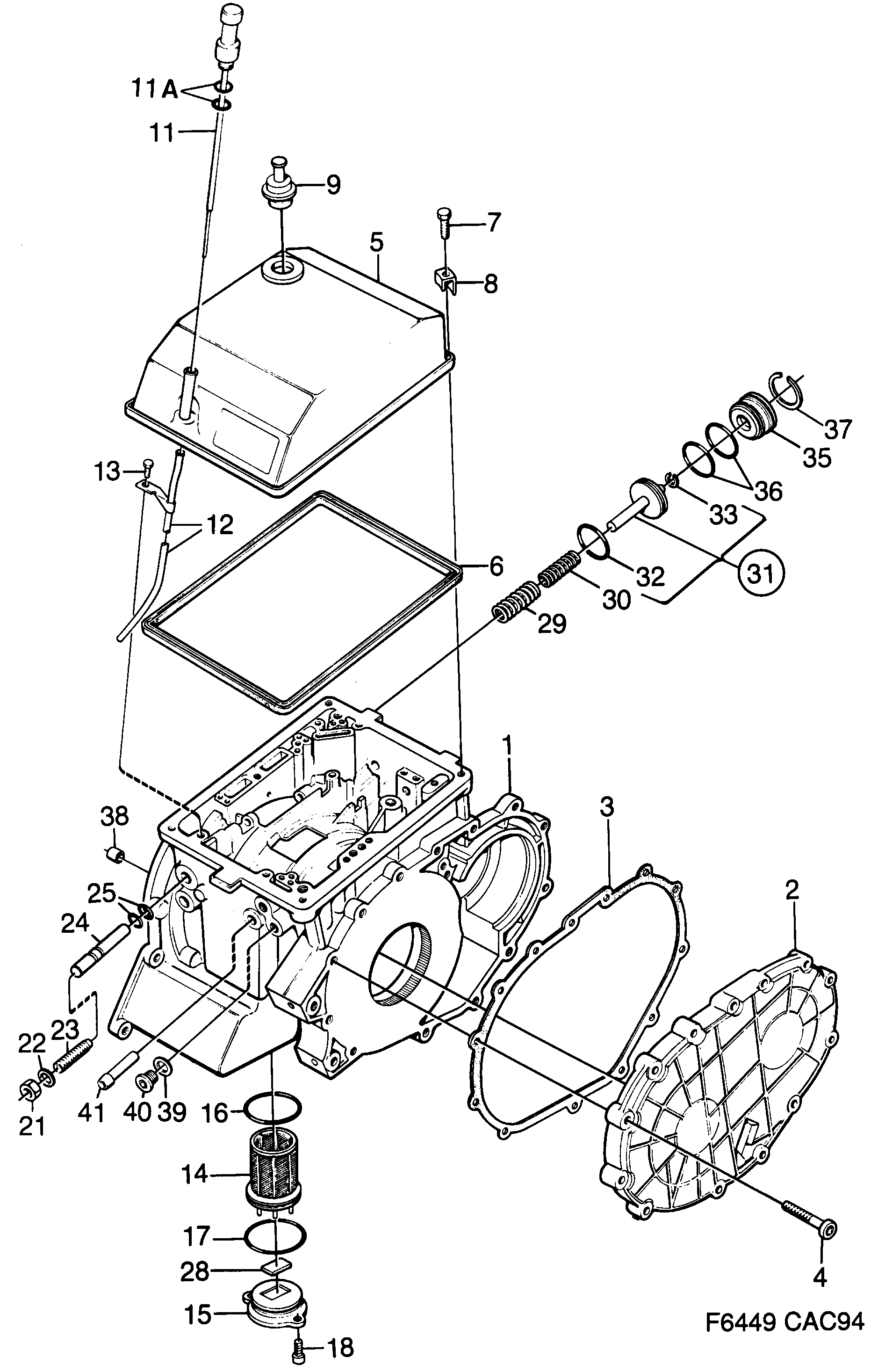

570: Transmission - Gearbox, automatic - Gearcase, cover
(1994 - 1998 | A) | For 9000 (1997)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 5259312 Gearbox housing TURBO | 1 | |||
| 1 | 5259163 Gearbox housing I | 1 | |||
| 2 | 7597784 Cover | 1 | |||
| 3 | 4280681 4477378 Gasket -2002 | 1 | |||
| 4 | 4477311 Screw | 13 | |||
| 5 | 4775086 Cover 1995-1998 | 1 | |||
| 6 | 7592330 Gasket | 1 | |||
| 7 | 7593759 Screw | 4 | |||
| 8 | 4120671 Holder | 4 | |||
| 9 | 7597222 Air vent valve -2001 | 1 | |||
| 11 | 4026449 Dipstick | 1 | |||
| 11A | 7594880 O-ring | 1 | |||
| 12 | 4279931 Tube | 1 | |||
| 13 | 7557887 Screw | 1 | |||
| 14 | 7599525 Filter | 1 | |||
| 15 | 7577562 Cover | 1 | |||
| 16 | 7594187 O-ring | 1 | |||
| 17 | 7597776 O-ring | 1 | |||
| 18 | 4026902 Screw | 3 | |||
| 21 | 4026753 Nut | 1 | |||
| 22 | 7933872 Washer | 1 | |||
| 23 | 7554934 Adjustment screw | 1 | |||
| 24 | 4119061 Bolt 4-CYL | 1 | |||
| 24 | 4385282 Bolt 6-CYL | 1 | |||
| 25 | 7594179 O-ring | 2 | |||
| 28 | 7576788 Magnet | 1 | |||
| 29 | 7558232 Compression spring | 1 | |||
| 30 | 7558240 Compression spring | 1 | |||
| 31 | 7576937 Piston | 1 | |||
| 32 | 7552250 O-ring | 1 | |||
| 33 | 7559008 Retaining ring | 1 | |||
| 35 | 7554967 Cover | 1 | |||
| 36 | 7556996 O-ring | 2 | |||
| 37 | 7557093 Lock ring | 1 | |||
| 38 | 7573819 Sleeve | 1 | |||
| 39 | 7558356 Sealing ring | 2 | |||
| 39 | 4385704 Sealing ring FA 43005, 43009, 43205, 43209, 43302 | 2 | |||
| 40 | 7558521 Plug | 2 | |||
| 40 | 4280673 Plug FA 43005, 43009, 43205, 43209, 43302 | 2 | |||
| 41 | 7571490 Tube | 1 | |||
7575525 Repair kit Filter insert | X | ||||
7496094 Gasket kit Stage 1-2 | X | ||||
7496102 Gasket kit Stage 3 | X | ||||
8781668 Oil See SI 472-1462 | X | ||||
