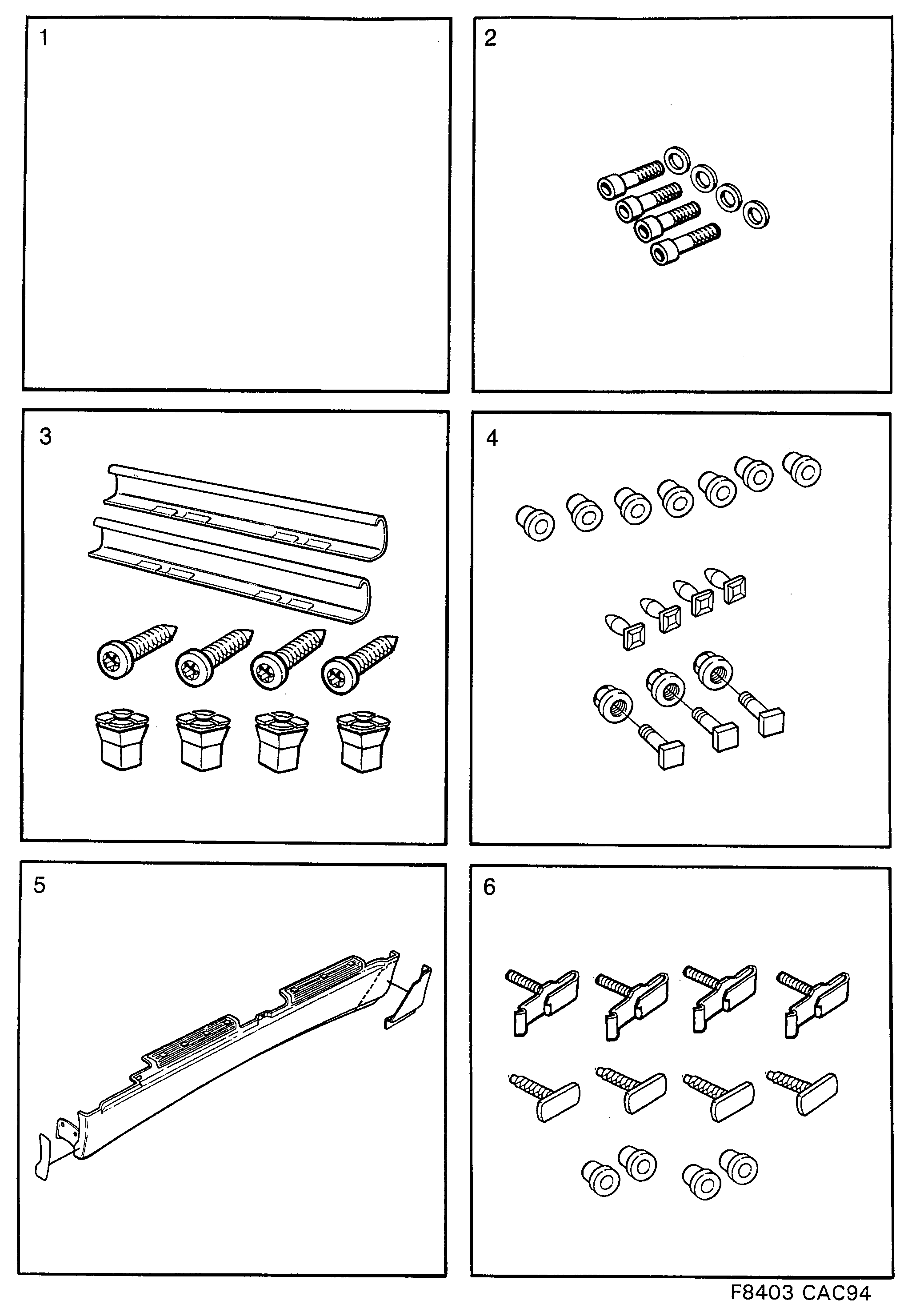

1530: Car body, external - Kits - Car body, external
(1994 - 1998) | For 9000 (1997)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2 | 9240086 12804284 Mounting kit license plate | X | |
7398506 Plastic washer Not as separate spare part. | 4 | ||
7977390 Screw Not as separate spare part. | 4 | ||
7970601 92153219 Screw Not as separate spare part. | 4 | ||
| 3 | 8284531 Mounting kit | X | |
windscreen | |||
4250320 Decor strip | 1 | ||
7970601 92153219 Screw | 4 | ||
7975261 Nut | 4 | ||
9278334 Connector | 2 | ||
| 4 | 7496029 Mounting kit Front. Wheelhouse moulding | X | |
7373269 Bushing | 8 | ||
7399470 Screw | 8 | ||
7399488 Nut | 8 | ||
| 4 | 7496037 Mounting kit Rear. Wheelhouse moulding | X | |
7373269 Bushing | 7 | ||
7399470 Screw | 3 | ||
7399488 Nut | 3 | ||
9253329 Clip | 4 | ||
| 5 | 8285439 Sill cover 5CSAERO | LH | X | |
4447124 Protective foil | 1 | ||
8662843 Protective foil | 1 | ||
6959464 Screw | 2 | ||
4435210 Sill cover Not as separate spare part. | 1 | ||
| 5 | 8285421 Sill cover 5CSAERO | RH | X | |
4447116 Protective foil | 1 | ||
8662835 Protective foil | 1 | ||
6959464 Screw | 2 | ||
4435202 Sill cover Not as separate spare part. | 1 | ||
| 6 | 7497589 Mounting kit 5CSAERO | X | |
4087151 Screw | 4 | ||
4090197 Clip | 6 | ||
4484796 Sealing strip | 2 | ||
7373269 Bushing | 6 |
