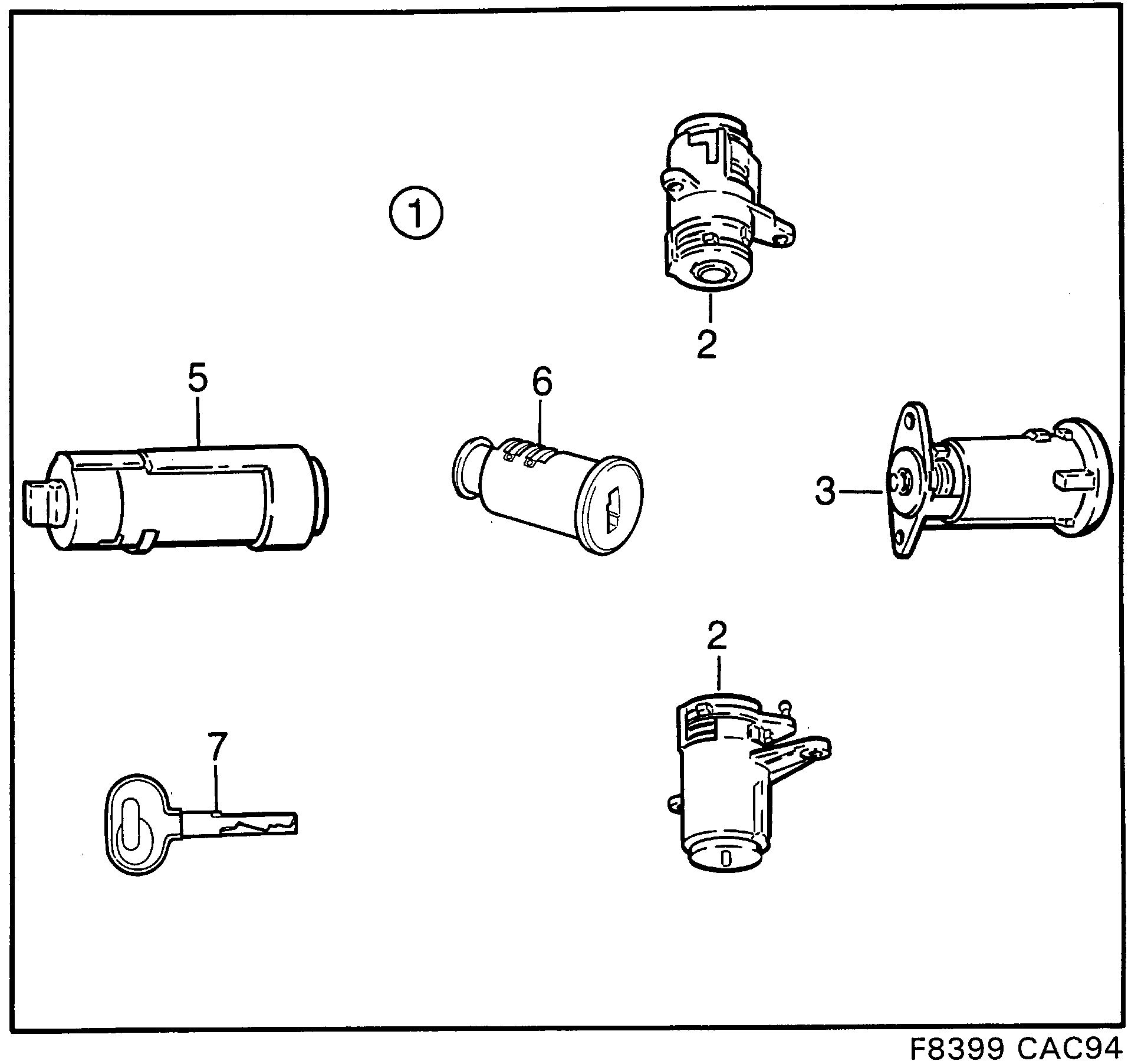

780: Car body, external - Doors, boot lid - Lock - Lock cylinder set
(1994 - 1998) | For 9000 (1997)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 7497324 Lock kit 1995-1997 | DOOR LH AND RH,IGNITION AND TRUNK LID | 1 | |
| 1 | 7497324 Lock kit 1994-1998 | DOOR LH AND RH,IGNITION AND TRUNK DOOR | 1 | |
9746397 Door mechanism DOOR,LH,WITH 2 KEYS | 1 | ||
9746405 Door mechanism DOOR,RH,WITH 2 KEYS | 1 | ||
8284911 Lock 1995-1997 | TRUNKLID WITH 2 KEYS | 1 | ||
8284911 Lock TRUNKDOOR WITH 2 KEYS | 1 | ||
9746454 Lock cylinder IGNITION,WITH 2 KEYS | 1 | ||
Glove compartment lock GLOVE COMPARTMENT | 1 | ||
LOCK Lock cylinders may be ordered to match original equipment locks. Use the part number listed, stating the key code as additional information. These cylinders are delivered without keys. | |||
| 2 | 6963300 Lock cylinder DOOR,LH STATE KEY CODE | X | |
| 2 | 6963318 Lock cylinder DOOR,RH STATE KEY CODE | X | |
| 3 | 9086133 Lock cylinder 1995-1997 | TRUNK LID STATE KEY CODE | X | |
| 3 | 9086133 Lock cylinder TRUNK DOOR STATE KEY CODE | X | |
| 5 | 8960221 Lock cylinder IGNITION,STATE KEY CODE | X | |
| 6 | 4555181 Glove compartment lock GLOVE COMPARTMENT, STATE KEY CODE | X | |
| 7 | 9746603 Key STATE KEY CODE | X | |
| 7 | 9698077 Key BLANK | X |
