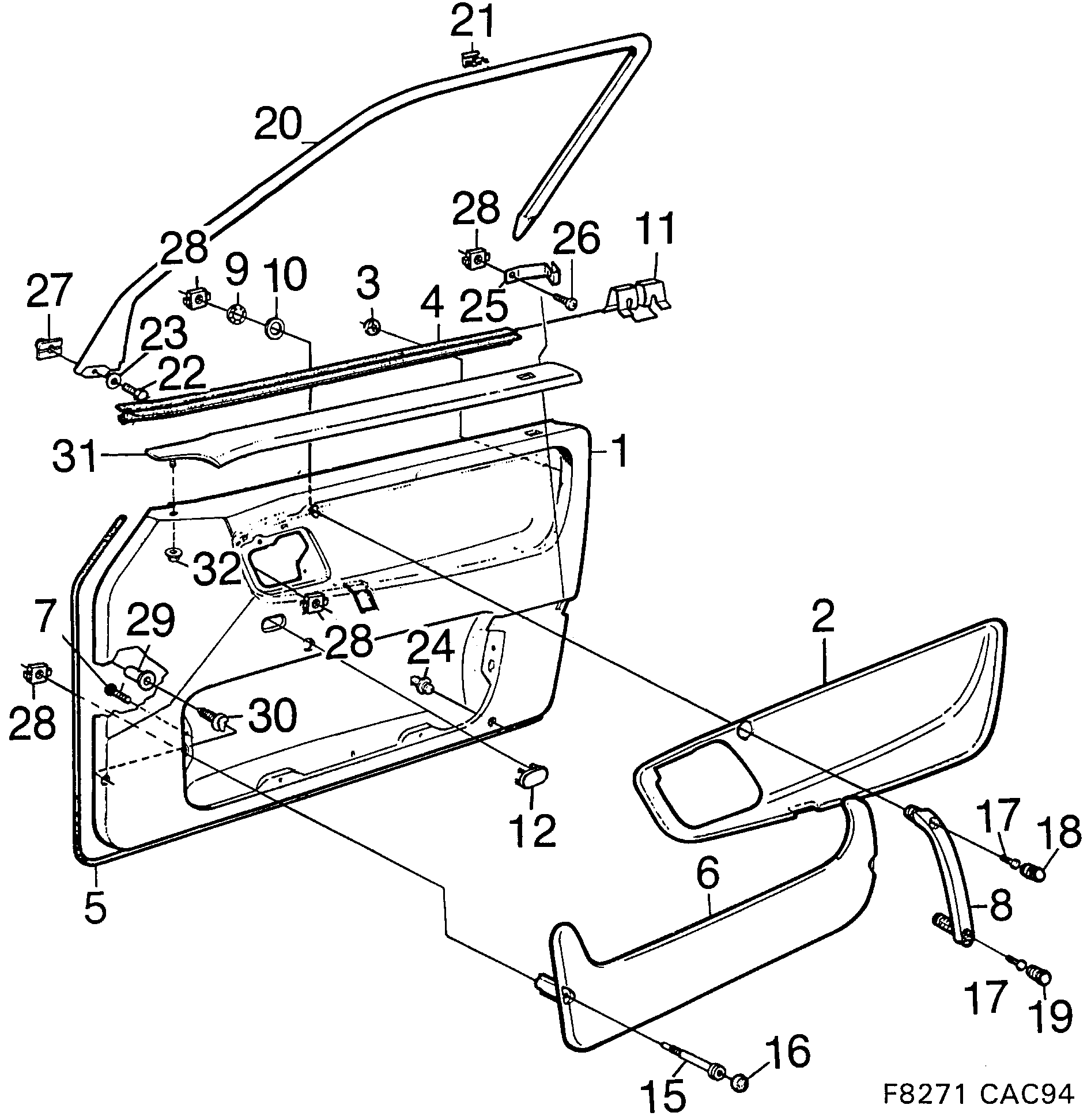

930: Car body, internal - Upholstery - Door trim - Front door
(1997) | For 9000 (1997)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4818951 Door trim Light beige | LH | 1 | |
| 1 | 4818969 Door trim Light beige | RH | 1 | |
| 2 | 4637344 Arm rest Light beige | LH | 1 | |
| 2 | 4637351 Arm rest Light beige | RH | 1 | |
| 1 | 4819017 Door trim Light beige | LH | 1 | |
| 1 | 4819025 Door trim Light beige | RH | 1 | |
| 2 | 4511226 Arm rest Light beige | LH | 1 | |
| 2 | 4511234 Arm rest Light beige | RH | 1 | |
| 1 | 4818936 Door trim Light grey | LH | 1 | |
| 1 | 4818944 Door trim Light grey | RH | 1 | |
| 2 | 4637328 Arm rest Light grey | LH | 1 | |
| 2 | 4637336 Arm rest Light grey | RH | 1 | |
| 1 | 4818993 Door trim Light grey | LH | 1 | |
| 1 | 4819009 Door trim Light grey | RH | 1 | |
| 2 | 4486205 Arm rest Light grey | LH | 1 | |
| 2 | 4486213 Arm rest Light grey | RH | 1 | |
| 1 | 4818910 Door trim Black | LH | 1 | |
| 1 | 4818928 Door trim Black | RH | 1 | |
| 2 | 4637286 Arm rest Black | LH | 1 | |
| 2 | 4637294 Arm rest Black | RH | 1 | |
| 1 | 4818977 Door trim Black | LH | 1 | |
| 1 | 4818985 Door trim Black | RH | 1 | |
| 2 | 4273934 Arm rest Black | LH | 1 | |
| 2 | 4273942 Arm rest Black | RH | 1 | |
| 3 | 9695081 Washer | X | |
| 4 | 9660986 Sealing strip LH | 1 | |
| 4 | 9660838 Sealing strip RH | 1 | |
| 5 | 9895699 Strip | 2 | |
| 6 | 4263638 Pocket Light beige | LH | 1 | |
| 6 | 4263620 Pocket Light beige | RH | 1 | |
| 6 | 4135489 Pocket Light grey | LH | 1 | |
| 6 | 4135471 Pocket Light grey | RH | 1 | |
| 6 | 4270542 Pocket Black | LH | 1 | |
| 6 | 4270559 Pocket Black | RH | 1 | |
| 7 | 7971393 Screw | 4 | |
| 8 | 4263612 Handle Light beige | LH | 1 | |
| 8 | 4263604 Handle Light beige | RH | 1 | |
| 8 | 4270526 Handle Black | LH | 1 | |
| 8 | 4270534 Handle Black | RH | 1 | |
| 8 | 4129250 Handle Light grey | LH | 1 | |
| 8 | 4129268 Handle Light grey | RH | 1 | |
| 9 | 9797200 Washer | 1 | |
| 10 | 9671389 5126834 Washer | 1 | |
| 11 | 4270047 Clamp | 4 | |
| 12 | 4512984 Cover Light beige | 1 | |
| 12 | 4512976 Cover Light grey | 1 | |
| 12 | 4512968 Cover Black | 1 | |
| 15 | 9780156 Screw | 4 | |
| 16 | 4263471 Cover Light beige | 4 | |
| 16 | 4268058 Cover Black | 4 | |
| 16 | 4133427 Cover Light grey | 4 | |
| 17 | 7982333 Screw | 4 | |
| 18 | 4263455 Cover washer Light beige | 2 | |
| 18 | 4268033 Cover washer Black | 2 | |
| 18 | 4129276 Cover washer Light grey | 2 | |
| 19 | 4263463 Cover washer Light beige | 2 | |
| 19 | 4268041 Cover washer Black | 2 | |
| 19 | 4129284 Cover washer Light grey | 2 | |
| 20 | 4268223 Upholstery LH | 1 | |
| 20 | 4268215 Upholstery RH | 1 | |
| 21 | 9660143 Clamp | 22 | |
| 22 | 7972896 8073090 Screw | 2 | |
| 23 | 9660077 Washer | 2 | |
| 24 | 9796939 Clamp | 2 | |
| 25 | 9796616 Clamp | 2 | |
| 26 | 7982333 Screw | 4 | |
| 27 | 9671033 Clamp | 2 | |
| 28 | 7974231 Cage nut | X | |
| 29 | 9545906 Sleeve | 2 | |
| 30 | 9545898 Upholstery clip | 2 | |
| 31 | 8669210 Wooden insert LH | 1 | |
| 31 | 8669202 Wooden insert RH | 1 | |
| 32 | 7398423 Nut | 8 |
