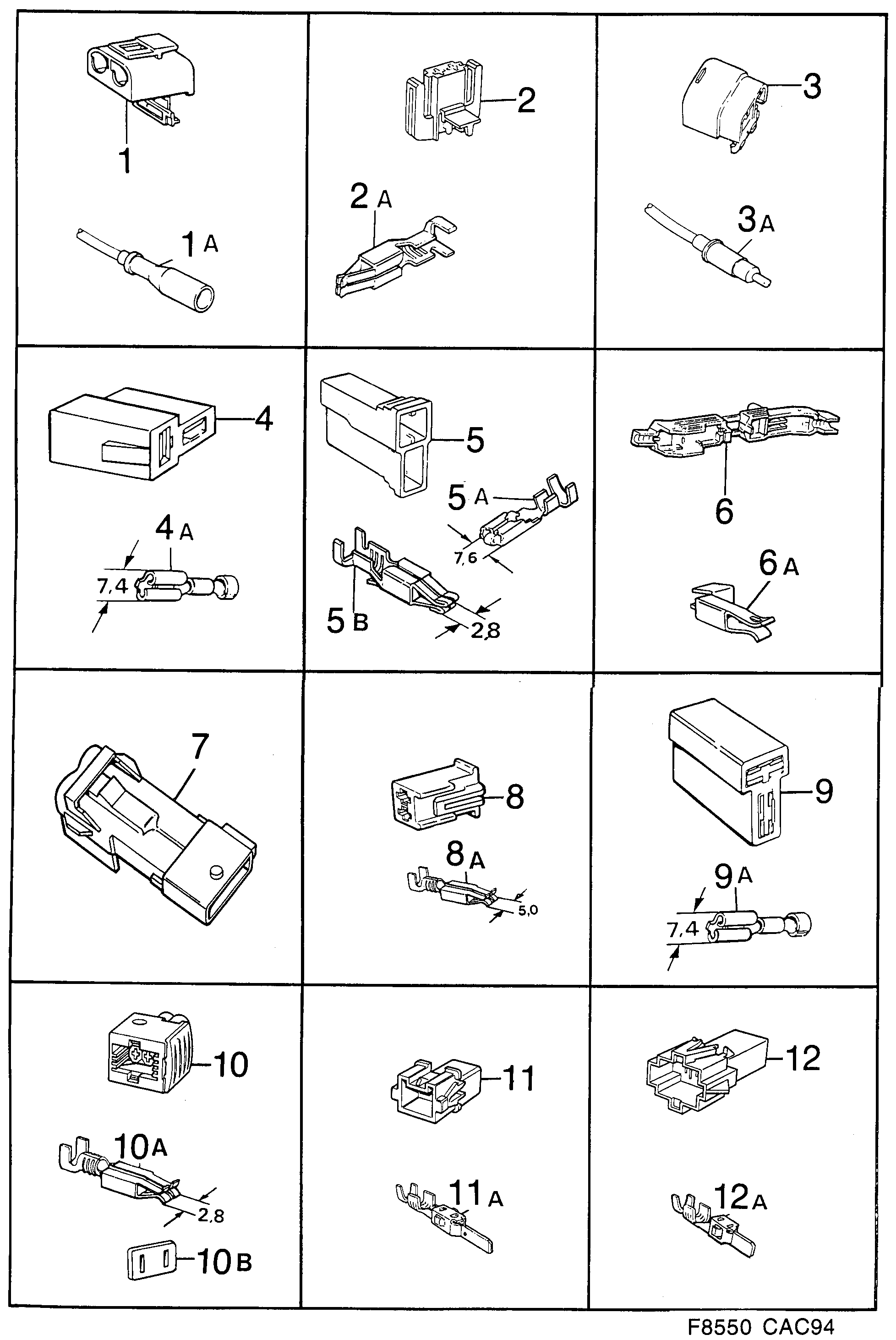

930: Electrical, connector - Wiring and fuses - Contact housing etc
(1997 - 1998) | For 9000 (1998)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9503319 Contact housing 2-pin, female | EL. WINDOW REGULATOR STD FAN,LEVEL GUARD RADIATOR,LEVEL SWITCH WASHER MOTOR,FAN AC FOG LIGHT,JOINT PIECE OUTER TEMP,DAY DRIVING LIGHT,MICRO SWITCH,FOG LIGHT EXTRA,ABS,DOOR | X | |
| 1A | 8547796 Connector | X | |
| 2 | 9124157 30520661 Contact housing 2-pin, female | LIGHT MIRROR,ACC,LIGHT CONTROLS,FAN AC,JOINT TRUNK LID,CENTRAL LOCK TANK HATCH,DOME LAMP SUN ROOF,JOIN PIECE REAR HARNESS,RADIO | X | |
| 2A | 9120783 30520556 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 2A | 9120791 30520557 Cable terminal AREA,2,5-4,0 MM2 | X | |
| 3 | 9501685 Contact housing 2-pin, male | SWITCH LUGGAGE COMPART- MENT LOCK | X | |
| 3A | 8547770 Connector | X | |
| 4 | 8558538 Contact housing 2-pin, female | CIGARETTE LIGHTER | X | |
| 4A | 8522534 Cable terminal AREA 0,8-2,1 MM2 | X | |
| 5 | 8574949 12790282 Contact housing 2-pin, female | SPEED SENSOR | X | |
| 5A | 8560476 Cable terminal AREA 0,9-2,0 MM2 | X | |
| 5B | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 7 | 4113452 12788987 Connector housing 2-pin, male | ABS UNIT MK4 | X | |
| 8 | 9123548 12790106 Contact housing 2-pin, female | THEFT ALARM,FOG LIGHT LOUD SPEAKER,BY-PASS, DOOR SWITCH,SOLENOID IGNITION LOCK,CODING EXTRA LIGHTS,GLOVE COMPARTMENT LAMP,SHIFT LOCK,JOIN PIECE MAIN CABLE HARNESS | X | |
| 8A | 9120668 12789796 Cable terminal AREA,0,75-1,5 MM2 | X | |
| 9 | 7155096 Connector housing 2-pin, male | SWITCH BRAKE LIGHT | X | |
| 9A | 7971708 Cable terminal AREA,0,5-1,5 MM2 | X | |
| 10 | 4113205 12788933 Connector housing LHD | 2-pin, female | JOINT PIECE ABS UNIT SPEED SENSOR,VACUM PUMP ABS,HORN,KNOCK SENSOR,TEMP SENSOR TEMP SENSOR COOLANT THEFT ALARM PRESSURE MONITOR AC | X | |
| 10A | 4061586 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 10B | 4114310 12788992 Seal | X | |
| 11 | 4117164 12795968 Connector housing 2-pin, male | SIDE INDICATOR LAMP JOINT PIECE MAIN CABLE HARNESS,JOINT PIECE TEMP SENSOR | X | |
| 11A | 4115077 12789934 Cable terminal AREA,1,0-2,5 MM2 | X | |
| 12 | 4117560 Connector housing 2-pin, male | JOINT PIECE MAIN CABLE HARNESS | X | |
| 12A | 4115580 Cable terminal AREA,1,0-2,5 MM2 | X |
