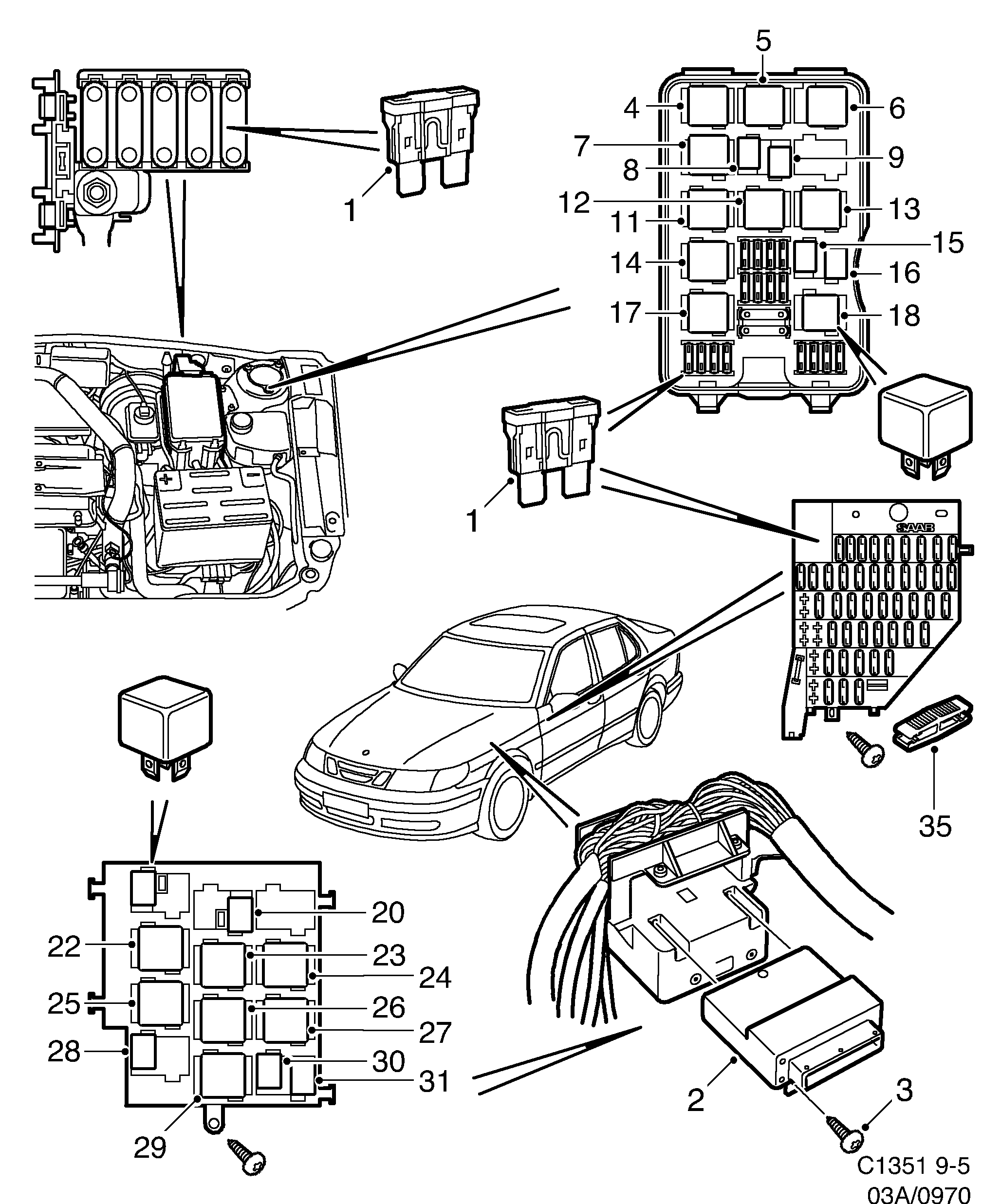

970: Electrical, general - Wiring and fuses - Relays and fuses - DICE
(1998 - 1999) | For 9-5 (9600) (1998)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 7974611 Fuse 5A | X | |
| 1 | 7974629 Fuse 7,5A | X | |
| 1 | 7974637 Fuse 10A | X | |
| 1 | 7974645 Fuse 15A | X | |
| 1 | 7974652 Fuse 20A | X | |
| 1 | 7974660 Fuse 25A | X | |
| 1 | 7974678 Fuse 30A | X | |
| 1 | 4087698 Fuse 40A | X | |
| 1 | 7983042 Fuse 40A,MAXI | X | |
| 1 | 7983067 Fuse 60A,MAXI | X | |
| 2 | 4537643 Electronic unit -1998 | Programmed using a TECH 2 Scan Tool. | DICE | 1 | |
| 2 | 4712345 5266267 Electronic unit 1998-1999 | Also available as exchange unit. Programmed using a TECH 2 Scan Tool. | DICE | 1 | |
| 2 | 5040001 5266267 Electronic unit -1999 | Programmed using a TECH 2 Scan Tool. | DICE | 1 | |
| 2 | 5040837 5266267 Electronic unit -1999, LHD | Programmed using a TECH 2 Scan Tool. | DICE | 1 | |
| 3 | 92150118 Screw | 2 | |
| 4 | 8533176 Relay main beam | 1 | |
| 5 | 8533176 Relay dipped beam | 1 | |
| 6 | 8533176 Relay washer pump | 1 | |
| 7 | 8533176 Relay Rear window wiper | 1 | |
| 8 | 4947115 Relay horn | 1 | |
| 9 | 4224192 4947115 Relay vacuum pump | 1 | |
| 11 | 8533176 Relay AC compressor | 1 | |
| 12 | 8533176 Relay cooling fan high speed | LH | 1 | |
| 13 | 8533176 Relay cooling fan low speed | 1 | |
| 14 | 8533176 Relay intermittent wiper | 1 | |
| 15 | 4947115 Relay fog-lights | 1 | |
| 16 | 4224192 4947115 Relay headlamp wipers | 1 | |
| 17 | 4109070 Relay Front. bulb check | 1 | |
| 18 | 8533176 Relay cooling fan high speed | RH | 1 | |
| 20 | 4224192 4947115 Relay rear seat | 1 | |
| 22 | 5246350 Relay SAI | 1 | |
| 23 | 8533176 Relay engine management system | 1 | |
| 24 | 8533176 Relay tank hatch | 1 | |
| 25 | 8533176 Relay fuel pump | 1 | |
| 26 | 9522061 Relay ignition switch | 1 | |
| 27 | 9522061 Relay rear window rear-view mirror | 1 | |
| 28 | 4224192 4947115 Relay reversing lamp | 1 | |
| 29 | 8533176 Relay starter relay | 1 | |
| 30 | 4224192 4947115 Relay limp home | 1 | |
| 31 | 4224200 13266315 Relay engine luggage compartment lock | 1 | |
| 35 | 8587636 Fuse clip Instrument panel | 1 |
