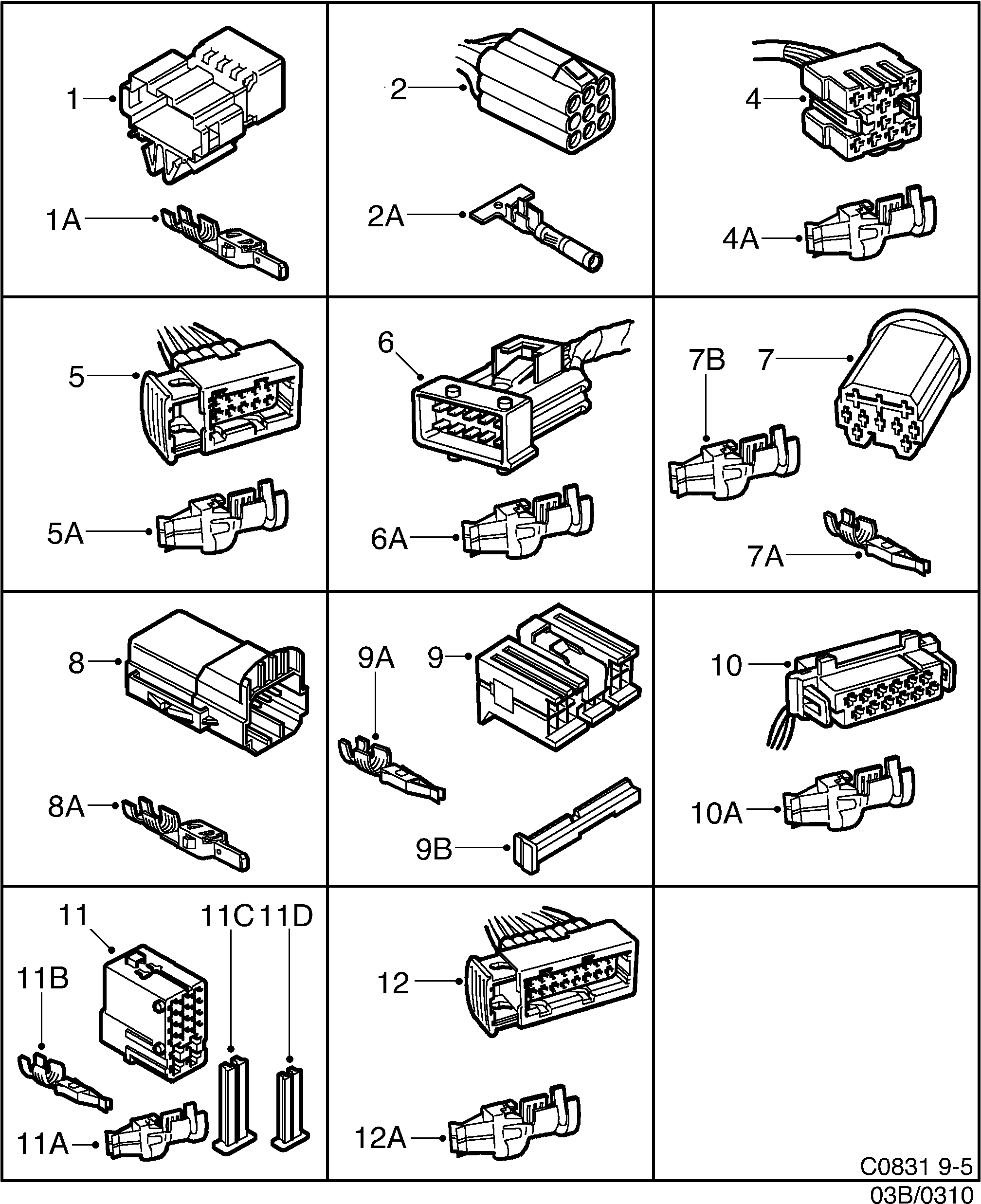

310: Electrical, connector - Wiring and fuses - Contact housing etc - 8-pin-16-pin
(2000) | For 9-5 (9600) (2000)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4807988 12790204 Connector housing 8-pin, male | CABLE HARNESS REAR 5D, CONNECTION INSTRUMENT | X | |
| 1A | 4115457 12790614 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 2 | 4201208 Connector housing 9-pin, female | SWITCH ELECTRICAL MIRROR | X | |
| 2A | 4409728 30552537 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 4 | 9123399 12764801 Connector housing 10-pin, female | VENTILATED FRONT SEAT, HEADLAMP LEVELLING, FOG LAMP, TCS ON/OFF, HEATED FRONT SEAT | X | |
| 4A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 4A | 4464343 Cable terminal AREA 4,0-6,0 MM2 | X | |
| 5 | 4114005 12788954 Connector housing 10-pin, female | SWITCH GEAR INDICATOR, SWITCH DIRECTION INDICATOR, THROTTLE CONTROL, DI-CASETTE, CENTRAL LOCK, SWITCH WINDSCREEN WIPER, TELEPHONE | X | |
| 5A | 4350526 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 5A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 5A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 6 | 4114054 12788959 Connector housing 10-pin, female | CONNECTION INJECTION CABLE HARNESS | X | |
| 6A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 7 | 4411518 12759926 Connector housing 10-pin, female | DOME LAMP, HEATING PAD REAR SEAT, TRAILER, RECISTOR ACC | X | |
| 7A | 4115499 12790414 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 7B | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 7 | 4411526 12759926 Connector housing 10-pin, female | ACC MOTOR, CONNECTION CABLE HARNESS ROOF, CONNECTION CABLE HARNESS REAR | X | |
| 7A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 7B | 4115499 12790414 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 8 | 4587903 Connector housing 10-pin, male | LUGGAGE COMPARTMENT LOCK | X | |
| 8A | 4115457 12790614 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 8A | 4115077 12789934 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 8 | 4587895 Connector housing 10-pin, male | CONNECTION CABLE HARNESS ROOF | X | |
| 8A | 4115077 12789934 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 9 | 4739165 Connector housing 12-pin, female | CONNECTOR MAIN INSTRUMENT | X | |
| 9A | 4115499 12790414 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 9B | 4739173 Locking | X | |
| 10 | 9525031 Contact housing 12-pin, female | CD-CHANGER, MOTOR SUN-ROOF | X | |
| 10A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 11 | 4737060 Connector housing 16-pin, female | CONNECTOR REAR DOOR, CONNECTOR CABLE HARNESS REAR | X | |
| 11A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 11B | 4115499 12790414 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 11B | 4466801 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 11C | 4737086 Locking | X | |
| 11D | 4737094 Locking | X | |
| 12 | 4114401 12791005 Connector housing 16-pin, female | TCM, LIGHT SWITCH | X | |
| 12A | 9120957 12789796 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 12A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 12A | 4063970 12790467 Cable terminal AREA 0,5-1,0 MM2 | X |
