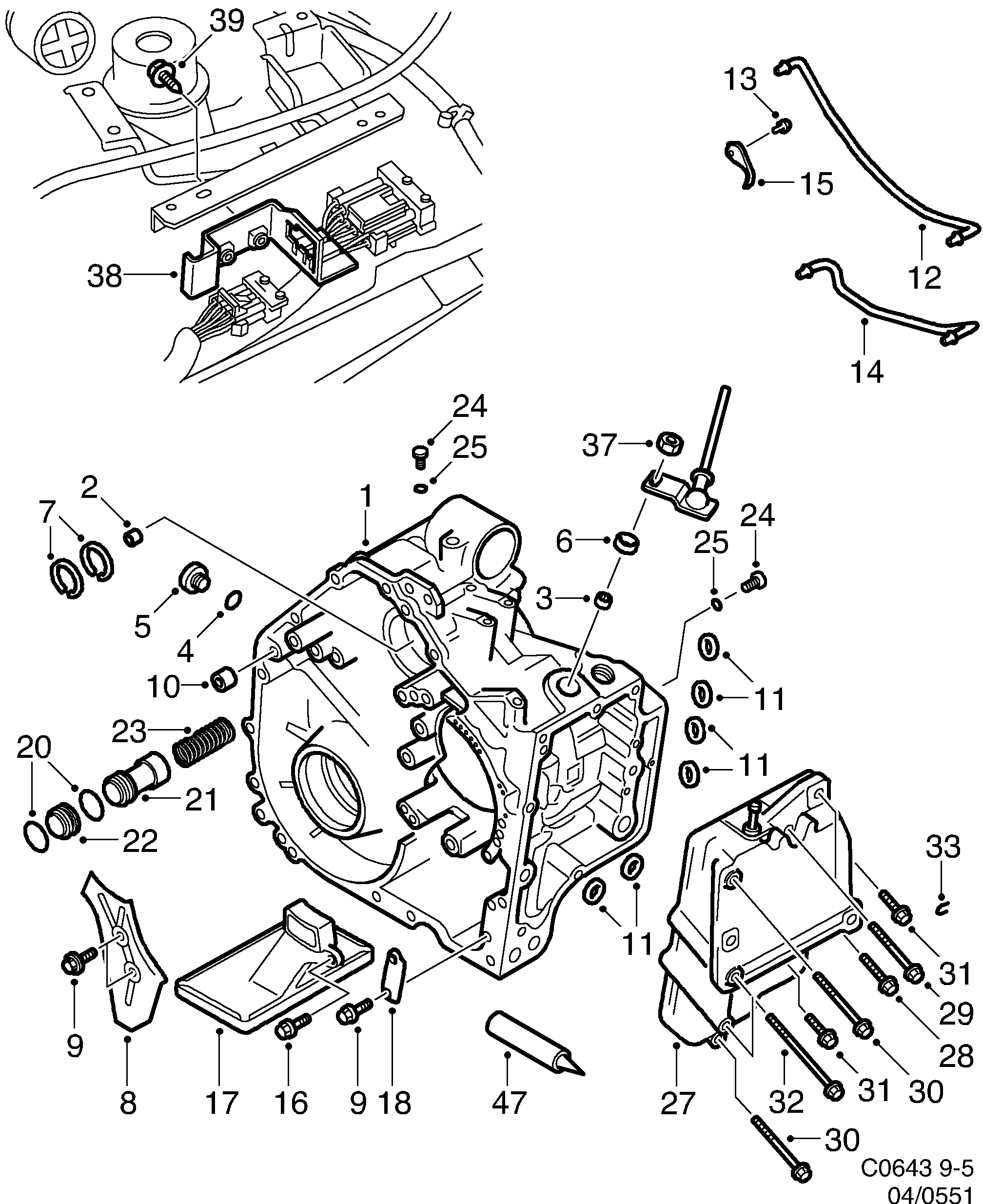

551: Transmission - Gearbox, automatic - Gearcase, cover
(1998 - 2001 | A) | For 9-5 (9600) (2000)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 5164405 Gearbox housing | 1 | |||
| 2 | 5255047 90369298 Needle bearing | 1 | |||
| 3 | 5259536 90348717 Needle bearing | 1 | |||
| 4 | 5164421 90348863 O-ring | 1 | |||
| 5 | 5448451 Plug | 1 | |||
| 6 | 4491064 90348718 Seal | 1 | |||
| 7 | 5164454 Sealing ring | 1 | |||
| 8 | 5164462 Splash guard | 1 | |||
| 9 | 5164470 55352202 Screw | 4 | |||
| 10 | 5164488 90369297 Gasket | 1 | |||
| 11 | 5164496 90348723 Gasket | 6 | |||
| 12 | 5164504 90512194 Tube | 1 | |||
| 13 | 5255351 90399357 Screw | 1 | |||
| 14 | 5164520 90542554 Tube | 1 | |||
| 15 | 5164538 90348727 Clamp | 1 | |||
| 16 | 5164546 Screw | 1 | |||
| 17 | 5164553 90541934 Oil strainer | 1 | |||
| 18 | 5164561 90348729 Plate | 1 | |||
| 20 | 5164579 90007861 O-ring | 2 | |||
| 21 | 5164587 Piston | 1 | |||
| 22 | 5164595 90348731 Cover | 1 | |||
| 23 | 5164603 90348732 Compression spring | 1 | |||
| 24 | 4491072 90007874 Plug | 2 | |||
| 25 | 4491080 90007873 O-ring | 2 | |||
| 27 | 5164413 30587477 Cover | 1 | |||
| 28 | 4491106 90399336 Screw M8 x 40 | 1 | |||
| 29 | 4491114 90399342 Screw M8 x 57 | 2 | |||
| 30 | 4491122 90399343 Screw M8 x 72 | 2 | |||
| 31 | 4491130 90399359 Screw M8 x 28 | 2 | |||
| 32 | 5164686 Screw M8 x 105 | 2 | |||
| 33 | 5164694 Clamp | 1 | |||
| 37 | 8074288 11900440 Nut | 1 | |||
| 38 | 4580247 Bracket | 1 | |||
| 39 | 7978091 11900353 Screw | 2 | |||
| 47 | 5164637 93165267 Flange sealant | X | |||
