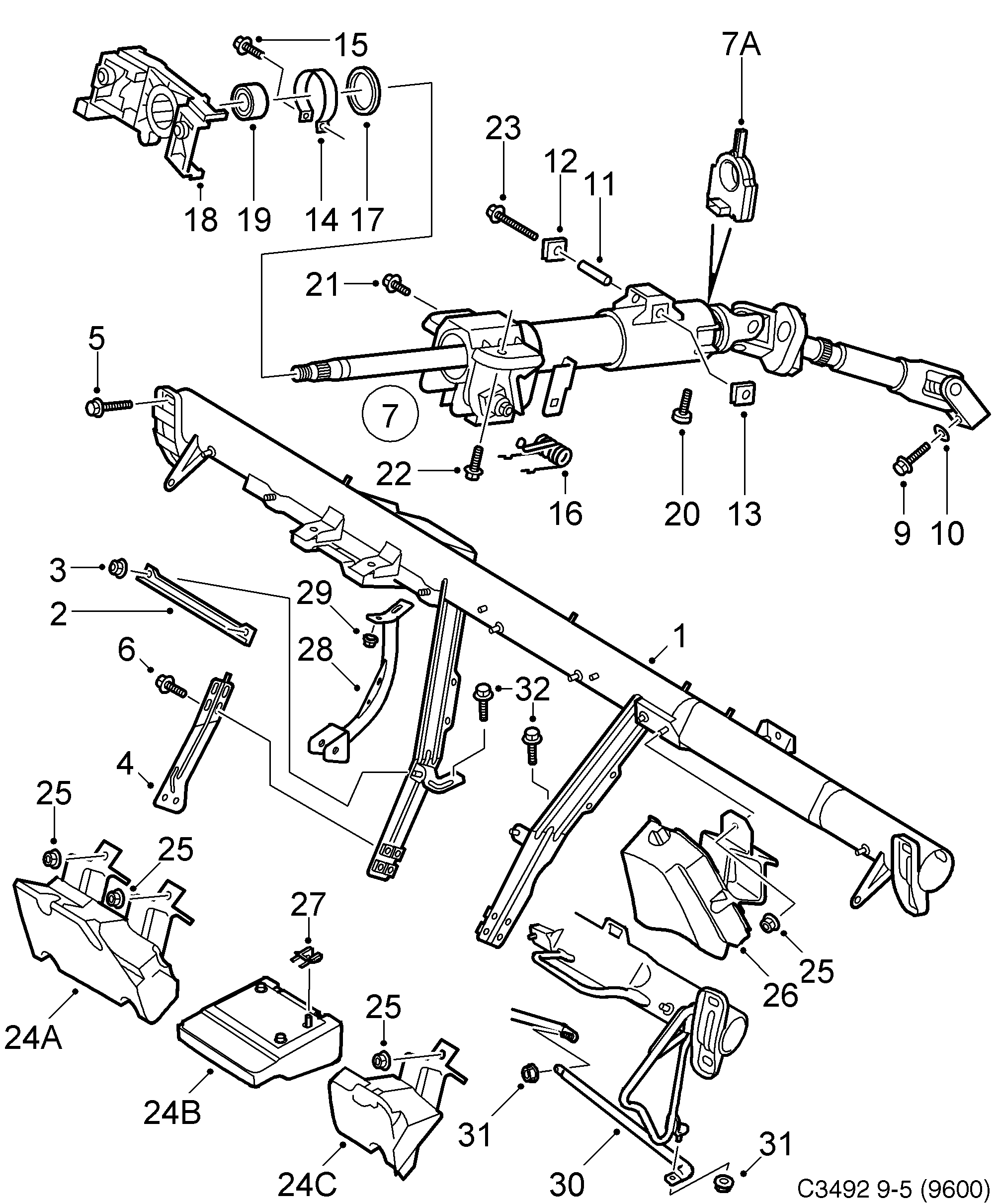

160: Steering - Steering assembly - Steering wheel member - Steering column
(1998 - 2010) | For 9-5 (9600) (2000)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4848271 5552492 Steering wheel member 1998-2001, LHD | 1 | |
| 1 | 4717575 5206560 Steering wheel member -2002, RHD | 1 | |
| 2 | 4718854 Cross stay | 1 | |
| 3 | 7977929 11900451 Nut 1998-2002 | 2 | |
| 4 | 5012745 5204649 Support 1998-2001 | LH | 1 | |
| 4 | 5012752 Support RH | 1 | |
| 5 | 7975212 92152142 Screw 1998-2006 | 4 | |
| 6 | 7972623 92153212 Screw 1998-2006 | 8 | |
| 7 | 5209507 Steering column 1998-2001, LHD | 1 | |
| 7 | 5014303 5209481 Steering column 1998-2002, RHD | 1 | |
| 9 | 7985898 Hexagon screw 1998-2002 | 1 | |
| 10 | 8029985 92153033 Washer 2000-2010 | 1 | |
| 11 | 4846721 Sleeve | 1 | |
| 12 | 4846804 Bushing | 1 | |
| 13 | 4846713 Bushing | 1 | |
| 14 | 4846754 Clamp | 1 | |
| 15 | 8097883 Screw | 1 | |
| 16 | 5010467 Spring | 1 | |
| 17 | 5010194 5016779 Lock ring | 1 | |
| 18 | 4846747 Bearing housing | 1 | |
| 19 | 4847349 Bushing | 1 | |
| 20 | 4847372 Hexagon screw | 1 | |
| 21 | 5172812 Screw 1999-2010 | 1 | |
| 22 | 7978190 55566034 Screw | 2 | |
| 23 | 7982119 11900373 Screw 1998-2006 | 1 | |
| 24A | 4684155 Knee protection 1998-2001, LHD | 1 | |
| 24A | 4684197 Knee protection RHD | 1 | |
| 25 | 7977952 11900452 Hexagon nut 1998-2001 | X | |
| 26 | 4704011 Knee protection 1998-2001, LHD | 1 | |
| 32 | 12781156 Screw | 2 |
