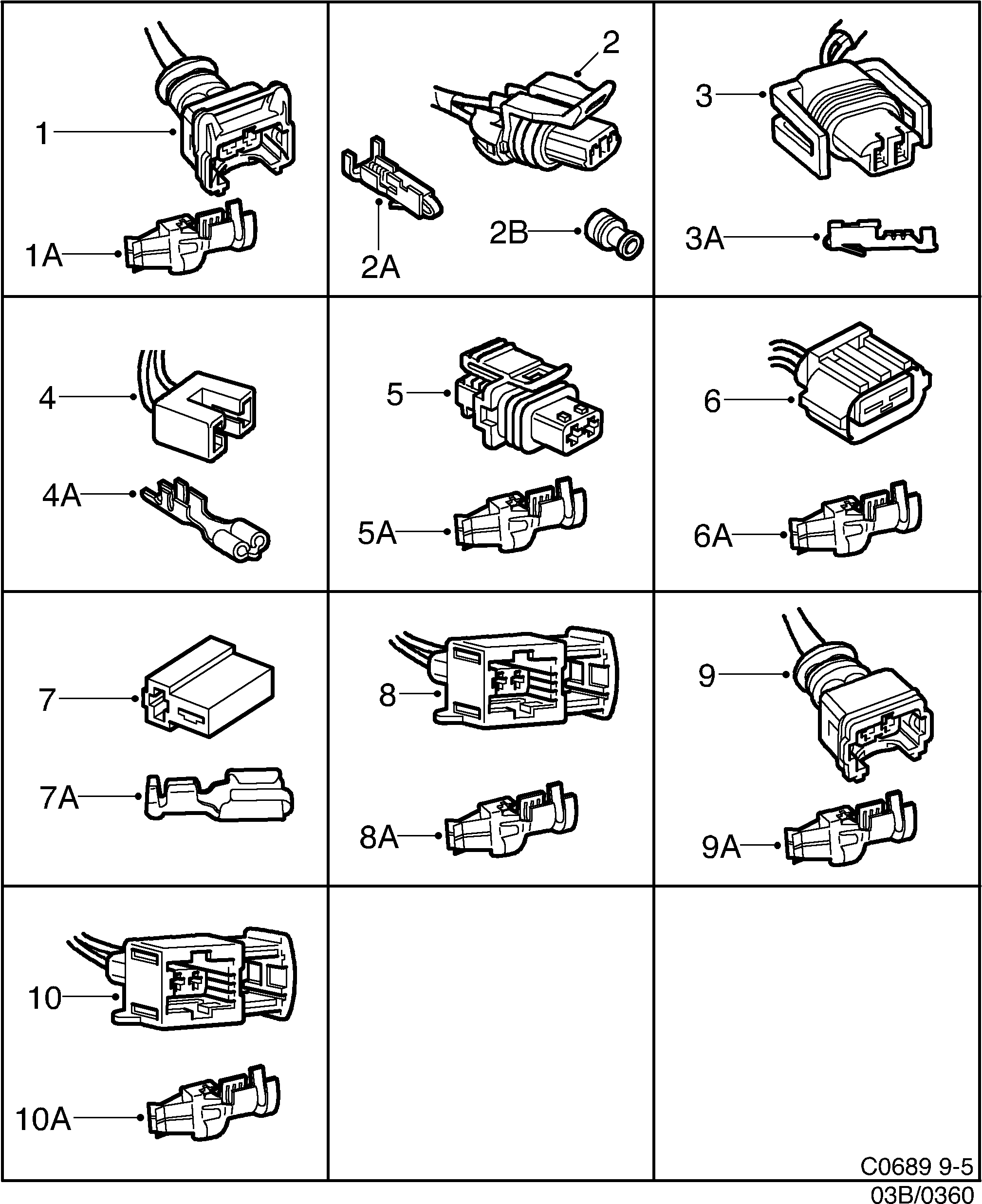

360: Electrical, connector - Wiring and fuses - Contact housing etc - 2-pin-2-pin
(2001) | For 9-5 (9600) (2001)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4178414 12790247 Connector housing 2-pin, female | COOLANT PUMP, INJECTION VALVES, BY-PASS VALVE TURBO | X | |
| 1A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 1 | 4433439 Connector housing 2-pin, female | INJECTORS | X | |
| 1A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 2 | 4201224 12790252 Connector housing 2-pin, female | OUTER TEMP SENSOR, FOG LIGHT, WASHER FLUID LEVEL, BONNET SWITCH, COOLANT FLUID LEVEL, REVERS SWITCH MANUAL GEAR | X | |
| 2A | 4418505 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 2B | 4201232 12789184 Locking | X | |
| 3 | 4201273 Connector housing 2-pin, female | BRAKE FLUID LEVEL SENSOR LHD | X | |
| 3A | 4488458 Cable terminal AREA 0,35-0,5 MM2 | X | |
| 3 | 4434841 Connector housing 2-pin, female | BRAKE FLUID LEVEL SENSOR RHD | X | |
| 3A | 4488458 Cable terminal AREA 0,35-0,5 MM2 | X | |
| 4 | 4203733 12790259 Connector housing 2-pin, female | DOOR LAMP, BOOT LID LAMP | X | |
| 4A | 4464442 12798482 Cable terminal AREA 0,5-1,0 MM2 | X | |
| 5 | 4668596 12790267 Contact housing 2-pin, female | ENGINE COOLANT TEMP SENSOR | X | |
| 5A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 6 | 4738175 Connector housing 2-pin, female | WASHER PUMP SRA/BTA | X | |
| 6A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 7 | 8574949 12790282 Contact housing 2-pin, female | CIGARETTE LIGHTER | X | |
| 7A | 4464400 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 8 | 4811162 12790273 Connector housing 2-pin, female | WASHER PUMP WINDSCREEN WIPER | X | |
| 8A | 4354171 12970428 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 9 | 4807475 Contact housing 2-pin, female | LIMPHOME SOLENOID, HEAT EXCHANGE VALVE | X | |
| 9A | 4061586 Cable terminal AREA 1,0-2,5 MM2 | X | |
| 10 | 4113403 12788982 Connector housing 2-pin, female | COOLING FAN RH | X | |
| 10A | 4354171 12970428 Cable terminal AREA 1,0-2,5 MM2 | X |
