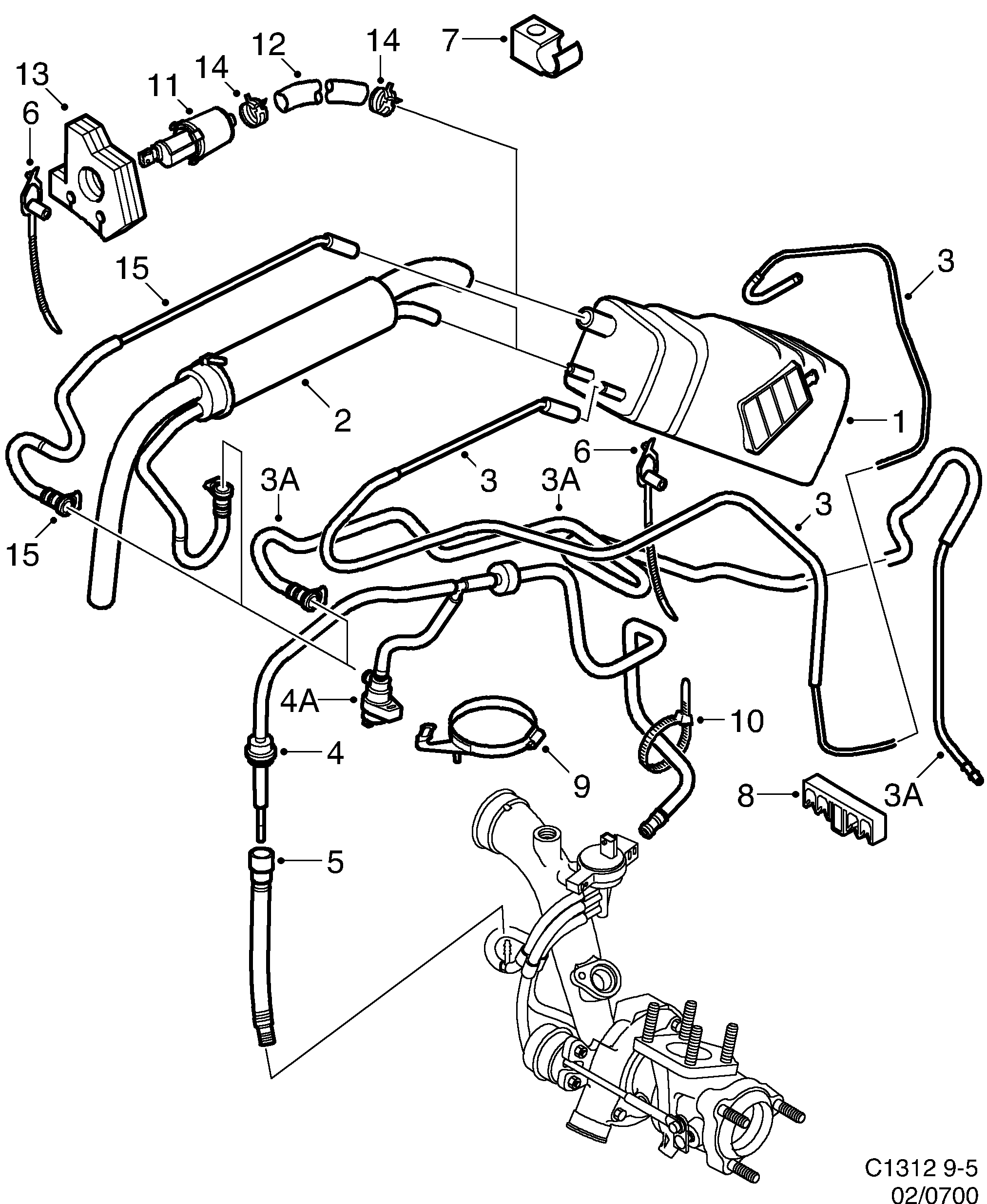

700: Engine - Fuel system - ELCD
(1998 - 2010 | B205E, B205L, B205R, B235E, B235R, B308E) | For 9-5 (9600) (2002)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4672556 Carbon filter 1998-2004 | B205E, B235E | 1 | |||
| 1 | |||||
| 1 | 1 | ||||
| 2 | 5322151 Evacuation pipe 2002-2005 | 1 | |||
| 3 | 4396099 Tube | 1 | |||
| 3A | 5325410 Tube 2002-2010, LHD | 1 | |||
| 3A | 4897930 Tube 1999- | For cars with evaporative emission canister fitted on the tank | 1 | |||
| 4 | 5322169 Evacuation pipe 2002-2004 | B205, B235 | Includes purge valve | 1 | |||
| 4 | 5322185 Evacuation pipe 2002-2003 | B308E | 1 | |||
| 5 | 4752382 Evacuation pipe 1998-2010 | B205, B235 | 1 | |||
| 5 | 4729323 Evacuation pipe 1998-2003 | B308E | 1 | |||
| 6 | 4807939 Tensioning band | 2 | |||
| 7 | 4671756 90159758 Clamp 1998-2005 | 2 | |||
| 8 | 4671541 Clamp | 1 | |||
| 9 | |||||
| 10 | 92150191 11900513 Tensioning band 1998-2003 | B308E | 1 | |||
| 10 | 11900513 Tensioning band | 1 | |||
