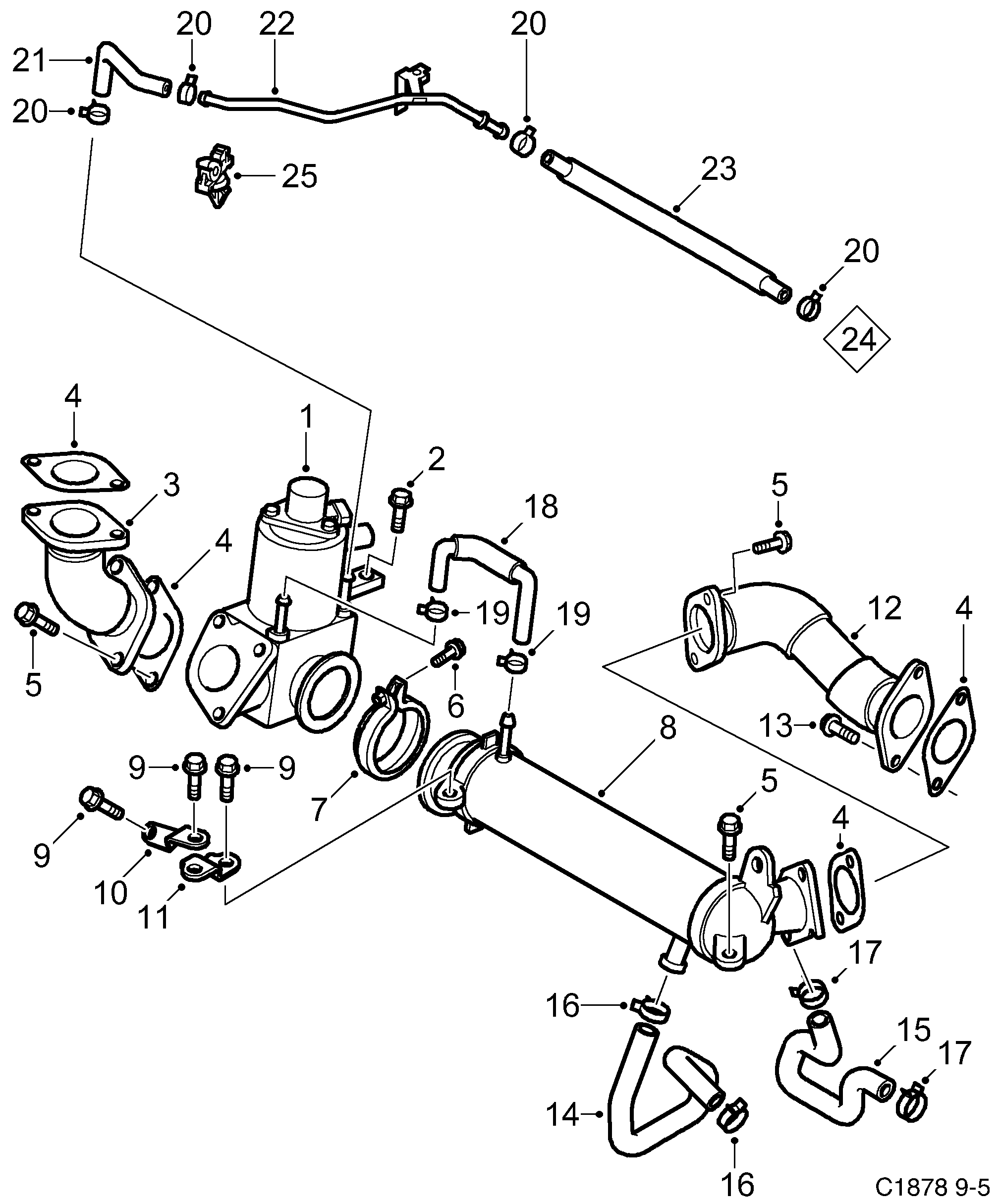

870: Engine - Intake and exhaust system - Exhaust gas recirculation
(2002 - 2005 | D223L, D308L) | For 9-5 (9600) (2002)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 5344544 Exhaust gas recirculation valve 2002-2004 | (59 52 775) | 1 | |
| 2 | 5952494 Screw | 2 | |
| 3 | 5952841 EGR-pipe | 1 | |
| 4 | 5952882 97176387 Gasket 2002-2004 | 4 | |
| 5 | 5950423 Screw | 8 | |
| 6 | 5952866 Screw | 1 | |
| 7 | 5952858 Tube clamp | 1 | |
| 8 | 5952809 Radiator | 1 | |
| 9 | 5950852 Screw | 3 | |
| 10 | 5952791 Bracket | 1 | |
| 11 | 5952825 Bracket | 1 | |
| 12 | 5952874 EGR-pipe | 1 | |
| 13 | 5952908 Screw | 2 | |
| 14 | 5952239 Hose | 1 | |
| 15 | 5952247 Radiator hose | 1 | |
| 16 | 5952361 Hose clamp | 2 | |
| 17 | 5952346 Hose clamp | 2 | |
| 18 | 5952254 Radiator hose | 1 | |
| 19 | 5952262 Hose clamp | 2 | |
| 20 | Hose clamp Not as separate spare part. | X | |
| 21 | 5952338 Hose | 1 | |
| 22 | 5952320 Tube | 1 | |
| 23 | 5952304 Hose | 1 | |
| 24 | 5951876 97324029 Tube 2002-2004 | 1 | |
| 25 | 5955646 Hose clamp | 1 |
