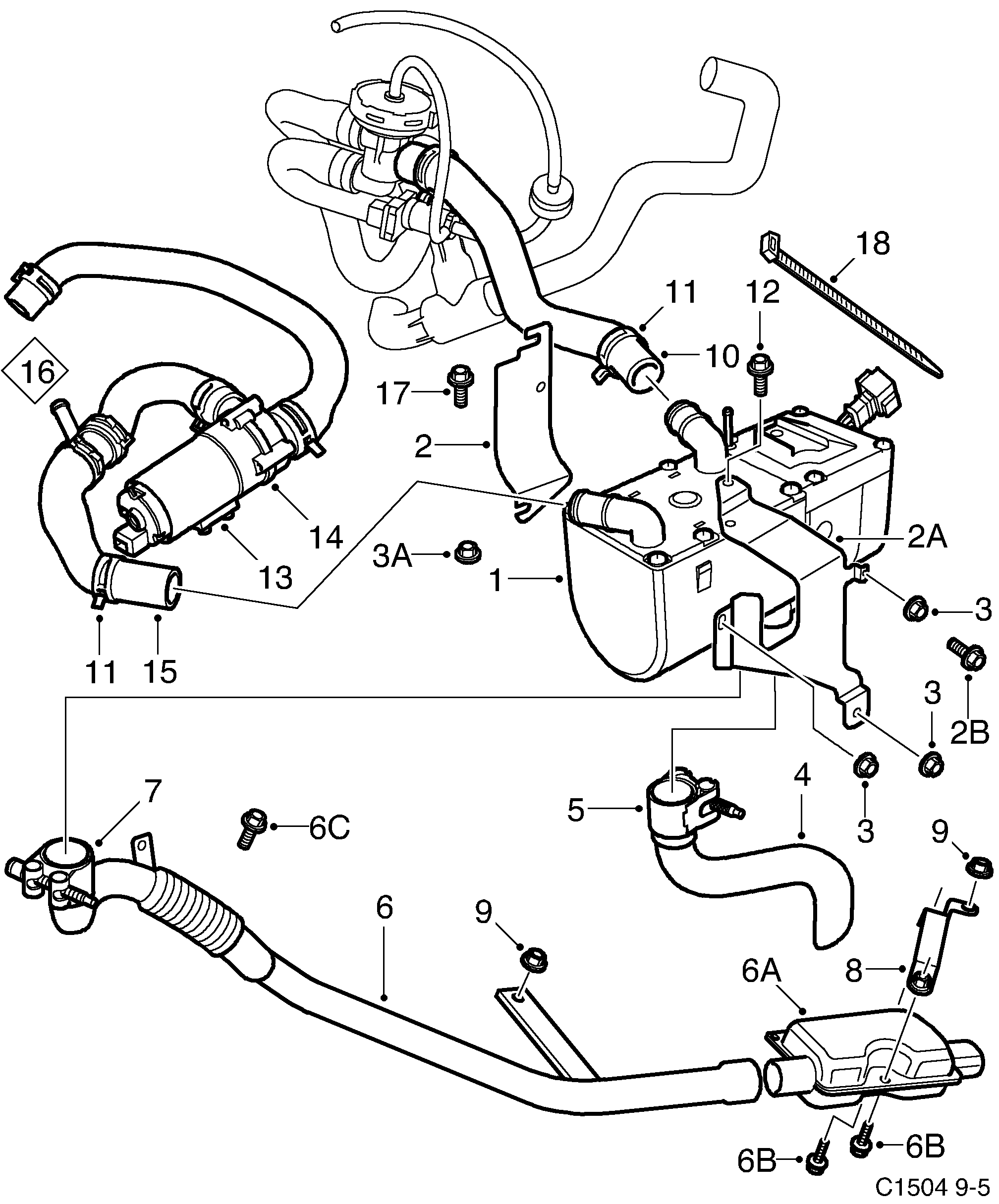

960: Engine - Cooling system - Auxiliary heater
(2002 - 2005 | D223L, D308L) | For 9-5 (9600) (2002)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | |||||
| 2 | 5325766 Bracket | 1 | |||
| 2A | 5329925 Bracket | 1 | |||
| 3 | 7985377 Nut | 3 | |||
| 4 | 5191168 Intake manifold | 1 | |||
| 5 | 5125646 Clamp | 1 | |||
| 6 | 5320726 Exhaust pipe | 1 | |||
| 6A | 4623351 400106936 Silencer | 1 | |||
| 6B | 7978372 11900378 Screw 2002-2004 | 2 | |||
| 6C | 7978091 11900353 Screw | 2 | |||
| 7 | 5125653 Clamp | 1 | |||
| 8 | 5320734 Bracket | 1 | |||
| 9 | 4685582 55563636 Nut | 2 | |||
| 10 | |||||
| 11 | |||||
| 12 | 7974694 Screw | 1 | |||
| 13 | 8252553 12780365 Clip | 2 | |||
| 14 | |||||
| 15 | |||||
| 16 | |||||
| 18 | 92150191 11900513 Tensioning band 2002-2002 | 1 | |||
