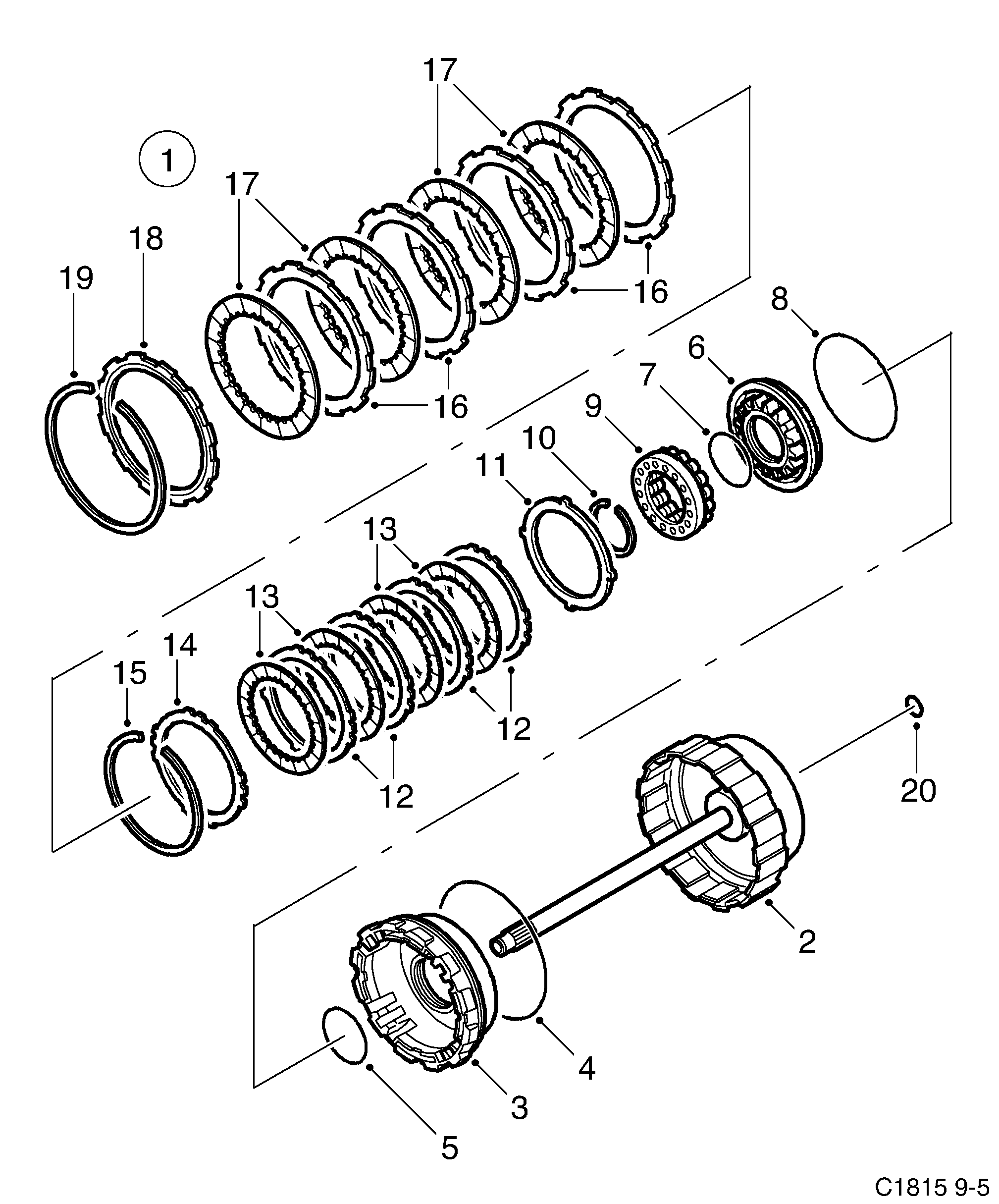

800: Transmission - Gearbox, automatic - Clutch C1 - Clutch C2
(2002 - 2010 | A, M) | For 9-5 (9600) (2002)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 5442124 93178341 Shaft 2002-2002 | MARKED: FA 57 A01 | 1 | |||
| 1 | 93178341 Clutch 2002-2002 | MARKED: FA 57 A01 | 1 | |||
| 1 | 5442140 93178341 Shaft 2002-2002 | MARKED: FA 57 A02 | 1 | |||
| 1 | 93178341 Clutch 2002-2002 | MARKED: FA 57 A02 | 1 | |||
| 1 | 5441936 93178340 Shaft 2002-2002 | MARKED: FA 57 C01 | 1 | |||
| 1 | 93178340 Clutch 2002-2002 | MARKED: FA 57 C01 | 1 | |||
| 2 | 5442132 Shaft 2002-2002 | MARKED: FA 57 A01 | 1 | |||
| 2 | 5442157 Shaft 2002-2002 | MARKED: FA 57 A02 | 1 | |||
| 2 | 5441944 Shaft 2002-2002 | B235R | MARKED: FA 57 C01 | 1 | |||
| 3 | 5441951 Piston 2002-2002 | 1 | |||
| 4 | 5250063 90348767 O-ring | 1 | |||
| 5 | 5250071 90348768 O-ring | 1 | |||
| 6 | 5441985 Piston 2002-2002 | 1 | |||
| 7 | 5250071 90348768 O-ring | 1 | |||
| 8 | 5441993 93178242 O-ring | 1 | |||
| 9 | 5442009 93178415 Return spring | 2 | |||
| 10 | 5250105 90348773 Lock ring | 1 | |||
| 11 | 5442025 Plate 2002-2002 | 1 | |||
| 12 | 5250121 90348774 Plate | 4 | |||
| 13 | 5442041 Clutch disc 2002-2002 | 4 | |||
| 14 | 5250147 Clutch disc 2002-2002 | 3,6MM | 1 | |||
| 14 | 5250154 Clutch disc 2002-2002 | 3,8MM | 1 | |||
| 14 | 5250162 Clutch disc 2002-2002 | 4,0MM | 1 | |||
| 15 | 5253687 90348777 Lock ring 2002-2002 | 1 | |||
| 16 | 5442090 90542937 Plate | 4 | |||
| 17 | 5442108 93178466 Clutch disc | 4 | |||
| 18 | 5250204 Clutch disc 2002-2002 | 3,6MM | 1 | |||
| 18 | 90542939 Friction disc 2002-2002 | 3,8MM | 1 | |||
| 18 | 5250220 Clutch disc 2002-2002 | 4,0MM | 1 | |||
| 19 | 5441365 9199893 Lock ring | 1 | |||
| 20 | 5250246 90348782 O-ring | 1 | |||
