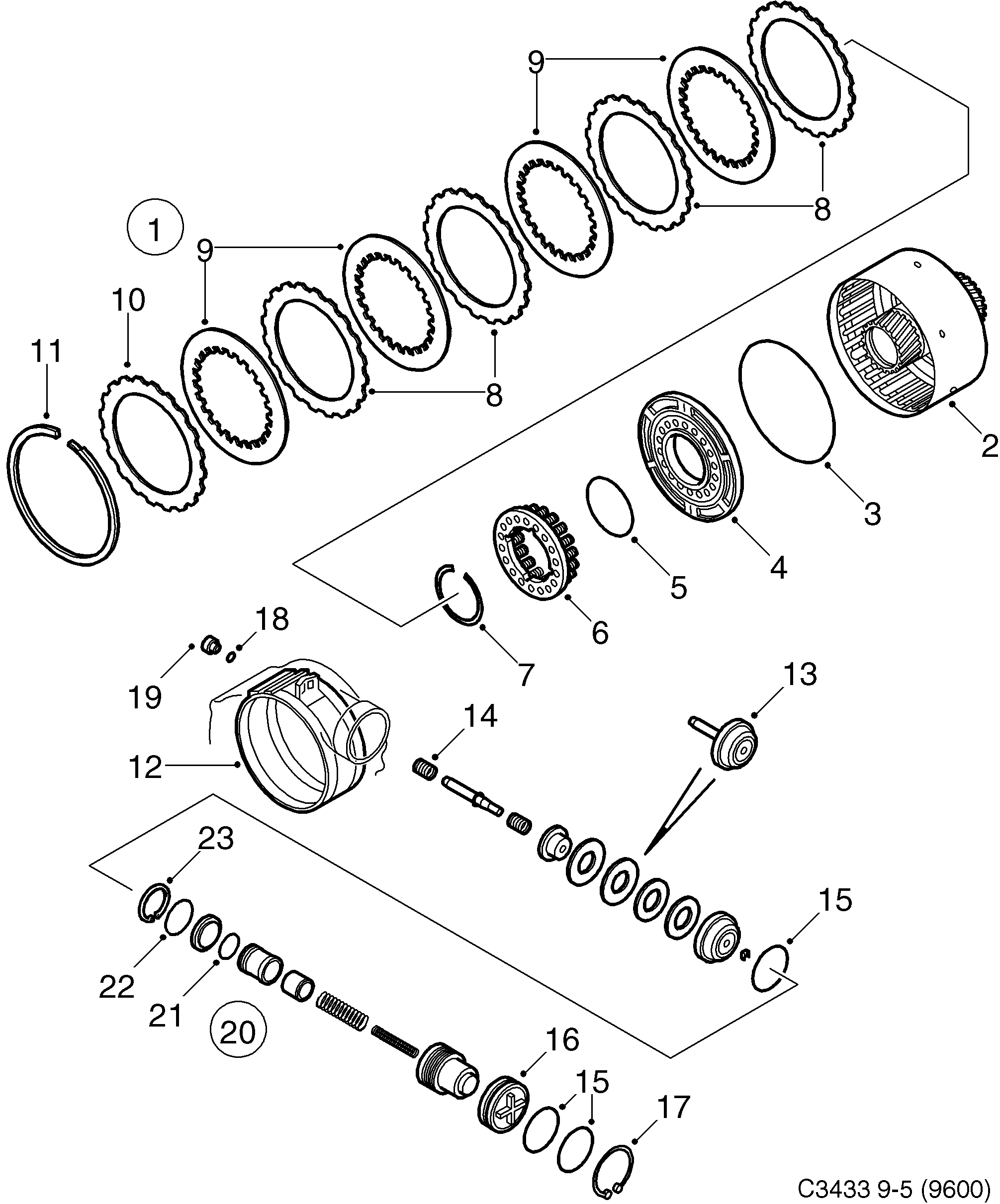

925: Transmission - Gearbox, automatic - Clutch C3 and freewheel F3 - Brake B4
(2002 - 2010 | A, M) | For 9-5 (9600) (2002)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 5442801 Drum MARKED: FA 57 A01, FA 57 A03, FA 57 C02, FA 57 D01 | 1 | |||
| 1 | 5442926 93188780 Drum 2002-2003 | MARKED: FA 57 A02, FA 57 C01 | 1 | |||
| 2 | 5442819 Drum 2002-2003 | MARKED: FA 57 A01, FA 57 A03, FA 57 C02, FA 57 D01 | 1 | |||
| 2 | 5442934 Drum 2002-2003 | MARKED: FA 57 A02, FA 57 C01 | 1 | |||
| 3 | 5442827 93179717 O-ring | 1 | |||
| 4 | 5442835 Piston | 1 | |||
| 5 | 5442165 93178241 O-ring | 1 | |||
| 6 | 5250980 90348847 Return spring | 1 | |||
| 7 | 5250972 90348849 Lock ring | 1 | |||
| 8 | 5250998 90541983 Plate | 1 | |||
| 9 | 5442876 93188775 Clutch disc 2002-2003 | 1 | |||
| 10 | 5442884 93179730 Clutch disc H=3.6 | 1 | |||
| 10 | 5442892 93179732 Clutch disc H=3.8 | 1 | |||
| 10 | 5442900 93179733 Clutch disc H=4.0 | 1 | |||
| 11 | 5442918 93179737 Lock ring | 1 | |||
| 12 | 5442942 93185205 Brake lining | 1 | |||
| 13 | 5442959 93179983 Piston MARKED: NONE | 1 | |||
| 13 | 5442967 93179984 Piston MARKED: 1 STRECK | 1 | |||
| 13 | 5442975 93179985 Piston MARKED: 2 STRECK | 1 | |||
| 13 | 5442983 93179986 Piston MARKED: 3 STRECK | 1 | |||
| 13 | 5442991 93179987 Piston MARKED: 4 STRECK | 1 | |||
| 14 | 5443007 93179988 Compression spring | 1 | |||
| 15 | 5251228 90542004 O-ring | 3 | |||
| 16 | 5443023 93187000 Cover 2002-2002 | 1 | |||
| 17 | 5251277 90542006 Lock ring | 1 | |||
| 18 | 5164421 90348863 O-ring | 1 | |||
| 19 | 5251285 93185203 Plug | 1 | |||
| 20 | 93190077 Damper | 1 | |||
| 21 | 93166821 O-ring | 1 | |||
| 22 | 93166822 O-ring | 1 | |||
| 23 | 93166823 Retaining ring | 1 | |||
