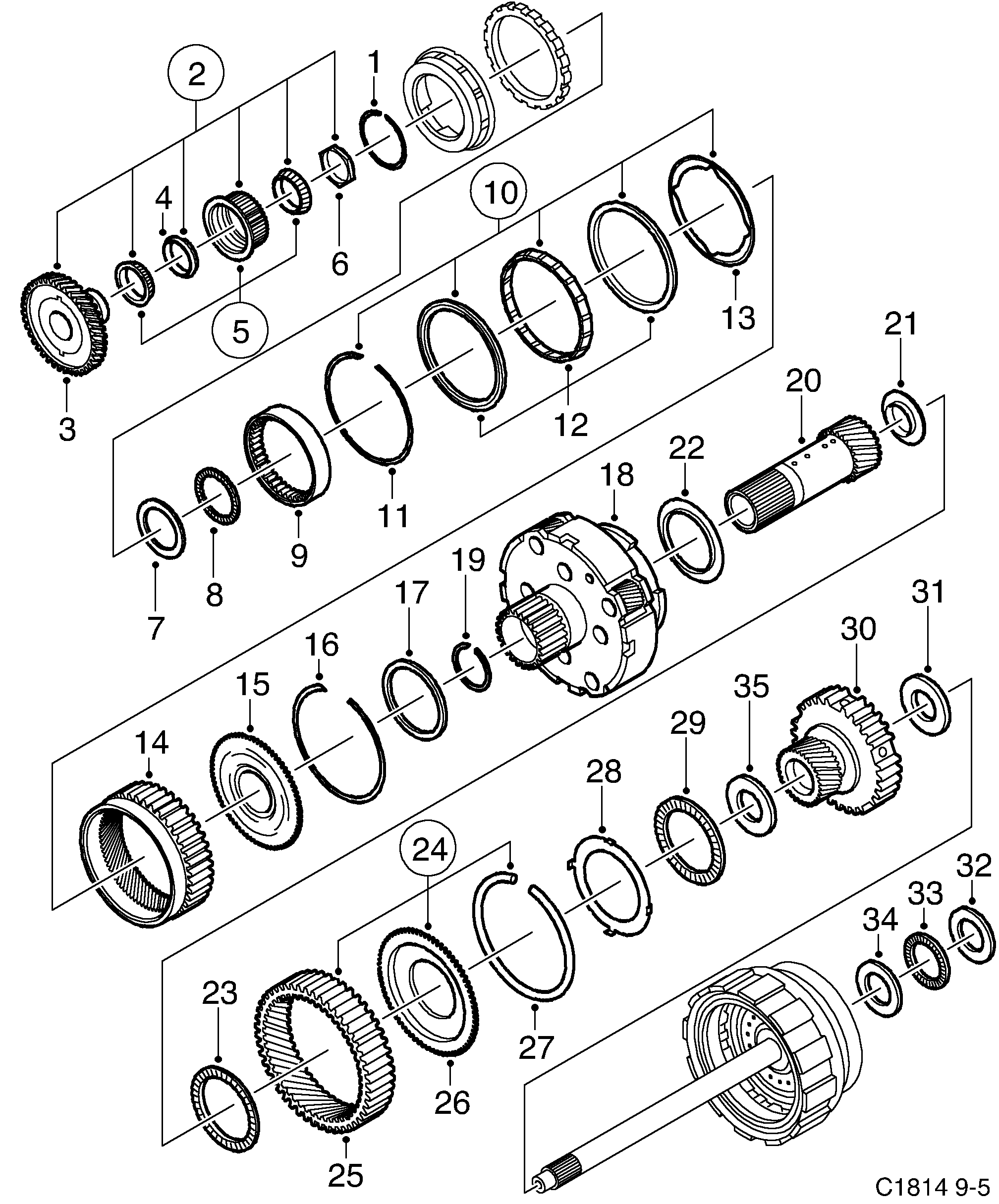

975: Transmission - Gearbox, automatic - Output shaft - Planetary gear
(2002 - 2010 | A) | For 9-5 (9600) (2002)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | |||||
| 1 | 5250626 90541967 Lock ring | 1 | |||
| 2 | 5442470 55352283 Intermediate gear | 1 | |||
| 7 | 5250683 90348814 Thrust washer | 1 | |||
| 8 | 5250691 90444679 Needle bearing | 1 | |||
| 9 | 5250709 Thrust washer 2002-2002 | 1 | |||
| 10 | 5442512 Ring gear 2002-2002 | 1 | |||
| 11 | 5250766 90348823 Lock ring 2002-2002 | 1 | |||
| 12 | 5250717 Freewheel 2002-2002 | 1 | |||
| 13 | 5250741 Thrust washer 2002-2002 | 1 | |||
| 14 | 5442553 Ring gear 2002-2002 | 1 | |||
| 15 | 5442561 Thrust washer 2002-2002 | 1 | |||
| 16 | 5250733 90348821 Lock ring | 1 | |||
| 17 | 5250774 90348824 Needle bearing | 1 | |||
| 18 | 5442595 93179243 Planetary gear 2002-2002 | MARKED:FA 57 A01 | 1 | |||
| 19 | 5442603 Lock ring 2002-2002 | 1 | |||
| 20 | 5442777 Sun gear 2002-2002 | MARKED: FA 57 A01 | 1 | |||
| 20 | 5442611 Sun gear 2002-2002 | MARKED: FA 57 A02, FA 57 C01 | 1 | |||
| 21 | 5442629 Thrust washer 2002-2002 | 1 | |||
| 22 | 5442637 Thrust washer 2002-2002 | 1 | |||
| 23 | 5442645 93179277 Thrust washer | 1 | |||
| 24 | 5442785 Ring gear 2002-2002 | MARKED: FA 57 A01 | 1 | |||
| 24 | 5442652 Ring gear 2002-2002 | MARKED: FA 57 A02, FA 57 C01 | 1 | |||
| 25 | 5442660 Ring gear 2002-2002 | 1 | |||
| 26 | 5442793 Thrust washer 2002-2002 | MARKED: FA 57 A01 | 1 | |||
| 26 | 5442678 Thrust washer 2002-2002 | MARKED: FA 57 A02, FA 57 C01 | 1 | |||
| 27 | 5442686 Lock ring 2002-2002 | 1 | |||
| 28 | 5250840 90442170 Thrust washer | 1 | |||
| 29 | 5442702 93170001 Thrust washer | 1 | |||
| 30 | 5442710 Sun gear 2002-2002 | 1 | |||
| 31 | 5442728 93179292 Thrust washer | 1 | |||
| 32 | 5447263 93188275 Thrust washer (54 42 736) | 1 | |||
| 33 | 5442744 93179300 Thrust washer | 1 | |||
| 34 | 5250907 90348839 Thrust washer T=0.81 | 1 | |||
| 34 | 5250915 90442172 Thrust washer T=1.15 | 1 | |||
| 35 | 5443783 Thrust washer 2002-2002 | 1 | |||
