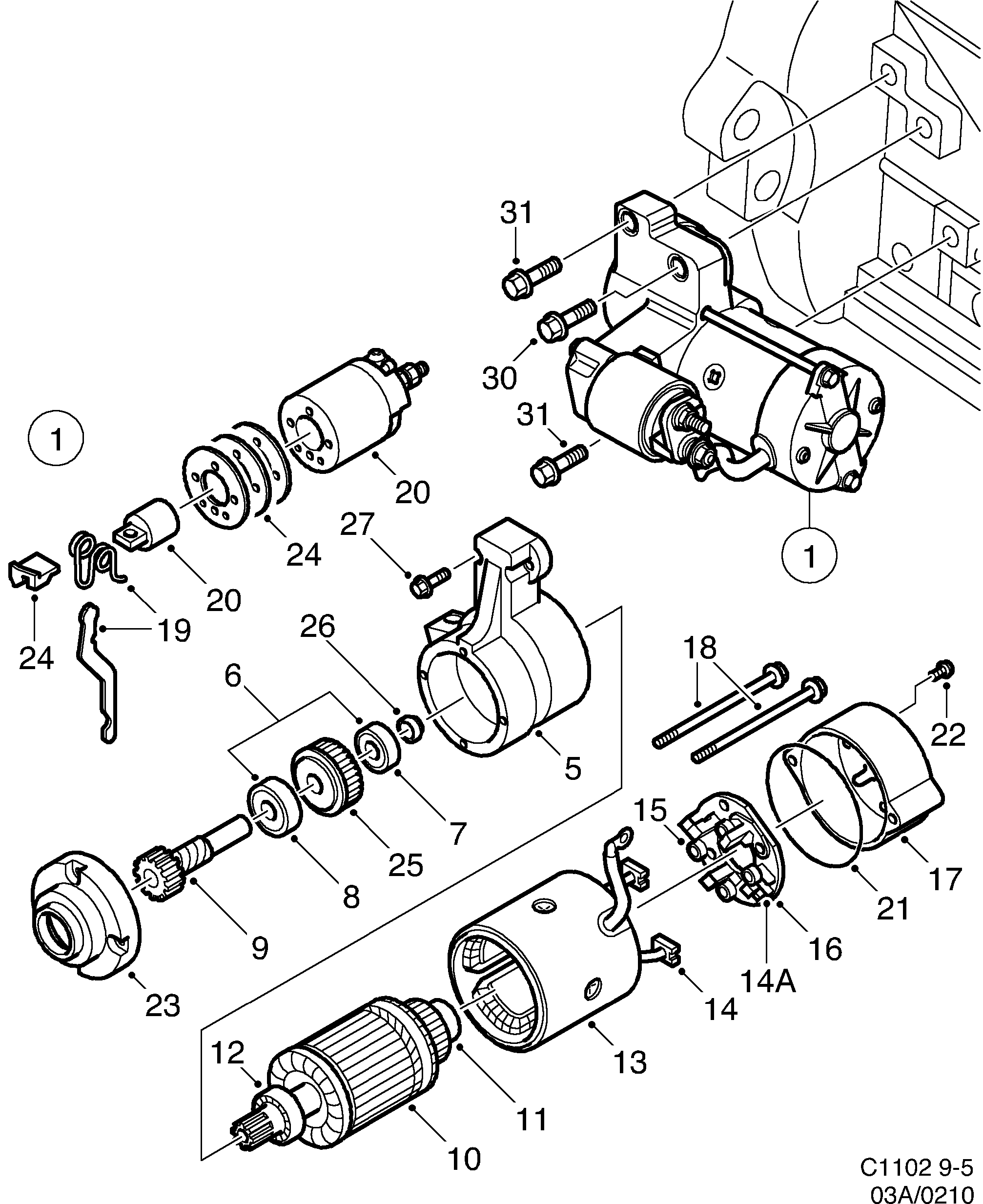

210: Electrical, general - Starter motor
(2002 - 2005 | D223L, D308L) | For 9-5 (9600) (2003)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 5343850 Starter motor 2002-2003 | (53 40 419) | 1 | |
| 5 | 5956818 Gear house | 1 | |
| 6 | 5956669 Drive gear | 1 | |
| 7 | 5956347 Ball bearing | 1 | |
| 8 | 5956339 Ball bearing | 1 | |
| 9 | 5956271 Drive gear | 1 | |
| 10 | 5956651 Rotor | 1 | |
| 11 | 5956248 Ball bearing | 1 | |
| 12 | 5956255 Ball bearing | 1 | |
| 13 | 5956784 Casing | 1 | |
| 14 | 5956370 Brush set | 2 | |
| 14A | 5956370 Brush set | 2 | |
| 15 | 5956289 Spring | 4 | |
| 16 | 5956388 Plate | 1 | |
| 17 | 5956792 Cap | 1 | |
| 18 | 5956099 Screw | 2 | |
| 19 | 5956693 Engagement lever | 1 | |
| 20 | 5956800 Actuator solenoid | 1 | |
| 21 | 5956396 O-ring | 1 | |
| 22 | 5956404 Screw | 2 | |
| 23 | 5956685 Drive gear | 1 | |
| 24 | 5956826 Cap | 1 | |
| 25 | 5956677 Drive gear | 1 | |
| 26 | 5956263 Cap | 1 | |
| 27 | 5956313 Screw | 2 | |
| 30 | 7969298 Screw | 1 | |
| 31 | 5125562 Screw | 2 |
