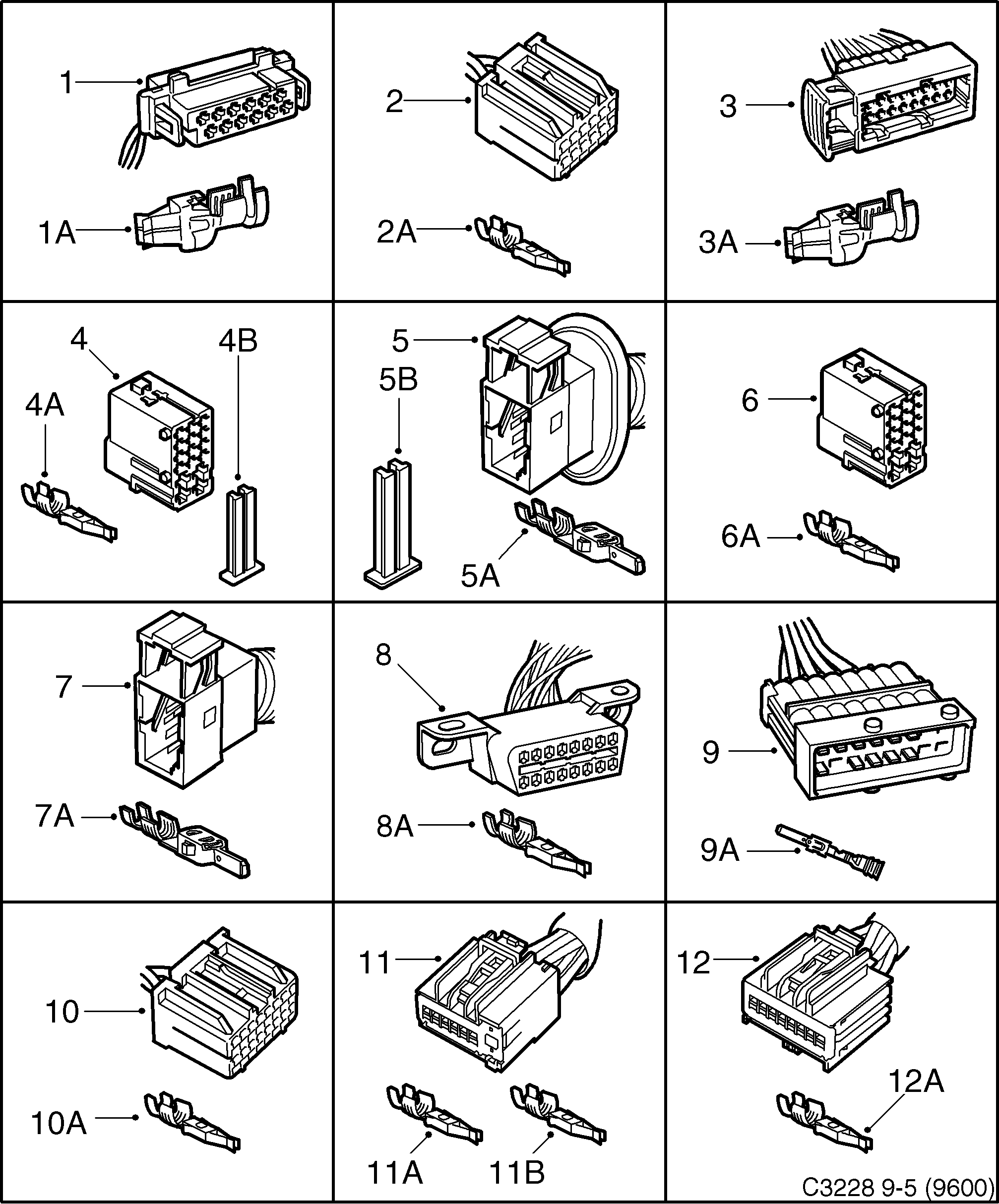

500: Electrical, connector - Wiring and fuses - Contact housing etc - 12-pin - 16-pin

(2002 - 2010) | For 9-5 (9600) (2006)

Pos.	Part No.	Description	Usage	Qty
1	9525031 Contact housing 12-pin \| SUNROOF ENGINE, CD-CHANGER	Contact housing	12-pin SUNROOF ENGINE, CD-CHANGER	X
1A	9120957 12789796 Cable terminal AREA 1,0-2,5 MM2	Cable terminal	AREA 1,0-2,5 MM2	X
2	12806015 Connector housing 10-pin \| ONSTAR	Connector housing	10-pin ONSTAR	X
2A	12806021 Cable terminal	Cable terminal		X
3	4114401 12791005 Connector housing 16-pin \| LIGHT SWITCH, TRANSMISSION RANGE SWITCH, JOINT FRONT HARNESS,	Connector housing	16-pin LIGHT SWITCH, TRANSMISSION RANGE SWITCH, JOINT FRONT HARNESS,	X
3A	4061586 Cable terminal AREA 1,0-2,5 MM2	Cable terminal	AREA 1,0-2,5 MM2	X
4	4737060 Connector housing 16-pin \| JOINT REAR DOOR HARNESS, JOINT REAR HARNESS	Connector housing	16-pin JOINT REAR DOOR HARNESS, JOINT REAR HARNESS	X
4A	4115499 12790414 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
4B	4737086 Locking	Locking		X
5	4737102 Connector housing 16-pin \| JOINT INSTRMENT HARNESS,SPARE FUEL PUMP/REAR ABS,JOINT REAR HARNESS	Connector housing	16-pin JOINT INSTRMENT HARNESS,SPARE FUEL PUMP/REAR ABS,JOINT REAR HARNESS	X
5A	4115499 12790414 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
5B	4737086 Locking	Locking		X
6	4737078 Connector housing 16-pin \| JOINT REAR HARNESS	Connector housing	16-pin JOINT REAR HARNESS	X
6A	9120684 12789794 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
6A	4466801 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
6B	4737086 Locking	Locking		X
6C	4737094 Locking	Locking		X
7	4737110 Connector housing 16-pin \| JOINT INSTRUMENT HARNESS	Connector housing	16-pin JOINT INSTRUMENT HARNESS	X
7A	12789932 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
7A	4692547 12790627 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
7A	4692612 12790614 Cable terminal 2004-2010 \| AREA 0,5-1,0 MM2	Cable terminal	2004-2010 AREA 0,5-1,0 MM2	X
7B	4737086 Locking	Locking		X
7C	4737094 Locking	Locking		X
8	4807954 Connector housing 16-pin \| SCAN TOOL	Connector housing	16-pin SCAN TOOL	X
8A	4466801 Cable terminal AREA 0,5-1,0 MM2	Cable terminal	AREA 0,5-1,0 MM2	X
9	5359476 Connector housing 16-pin \| TCM GEARBOX	Connector housing	16-pin TCM GEARBOX	X
9A	4115259 Cable terminal	Cable terminal		X
10	12806016 Connector housing 16-pin \| ONSTAR	Connector housing	16-pin ONSTAR	X
10A	12806021 Cable terminal	Cable terminal		X
11	12762945 Connector housing 2006-2010 \| 16-pin radio	Connector housing	2006-2010 16-pin radio	X
11A	12763137 Cable terminal AREA 0,35 - 0,5 MM2	Cable terminal	AREA 0,35 - 0,5 MM2	X
11B	12763138 Cable terminal AREA 0,75 MM2	Cable terminal	AREA 0,75 MM2	X
12	12762945 Connector housing 2006-2010 \| 14 Pin radio	Connector housing	2006-2010 14 Pin radio	X
12A	12191812 Cable terminal	Cable terminal		X
	12805741 Connector housing 16-pin XM Radio	Connector housing	16-pin XM Radio	X
	12806027 Locking	Locking		X
