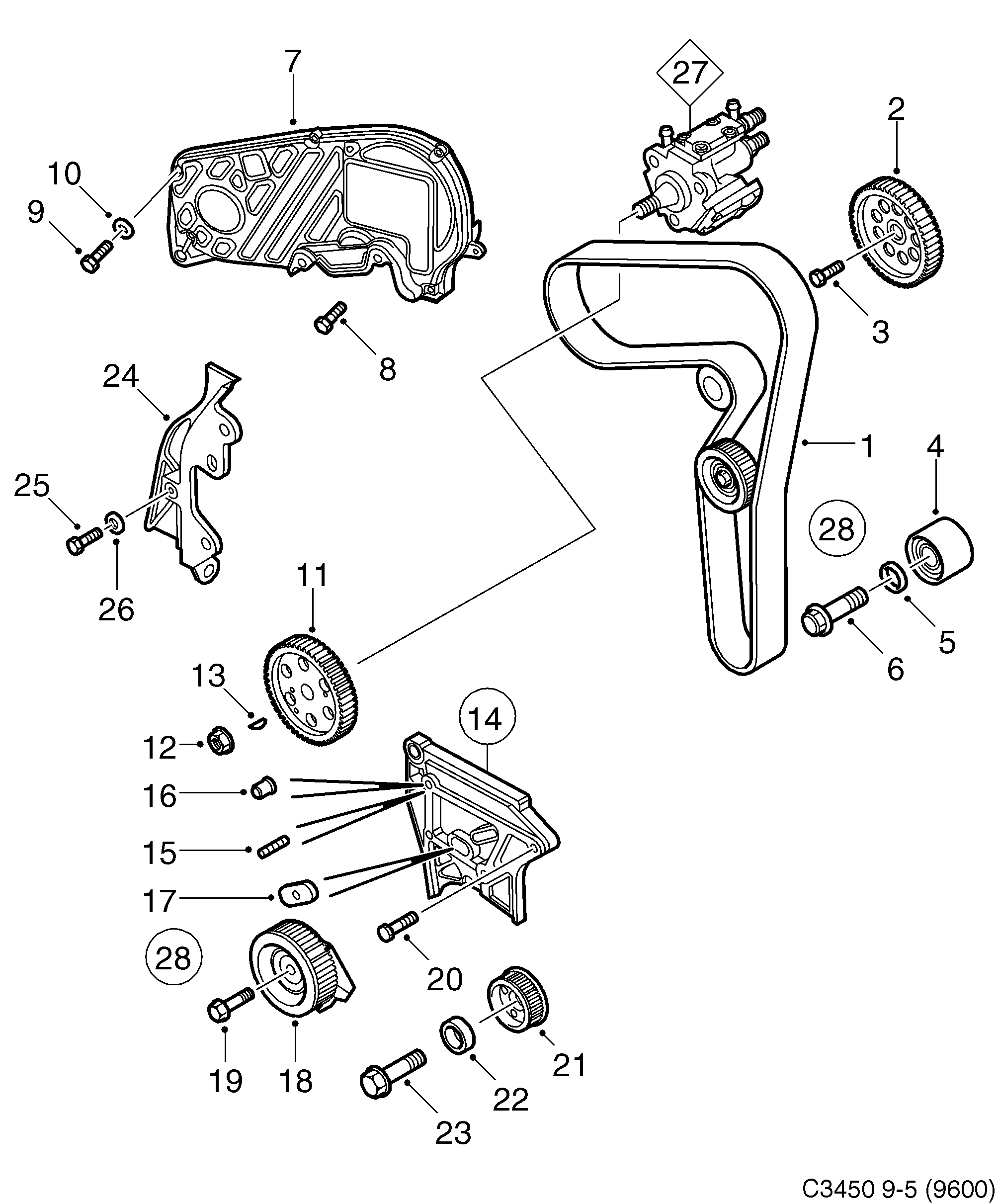

290: Engine - Short block - Transmission
(2006 - 2010 | Z19DTH) | For 9-5 (9600) (2007)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 93178812 Tooth belt | 1 | |||
| 2 | 93178380 Chain gear | 1 | |||
| 3 | 93177298 Screw | 1 | |||
| 4 | 93178807 Guide roller | 1 | |||
| 5 | 93178972 Washer 10X22 | 1 | |||
| 6 | 93178810 Screw | 1 | |||
| 7 | 55195971 Cover | 1 | |||
| 8 | 93177417 Screw M8X20 | 2 | |||
| 9 | 93178833 Screw M6X30 | 4 | |||
| 10 | 93178977 Washer 6X11 | 4 | |||
| 11 | 93178823 Chain gear | 1 | |||
| 12 | 93178824 Nut M14X1,5 | 1 | |||
| 13 | 93179143 Key 4X6,5 | 1 | |||
| 14 | 55566199 Bracket | 1 | |||
| 15 | 93178973 Screw | 1 | |||
| 16 | 93178974 Spacer ring | 1 | |||
| 17 | 93178813 Nut | 1 | |||
| 18 | 93186866 55212159 Tension pulley | 1 | |||
| 19 | 93178814 Screw | 1 | |||
| 20 | 93178829 Screw M8X25 | 1 | |||
| 21 | 93178821 Crankshaft gear | 1 | |||
| 22 | 93178818 Spacer ring | 1 | |||
| 23 | 93178819 Screw | 1 | |||
| 24 | 93178976 Timing gear casing | 1 | |||
| 25 | 93178832 Screw M6X18 | 2 | |||
| 26 | 93178977 Washer 6X11 | 2 | |||
| 27 | 1 | ||||
| 28 | 93191278 Engine timing parts, kit | 1 | |||
| 1 | 93178812 Tooth belt | 1 | |||
| 4 | 93178807 Guide roller | 1 | |||
| 5 | 93178972 Washer 10X22 | 1 | |||
| 6 | 93178810 Screw | 1 | |||
| 17 | 93178813 Nut | 1 | |||
| 18 | 93186866 55212159 Tension pulley | 1 | |||
| 19 | 93178814 Screw | 1 | |||
