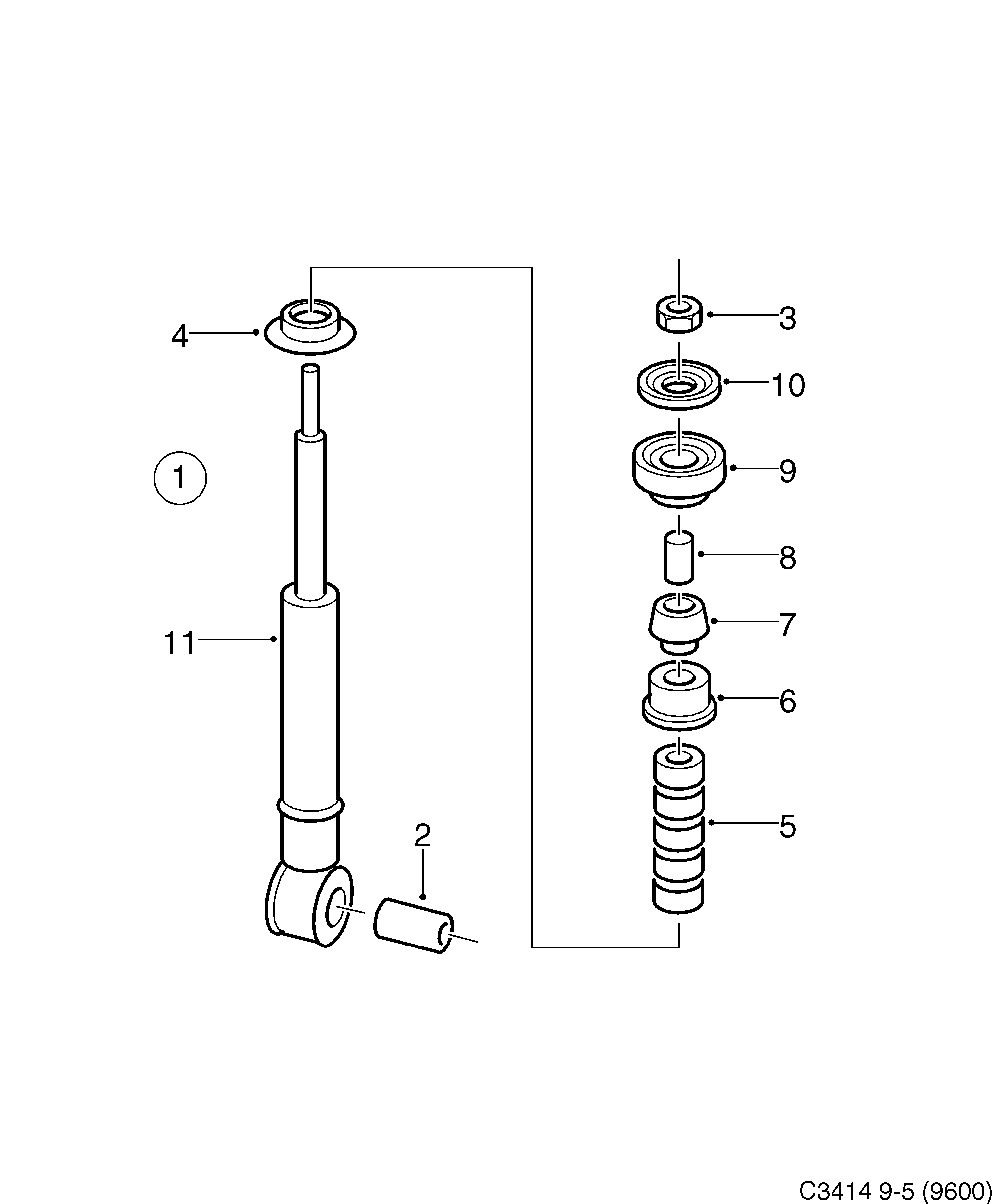

230: Suspension system - Kits - Suspension system - Wheel
(2006 - 2010) | For 9-5 (9600) (2007)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12765949 Rear shock absorber assy 2006-2008 | Yellow | CODE=30 | 1 | |
| 1 | 12765950 Rear shock absorber assy purple | CODE=31 | 1 | |
| 1 | 12765951 Rear shock absorber assy Sport chassis Blue | CODE=32 | 1 | |
| 1 | 12765952 Rear shock absorber assy Sport chassis Grey | CODE=33 | 1 | |
| 2 | 4566832 Bushing Not as separate spare part. | 1 | |
| 3 | 8151474 92153199 Lock nut | 1 | |
| 4 | 90496708 Ring | 1 | |
| 5 | 12759389 Bump stop | 1 | |
| 6 | 90495619 Ring nut | 1 | |
| 7 | 5058326 Bushing | 1 | |
| 8 | 4246351 Sleeve | 1 | |
| 9 | 5058318 Bushing | 1 | |
| 10 | 90495623 Ring nut | 1 | |
| 11 | 12760016 Shock absorber Not as separate spare part. | CODE=30 | 1 | |
| 11 | 12760017 Shock absorber Not as separate spare part. | CODE=31 | 1 | |
| 11 | 12760018 Shock absorber Not as separate spare part. | CODE=32 | 1 | |
| 11 | 12760019 Shock absorber Not as separate spare part. | CODE=33 | 1 |
