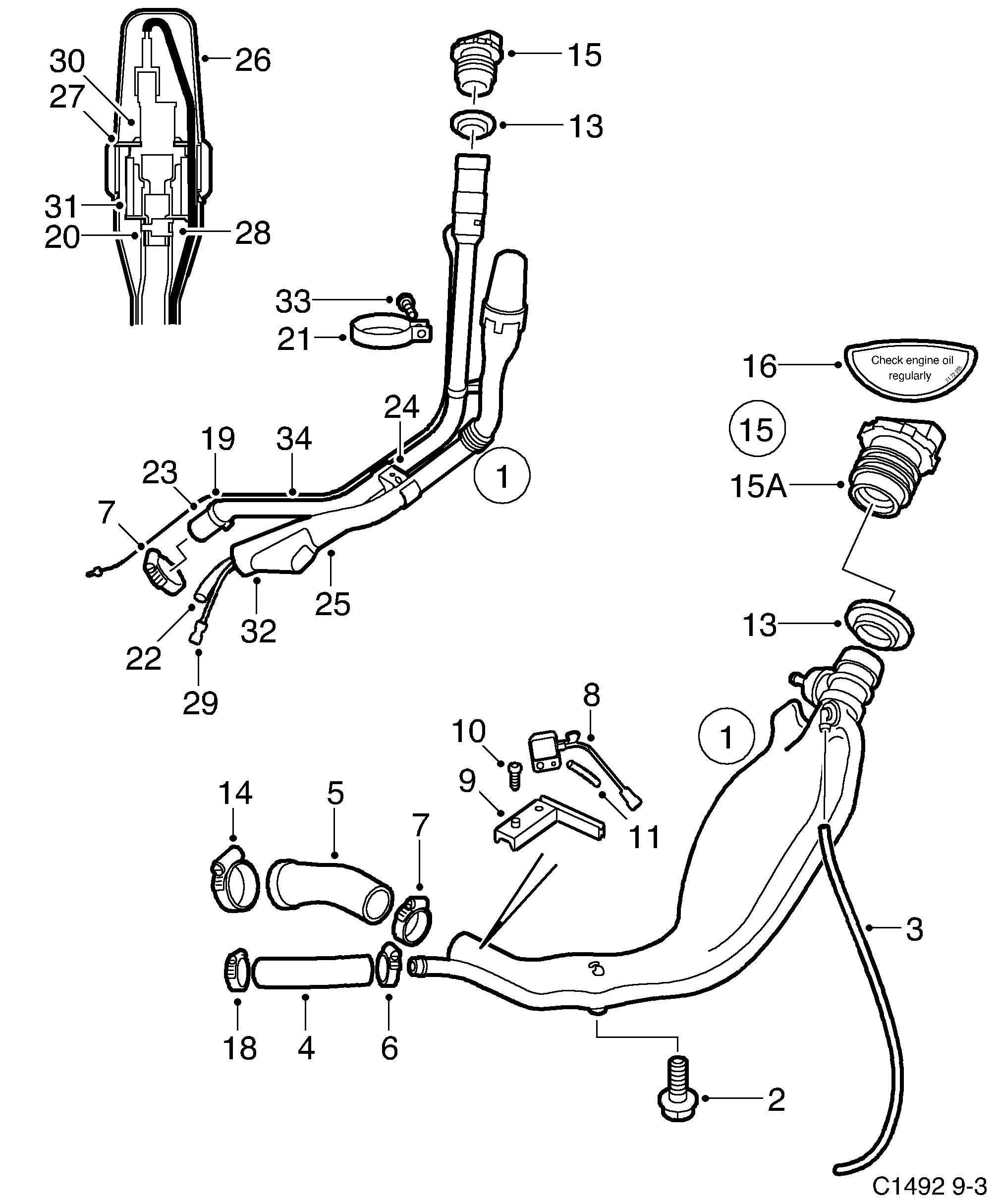

530: Engine - Fuel system - Filler pipe
(1998 - 1999) | For 9-3 (9400) (1998)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 4727210 5322292 Filler pipe LHD | B204L, PETROL | 1 | |
| 1 | 4726592 5322300 Filler pipe LHD | B204L, PETROL | 1 | |
| 1 | 4727632 5194154 Filler pipe PETROL | 1 | |
| 1 | 4397030 Filler pipe PETROL | 1 | |
| 1 | 4445979 5462346 Filler pipe PETROL | 1 | |
| 1 | 4622593 Filler pipe PETROL | 1 | |
| 1 | 4727632 5194154 Filler pipe DIESEL | 1 | |
| 2 | 4940896 92152212 Screw | 1 | |
| 3 | 4445631 Hose Not as separate spare part. | 1 | |
| 4 | 4440244 Hose | 1 | |
| 4 | 4394508 Hose LHD | 1 | |
| 5 | 4622015 Hose | 1 | |
| 5 | 4727269 Hose LHD | 1 | |
| 6 | 4526836 Hose clamp | 1 | |
| 7 | 4622304 Hose clamp | 1 | |
| 7 | 4940029 Hose clamp LHD | 1 | |
| 9 | 4396263 Bracket LHD | 1 | |
| 10 | 7967771 Screw LHD | 1 | |
| 11 | 4396313 Hose LHD | 1 | |
| 8 | 4444758 Pressure sensor LHD | NLS | 1 | |
| 13 | 4227294 5195201 Sealing collar -1999 | 1 | |
| 14 | 4622304 Hose clamp | 1 | |
| 15A | 4397048 Filler cap PETROL | 1 | |
| 15A | 4727038 Filler cap LHD | PETROL | Name of the substance Di-(2-ethylhexyl)phthalat CAS 117-81-7 Safe use instruction: With appropriate application and proper disposal no risks for health and environment will occur | 1 | |
| 15A | 4727038 Filler cap B204E | Name of the substance Di-(2-ethylhexyl)phthalat CAS 117-81-7 Safe use instruction: With appropriate application and proper disposal no risks for health and environment will occur | 1 | |
| 15 | 5336060 Filler cap DIESEL | 1 | |
| 15A | 5336052 Filler cap DIESEL | 1 | |
| 16 | 5172655 Label DIESEL | 1 | |
| 18 | 4526836 Hose clamp | 1 | |
| 19 | 4441697 Hose clamp LHD | 1 | |
| 20 | 4576583 90467194 Hose clamp LHD | 1 | |
| 21 | 4727236 5193594 Hose clamp LHD | 1 | |
| 22 | 4727251 5193586 Hose LHD | 1 | |
| 23 | 4727269 Hose LHD | 1 | |
| 24 | 4728093 Hose clamp LHD | 1 | |
| 25 | 4728507 5195300 Air tube LHD | 1 | |
| 26 | 4728515 Cover LHD | 1 | |
| 27 | 4728523 Washer LHD | 1 | |
| 28 | 4728531 Filter retainer LHD | 1 | |
| 29 | 4728549 Connection LHD | 1 | |
| 30 | 4729091 4966826 Shut-off valve LHD | B204L | 1 | |
| 31 | 4729109 Filter LHD | B204L | 1 | |
| 32 | 4876025 Seal LHD | 1 | |
| 33 | 4940631 Screw | 1 | |
| 34 | 4961561 Hose LHD | Not as separate spare part. | 1 | |
| 34 | 4961702 Hose LHD | Not as separate spare part. | 1 |
