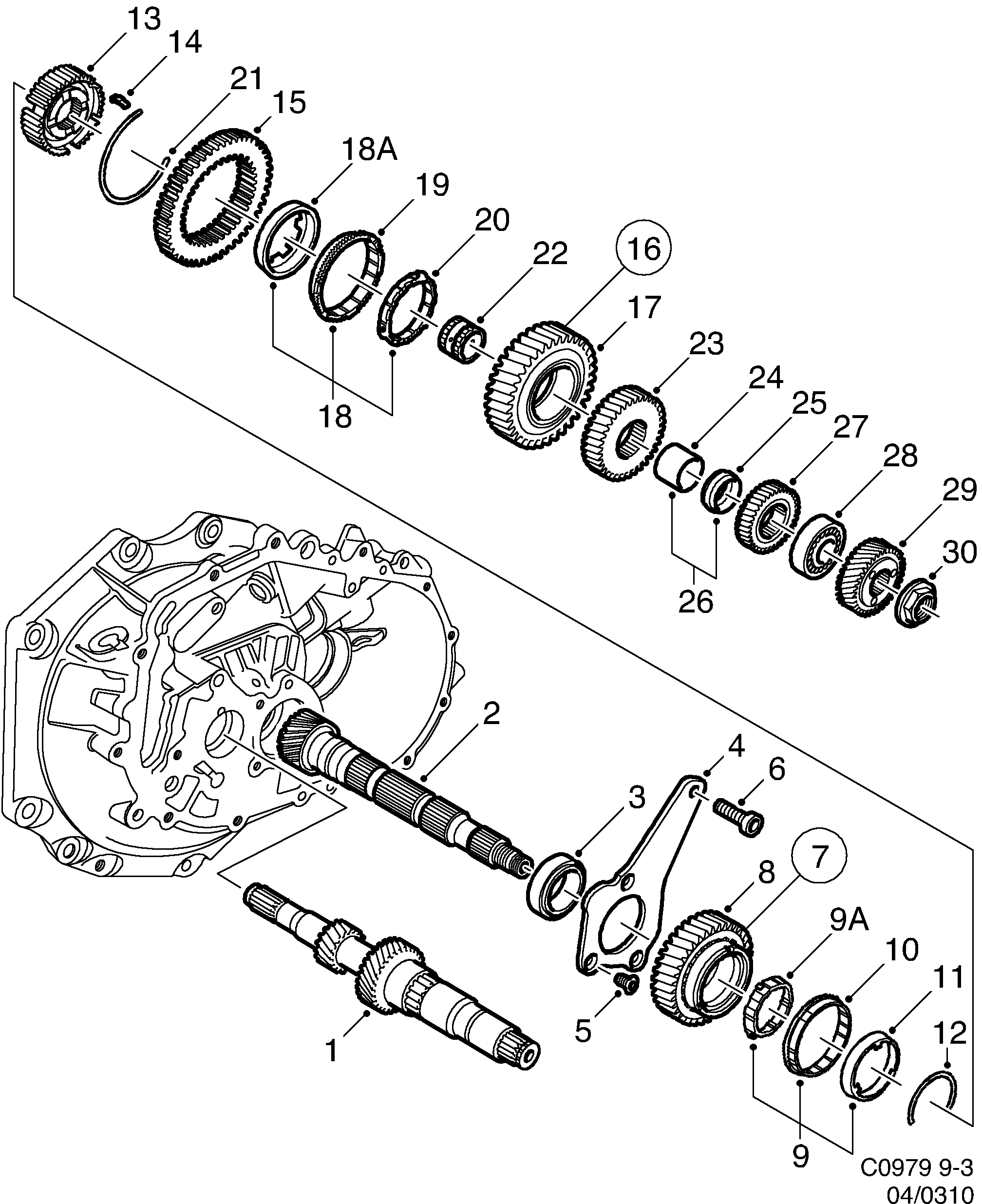

310: Transmission - Gear box, manual - Shafts, gears - Output shaft
(1998 - 2003 | M) | For 9-3 (9400) (1999)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 1 | ||||
| 2 | 8749848 8749103 Pinion shaft 1998-2000 | B204I | 1 | |||
| 2 | 8749103 Pinion shaft 1999-2000 | B204I | 1 | |||
| 2 | 8749095 90490905 Pinion shaft 1999-1999 | B204L | 1 | |||
| 2 | 8749095 90490905 Pinion shaft 1999-1999, LHD | B204L | 1 | |||
| 2 | 8749020 55354668 Pinion shaft 1999-2002 | B204L, B204E, B204R, B235R, B205 | 1 | |||
| 2 | 8749020 55354668 Pinion shaft 1999-2002, LHD | B204L, B204E, B204R, B205 | 1 | |||
| 2 | 8749095 90490905 Pinion shaft 1998-2002 | DIESEL | 1 | |||
| 3 | 8729378 90490864 Roller bearing 1998-2001 | 1 | |||
| 4 | 8746687 30564109 Support 4-CYL | 1 | |||
| 5 | 4685186 55561651 Screw 4-CYL | 3 | |||
| 6 | 8059792 92151830 Screw | 1 | |||
| 7 | 8781478 55557717 Gear 1 | 1 | |||
| 8 | 8735862 90490820 Gear 1998-2000 | Not as separate spare part. | 1 | |||
| 9 | 8781734 90511189 Synchromesh | 1 | |||
| 9A | 8740789 30555110 Synchromesh | 1 | |||
| 10 | 8740797 30555111 Synchromesh | 1 | |||
| 11 | 8734436 90372118 Synchromesh | 1 | |||
| 12 | 8734451 90344649 Spring ring | 1 | |||
| 14 | 8735680 90335876 Companion flange | 3 | |||
| 15 | 8735896 55353594 Sleeve 1998-1999 | 1 | |||
| 16 | 8781486 90490939 Gear 2 | 1 | |||
| 17 | 8735847 30546137 Gear Not as separate spare part. | 1 | |||
| 18 | 8781734 90511189 Synchromesh | 1 | |||
| 18A | 8734436 90372118 Synchromesh | 1 | |||
| 19 | 8740797 30555111 Synchromesh | 1 | |||
| 20 | 8740789 30555110 Synchromesh | 1 | |||
| 21 | 8734451 90344649 Spring ring | 1 | |||
| 22 | 8743205 90512198 Bearing bushing | 1 | |||
| 23 | 8734337 90511218 Gear -1999, LHD | PETROL | 3 | 1 | |||
| 23 | 8730319 90541199 Gear 1999-2003 | PETROL | 3 | 1 | |||
| 23 | 8730319 90541199 Gear 1999-, LHD | PETROL | 3 | 1 | |||
| 23 | 8730319 90541199 Gear 1998-2002 | DIESEL | 3 | 1 | |||
| 24 | 8735359 Spacer sleeve 1998-2002 | 1 | |||
| 25 | 8734477 90511220 Sleeve 1998-2002 | 1 | |||
| 27 | 8725327 90511221 Gear 4 | 1 | |||
| 28 | 8748261 90490871 Roller bearing 1998-2001 | 1 | |||
| 29 | 90541200 Gear -1999, LHD | PETROL | 5 | 1 | |||
| 29 | 8747180 90490809 Gear 1999-2003 | PETROL | 5 | 1 | |||
| 29 | 8747180 90490809 Gear 1999-, LHD | PETROL | 5 | 1 | |||
| 29 | 8747180 90490809 Gear 1998-2002 | DIESEL | 5 | 1 | |||
| 30 | 8735516 12755195 Nut 1998-1999 | 1 | |||
