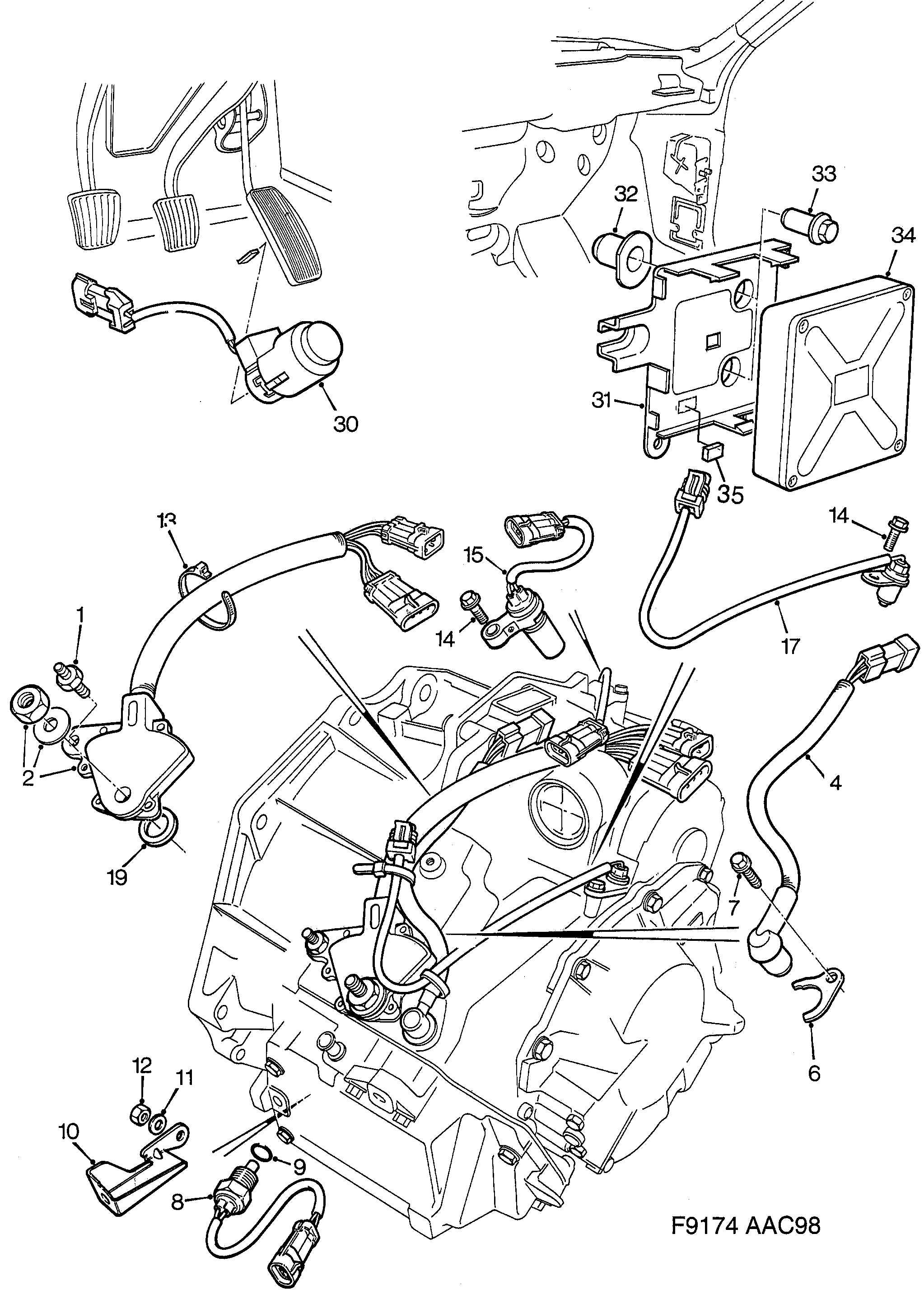

580: Transmission - Gearbox, automatic - Transmission control module - Sensor
(1998 - 2003 | A) | For 9-3 (9400) (1999)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 4625281 Screw | 1 | |||
| 2 | 4926069 5256052 Neutral position switch 1998-1999 | 1 | |||
| 4 | 5257761 Cable harness 1999-2003 | 1 | |||
| 6 | 4625182 Bracket | 1 | |||
| 7 | 4625190 90510904 Screw | 1 | |||
| 8 | 5160106 Transmission fluid temperature sensor | 1 | |||
| 9 | 4490934 90348743 O-ring | 1 | |||
| 10 | 8781965 Protecting casing | 1 | |||
| 11 | 4490967 Washer | 1 | |||
| 12 | 4490959 Nut | 1 | |||
| 13 | 4490975 90348937 Clamp | 3 | |||
| 14 | 4490983 Screw | 2 | |||
| 15 | 8781932 Speed sensor | 1 | |||
| 17 | 8781932 Speed sensor | 1 | |||
| 19 | 4491064 90348718 Seal | 1 | |||
| 30 | 4238226 Kick-down switch 1998-1999 | 1 | |||
| 31 | 4925210 Bracket 1999-2003, LHD | 1 | |||
| 31 | 4925228 Bracket 1999-2003, RHD | 1 | |||
| 32 | 4238309 Spacer clip | 2 | |||
| 33 | 4238291 Nut | 3 | |||
| 34 | 4925871 Transmission control module 1999-2000 | B204E | 1 | |||
| 34 | 4925152 Transmission control module 1999-2000 | B204I | 1 | |||
| 34 | 4925186 Transmission control module 1999-1999 | B204L | 1 | |||
| 34 | 4925749 Transmission control module 1998-1999, LHD | B204L | 1 | |||
| 34 | 4925186 Transmission control module 1999-1999, LHD | B204L | 1 | |||
| 35 | 4609533 Spacer | 1 | |||
