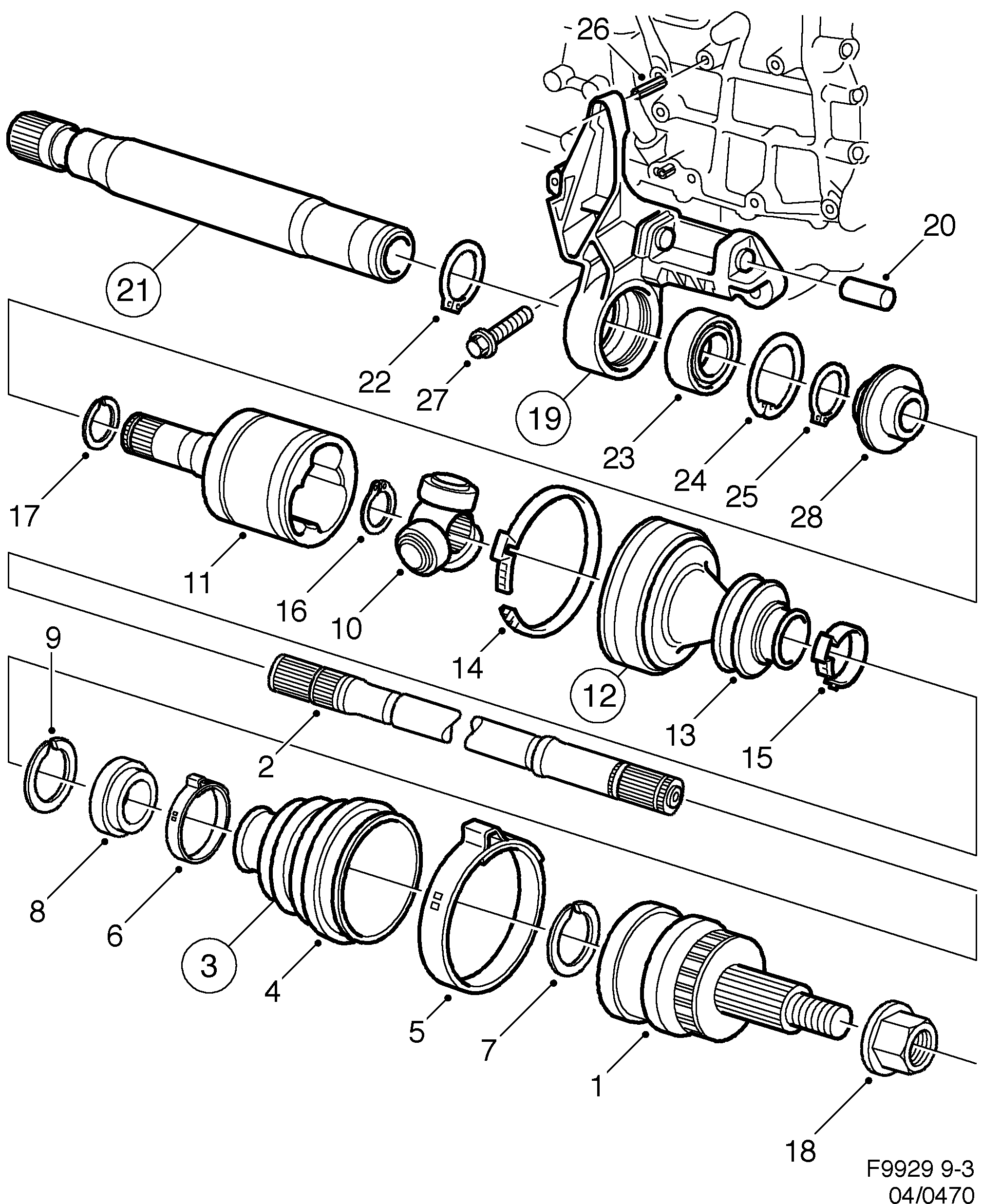

470: Transmission - Drive shaft - Outer universal joint
(1999 - 2002 | B204E, B204I, B205E, B205L, B205R, B235E, B235R) | For 9-3 (9400) (2000)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 5171186 5232897 Universal joint -2000 | 2 | |
| 1 | 5232897 Universal joint 2000- | 2 | |
| 2 | 5120167 Drive shaft | 2 | |
| 3 | 8994154 Bellows kit | 2 | |
| 4 | 4686986 Bellows | 1 | |
| 5 | 4687018 Clamp | 1 | |
| 6 | 4687000 Clamp | 1 | |
| 7 | 4686978 Lock ring | 1 | |
| 8 | 4687091 Spacer ring | 2 | |
| 9 | 4686994 Spring washer | 2 | |
| 10 | 4686895 Companion flange | 2 | |
| 11 | 4686911 Companion flange | 2 | |
| 12 | 8994170 Bellows kit | 2 | |
| 13 | 4686945 Bellows Not as separate spare part. | 1 | |
| 14 | 4686937 Clamp | 1 | |
| 15 | 4686952 Clamp | 1 | |
| 16 | 4686903 Lock ring | 2 | |
| 17 | 4686929 Lock ring | 2 | |
| 18 | 5125018 Lock nut | 2 | |
| 19 | 4926705 5440425 Bearing bracket 1999-2000 | 1 | |
| 20 | 7593080 Bushing | 1 | |
| 21 | 5024187 Countershaft | 1 | |
| 22 | 9378332 92152060 Retaining ring | 1 | |
| 23 | 9381450 12785906 Ball bearing | 1 | |
| 24 | 7973738 12788653 Retaining ring | 1 | |
| 25 | 9378332 92152060 Retaining ring | 1 | |
| 26 | 7974074 Cotter pin | 2 | |
| 27 | 7978224 11900368 Screw | 3 | |
| 28 | 4578241 30566341 Sealing ring | 1 |
