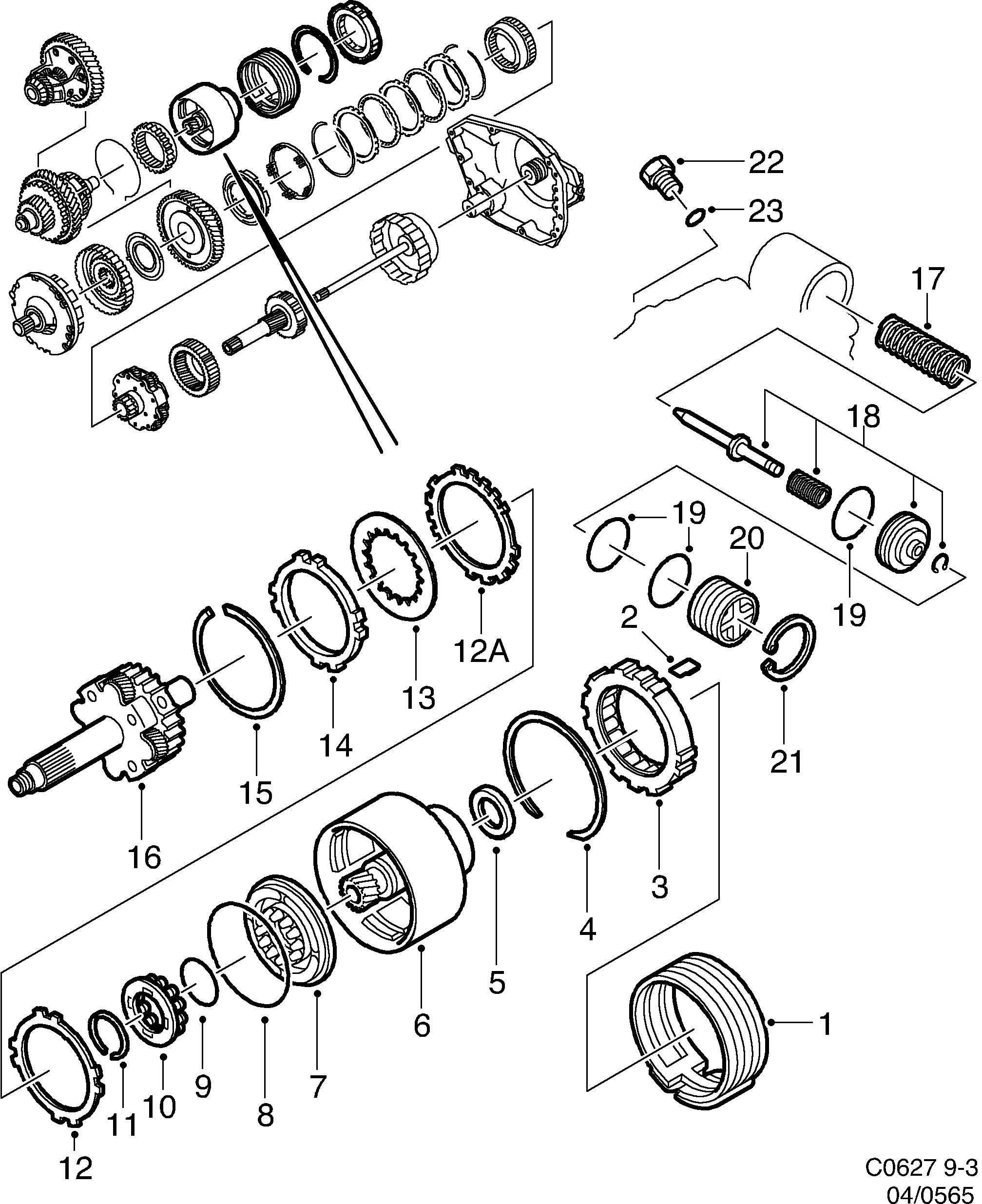

565: Transmission - Gearbox, automatic - Clutch C3 and freewheel F3 - Brake B4
(1998 - 2003 | A, M) | For 9-3 (9400) (2001)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 5251210 Brake lining | 1 | |||
| 2 | 5251194 Retainer | 1 | |||
| 3 | 5251202 Clutch | 1 | |||
| 4 | 5251186 Lock ring | 1 | |||
| 5 | 5251061 Angle washer 4-CYL TURBO | MARKED: FA 44907, FA 44801 | 1 | |||
| 6 | 5255591 9119600 Drum 2001-2003 | 4-CYL TURBO | MARKED: FA 44707, 44907, 44801 | 1 | |||
| 7 | 5255609 Piston 2001-2003 | 4-CYL TURBO | MARKED: FA 44707, FA 44907, FA 44801 | 1 | |||
| 8 | 5250949 O-ring 2001-2003 | 4-CYL TURBO | MARKED: FA 44707, FA 44907, FA 44801 | 1 | |||
| 9 | 5253612 93178241 O-ring | 1 | |||
| 10 | 5250980 90348847 Return spring | 1 | |||
| 11 | 5250972 90348849 Lock ring | 1 | |||
| 12 | 5251004 Plate 2001-2003 | 4-CYL TURBO | MARKED: FA 44707, FA 44905, FA 44801 | 1 | |||
| 12A | 5255617 Plate 2001-2003 | 4-CYL TURBO | MARKED: FA 44707, FA 44905, FA 44801 | 3 | |||
| 13 | 5251012 Clutch disc 2001-2003 | 4-CYL TURBO | MARKED: FA 44707, FA 44907, FA 44801 | 3 | |||
| 14 | 5251020 Clutch disc 2001-2003 | 4-CYL TURBO | 3,6MM; MARKED: FA 44707, FA 44907, 44801 | 1 | |||
| 14 | 5251038 Clutch disc 2001-2003 | 4-CYL TURBO | 3,8MM; MARKED: FA 44707, FA 44907, FA 44801 | 1 | |||
| 14 | 5251046 Clutch disc 2001-2003 | 4-CYL TURBO | 4,0MM; MARKED: FA 44707, FA 44907, FA44801 | 1 | |||
| 15 | 5251053 Lock ring 2001-2003 | 4-CYL TURBO | MARKED: FA 44707, FA 44907, FA44801 | 1 | |||
| 16 | 1 | ||||
| 17 | 5251251 Compression spring | 1 | |||
| 18 | 5253729 Piston L=70.5MM | 1 | |||
| 18 | 5253737 Piston L=72MM | 1 | |||
| 19 | 5253711 O-ring | 3 | |||
| 20 | 5253745 Cover | 1 | |||
| 21 | 5253752 Lock ring | 1 | |||
| 22 | 5251285 93185203 Plug | 1 | |||
| 23 | 5164421 90348863 O-ring | 1 | |||
