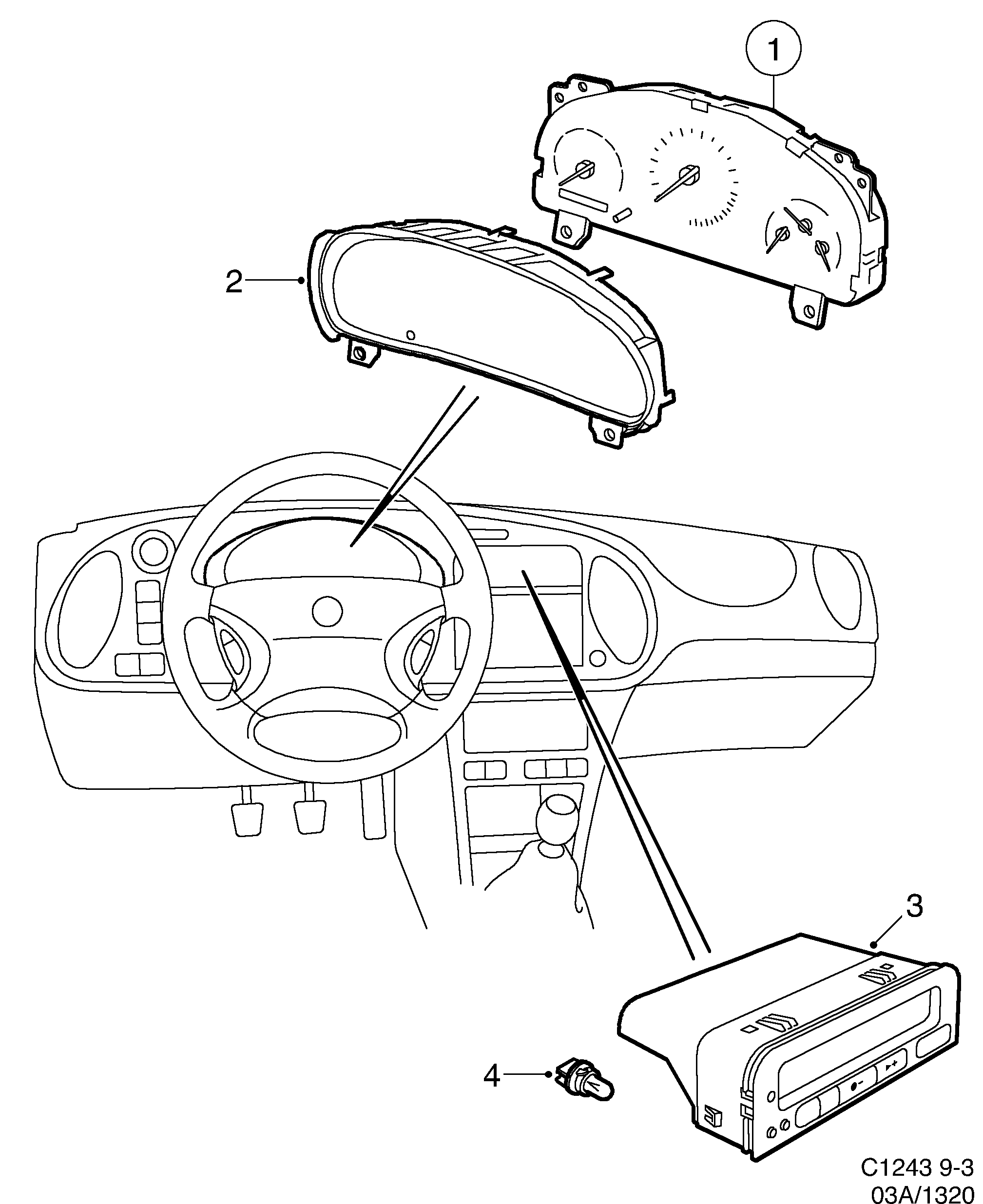

1320: Electrical, general - Wiring and fuses - Instrument
(2002 - 2003) | For 9-3 (9400) (2002)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 5373147 Main instrument unit B205E | KM/H | 1 | |
| 1 | 5373246 Main instrument unit B205E | KM/H | 1 | |
| 1 | 5373154 Main instrument unit B205E | MPH | 1 | |
| 1 | 5373253 Main instrument unit B205E | MPH | 1 | |
| 1 | 5373162 Main instrument unit 2002-2002 | B205L, B205R, B235R | KM/H | 1 | |
| 1 | 5373170 Main instrument unit 2002-2002 | B205R, B205L, B235R | MPH | 1 | |
| 1 | 5373261 Main instrument unit 2002-2002 | B205R, B205L, B235R | KM/H | 1 | |
| 1 | 5373279 Main instrument unit 2002-2002 | B205R, B205L, B235R | MPH | 1 | |
| 1 | 5373188 Main instrument unit 2002-2002 | D223L | KM/H | 1 | |
| 1 | 5373196 Main instrument unit 2002-2002 | D223L | MPH | 1 | |
| 2 | 5371224 Cover glass | 1 | |
| 3 | 12806118 Information display Programmed using a TECH 2 Scan Tool. | (5263215) | 1 | |
| 3 | 12806119 Information display With trip computer. Programmed using a TECH 2 Scan Tool. | (5263223) | 1 | |
| 4 | 4087482 Bulb 1,8 WATT | 6 |
