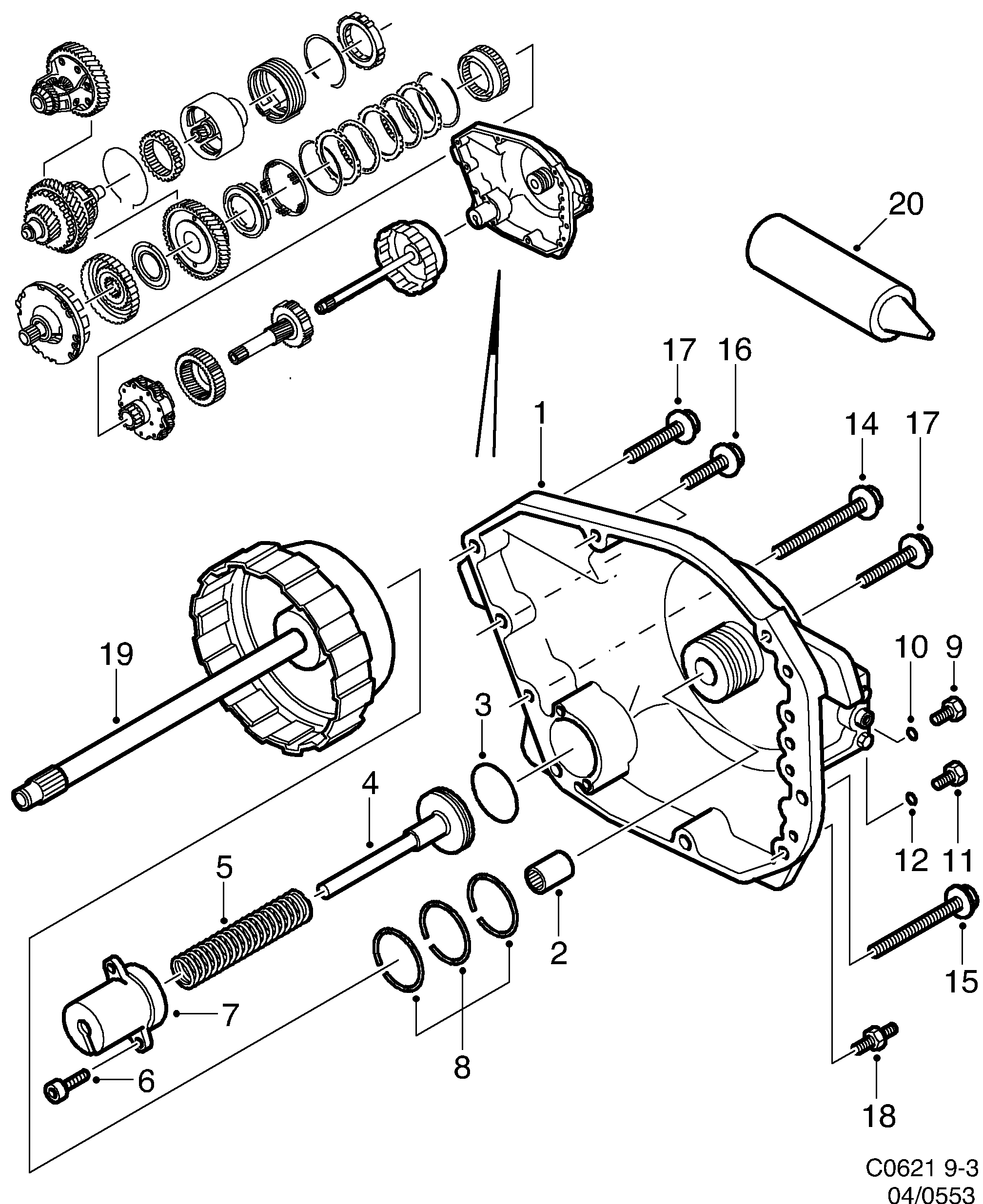

553: Transmission - Gearbox, automatic - End cover
(1998 - 2003 | A) | For 9-3 (9400) (2003)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 5254974 Cover 1999-2003 | 1 | |||
| 2 | 5447255 Needle bearing 1999-2003 | 1 | |||
| 3 | 5164926 93188441 O-ring | 1 | |||
| 4 | 5254990 Piston 4-CYL TURBO | 1 | |||
| 5 | 5164942 Compression spring 1999-2003 | 4-CYL TURBO | 1 | |||
| 6 | 5255351 90399357 Screw | 2 | |||
| 7 | 5164959 Cover | 1 | |||
| 8 | 5164967 90512224 O-ring | 3 | |||
| 9 | 4491155 5164975 Plug | 1 | |||
| 10 | 4491163 O-ring | 1 | |||
| 11 | 4491072 90007874 Plug | 4 | |||
| 12 | 4491080 90007873 O-ring | 4 | |||
| 14 | 5164868 90399339 Screw M8 x 45 | 3 | |||
| 15 | 5250030 90399340 Screw M8 x 48 | X | |||
| 16 | 5250014 90541805 Screw M6 x 16 | 2 | |||
| 17 | 5250022 Screw M8 x 25 | 2 | |||
| 18 | 5250006 55352223 Screw M8 x 48 | 1 | |||
| 19 | |||||
| 20 | 5164637 93165267 Flange sealant | X | |||
