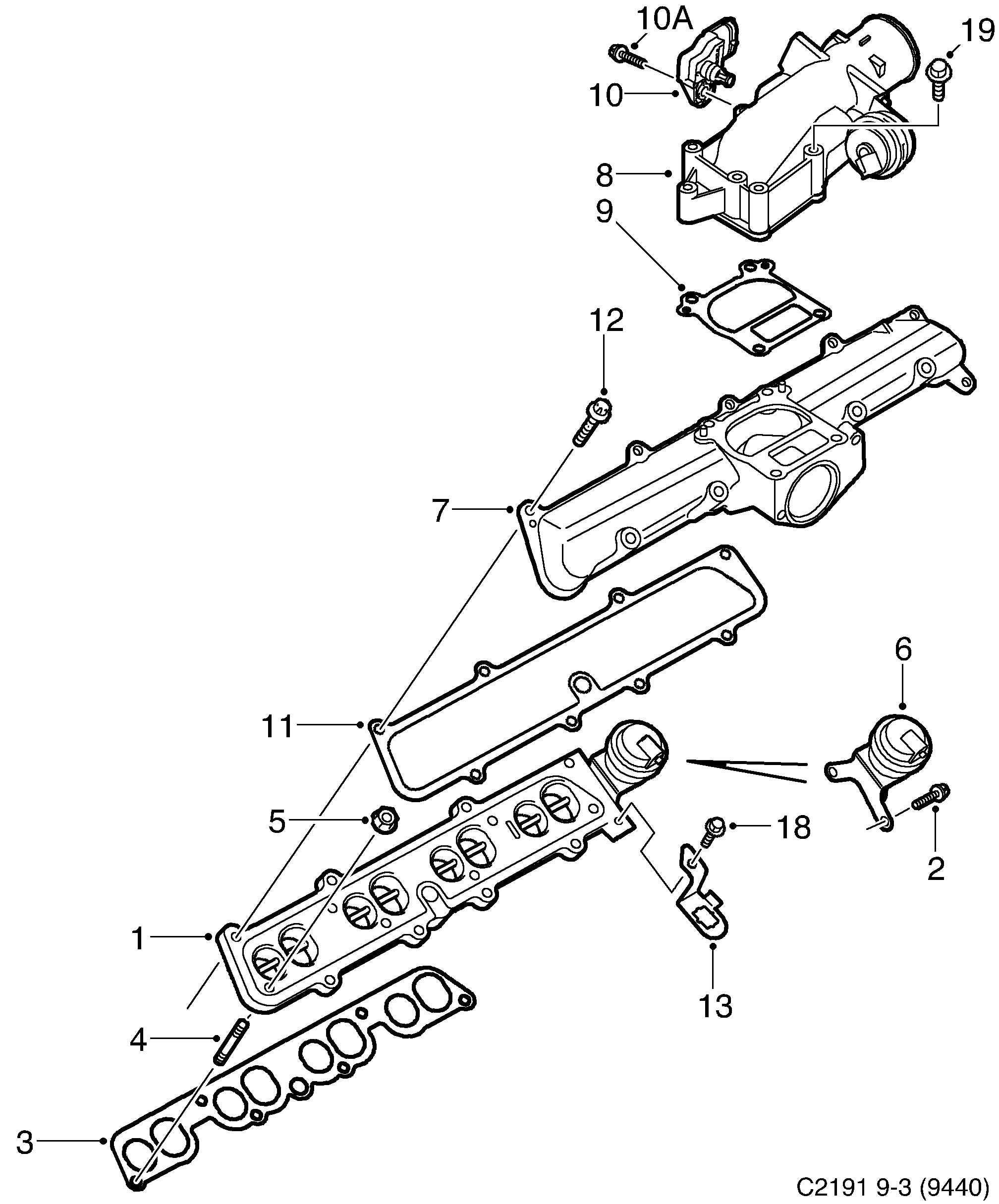

4050: Engine - Intake and exhaust system - Inlet pipe
(2003 - 2004 | D223L) | For 9-3 (9440) (2003)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 55351529 Intake manifold | 1 | |
| 2 | 11093881 Screw | 2 | |
| 3 | 90500940 Gasket | 1 | |
| 4 | 9128191 Stud | 7 | |
| 5 | 90502418 Nut | 7 | |
| 6 | 5333950 Vacuum box | 1 | |
| 7 | 24461453 55351994 Intake manifold | 1 | |
| 7 | 55351994 Intake manifold | 1 | |
| 8 | 55350621 Intake manifold | 1 | |
| 9 | 9226544 Gasket | 1 | |
| 10 | 24459853 93171176 Intake air temperature sensor | 1 | |
| 10A | 11095001 Screw | 1 | |
| 11 | 9226543 Gasket | 1 | |
| 12 | 11093871 11093872 Screw | 8 | |
| 13 | 90568019 Bracket | 1 | |
| 18 | 11900322 Screw | 1 | |
| 19 | 11095271 Screw | 4 |
