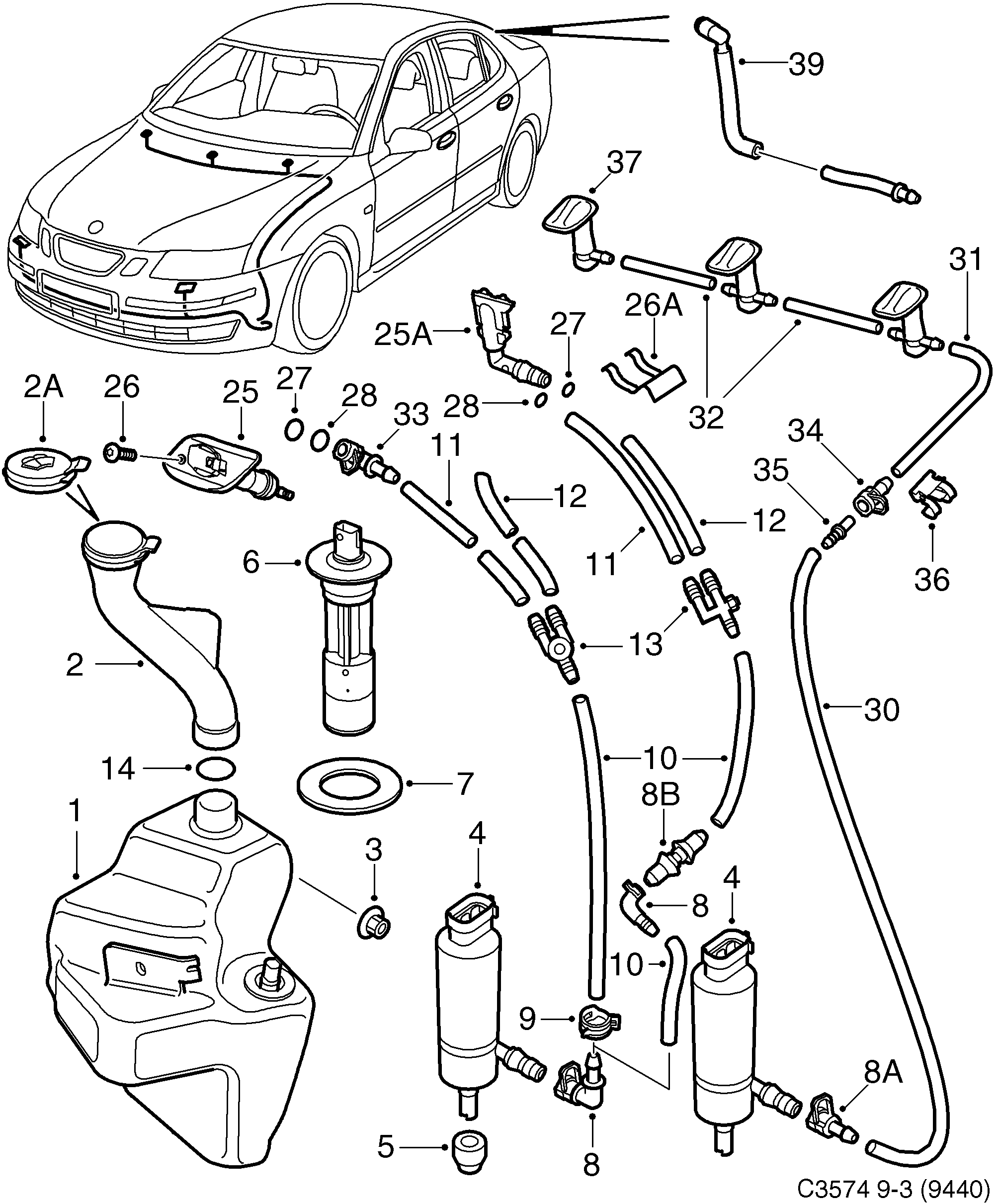

1800: Electrical, general - Electric equipment, other - Washer unit
(2003 - 2011 | 4D, CV, 5D) | For 9-3 (9440) (2003)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12791058 Washer fluid reservoir 2003-2003 | 1 | |
| 1 | 12791689 Washer fluid reservoir 2003-2003 | headlamp washers | 1 | |
| 2 | 12785527 12801969 Filler pipe 2003-2003 | 1 | |
| 2 | 12801969 Filler pipe 2003-2003 | 1 | |
| 2A | 12788573 12767700 Cover 2003-2003 | 1 | |
| 4 | 12788695 90508709 Pump, washer-reservoir 2003-2003 | Windscreen washer | 1 | |
| 4 | 12788695 90508709 Pump, washer-reservoir 2003-2003 | Headlamp washer | 1 | |
| 5 | 12787616 9186037 Bushing 2003-2003 | 2 | |
| 6 | 12788696 Level guard | 1 | |
| 7 | 12787615 Bushing | 1 | |
| 8 | 90582110 Snap-on coupling 2003-2007 | 1 | |
| 8A | 12787618 Snap-on coupling | 1 | |
| 9 | 92151161 Hose clamp 2003-2003 | X | |
12791826 Hose 2003-2005 | L = 10 000 MM | X | ||
| 10 | Hose 2003-2003 | L = 580 MM | 1 | |
| 11 | Hose 2003-2003 | L = 1570 MM | 1 | |
| 12 | Hose 2003-2003 | L = 470 MM | 1 | |
| 13 | 9114696 Junction pipe 2003-2003 | 1 | |
| 14 | 12788574 O-ring 2003-2003 | 1 | |
| 25 | 12785533 Headlamp washer 2003-2003 | LH | 1 | |
| 25 | 12785534 Headlamp washer 2003-2003 | RH | 1 | |
| 26 | 92150385 92153219 Screw -2003 | 2 | |
| 26 | 92150384 92153219 Screw 2003-2003 | 2 | |
| 27 | 12791590 12791591 O-ring interior | 1 | |
| 28 | 12791591 O-ring outer | 1 | |
12788576 Hose L = 10 000 MM | X | ||
| 30 | Hose L = 1285 MM | 1 | |
| 31 | Hose L = 715 MM | 1 | |
| 32 | Hose 2003-2003 | L = 365 MM | 2 | |
| 34 | 12787619 Snap-on coupling | 1 | |
| 35 | 12788577 Snap-on coupling | 1 | |
| 36 | 92152278 Clip | 1 | |
| 37 | 12788630 12778850 Nozzle 2003-2007 | LH | 1 | |
| 37 | 12788630 12778850 Nozzle 2003-2007 | Centre | 1 | |
| 37 | 12788631 12778849 Nozzle 2003-2007 | RH | 1 |
